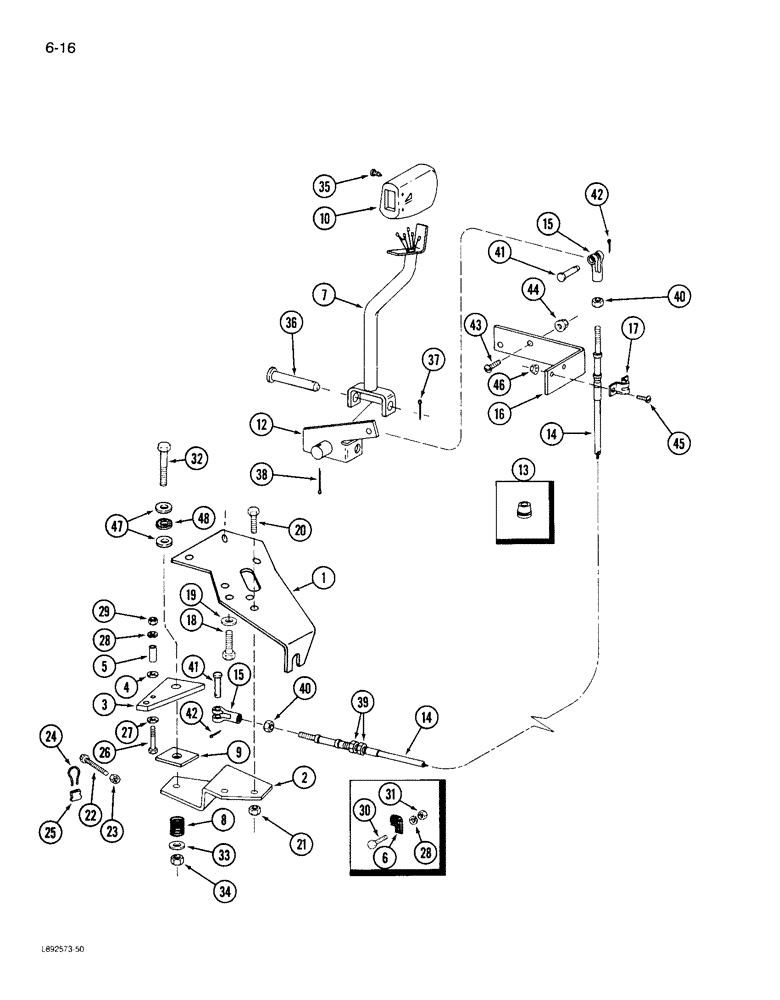

Запчасти Case IH 1822 (6-16) - PROPULSION CONTROLS (03) - POWER TRAIN

1

1980151C1

SUPPORT

- cable

1шт.

2

1270011C3

SUPPORT

- lever

1шт.

3

219716C2

BAR

LEVER - pump

1шт.

4

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, hardened (1822 Picker uses 1)

2шт.

5

U13039

SPACER

- pipe, 1/4 x 1 inch (1844 Picker)

1шт.

5

588736R1

SPACER

- pipe, 1/4 x 13/16 inch (1822 Picker)

1шт.

6

98959R1

CLAMP

- cable

1шт.

7

245981C1

COVER

LEVER - propulsion

1шт.

8

28395H

SPRING

- tension, arm

1шт.

9

150627C1

FRICTION WASHER

- friction, control arm

1шт.

10

1301180C92

HANDLE

- control

1шт.

12

1267441C1

SUPPORT ASSY.

SUPPORT - lever

1шт.

13

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

- cable

1шт.

14

1329384C1

CABLE

- control

1шт.

15

144242

CLEVIS

- cable

2шт.

16

193281C1

ANGLE

- cable mounting

1шт.

17

195593C1

CLAMP

- cable

1шт.

18

101896R1

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 8, Full Thd

(1822 Picker) Hex, 3/8"-16 x 1 1/8", G8, Full Thd

3шт.

18

113-363

BOLT,Hex, 7/16" - 14 x 1-1/8", Gr 5, Full Thd

- hex, 7/16 NC x 1-1/8 inch (1844 Picker)

3шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") (1822 Picker) 3/8", SAE

3шт.

19

496-21047

WASHER

- flat, 15/32 x 59/64 x 3/64 inch (1844 Picker)

3шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

21

120377

NUT,3/8" - 16, Gr 5

2шт.

22

219618C2

BOLT

BOLT - hex drilled 5/16 NC x 2-1/4 inch

1шт.

23

NLS

NO LONGER SERVICED

- hex jam, 5/16 inch NC

1шт.

24

678026C1

ELECTRICAL WIRE

WIRE - lock

1шт.

25

687459C1

ELECTRICAL WIRE

SEAL - lock

1шт.

26

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex, 1/4 NC x 2-1/4 inch

1шт.

27

120392

WASHER,1/4", SAE

- flat, 5/16 x 47/64 x 3/64 inch

1шт.

28

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

29

86625061

NUT,1/4"-20, GB

NUT - hex, 1/4 inch NC

1шт.

30

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

31

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

32

113-329

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 5

- hex, 7/16 NC x 3-1/4 inch

1шт.

33

25846R1

WASHER

- flat, 15/32 x 59/64 x 3/32 inch

1шт.

34

131-667

NUT,7/16"-14, GB

NUT - hex lock, 7/16 inch NC

1шт.

25

28002R1

HEX SOC SCREW,#6 - 32 x 1/2"

SCREW - tapping, No 6 x 1/2 inch

3шт.

36

28258R1

CLEVIS PIN,1/2" x 3 7/16'"

PIN - clevis, 1/2 x 3-7/16 inch

1шт.

37

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

38

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

39

124920

JAM NUT,Jam, 5/16"-24, G5

2шт.

40

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.

41

16616R1

CLEVIS PIN,5/16" x .940"

PIN - clevis, 5/16 x 15/16 inch

2шт.

42

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

43

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted, 5/16 NC x 3/4 inch

2шт.

44

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

2шт.

45

937875R1

SCREW,Serr, 1/4" - 20

- slotted, 1/4 NC x 3/4 inch

2шт.

46

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex, 1/4 inch NC

2шт.

47

26272R1

WASHER,.469" x 59/64" x .105", HDN

- flat, 15/32 x 59/64 x 1/16 inch

2шт.

48

159688R91

THRUST BEARING

BEARING - roller, arm

1шт.
