Запчасти Case IH 1822 (6-06) - FAN DRIVE HOISING PULLEY AND HYDROSTATIC PUMP DRIVE PLATE (03) - POWER TRAIN

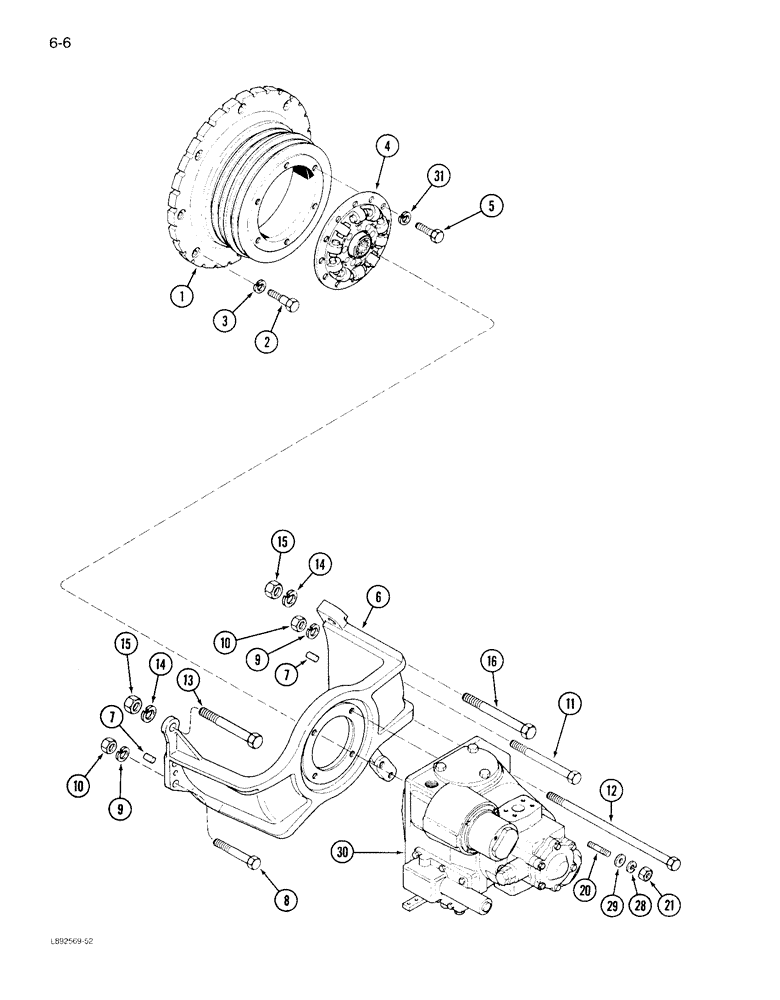

Схема запчастей Case IH 1822 - (6-06) - FAN DRIVE HOISING PULLEY AND HYDROSTATIC PUMP DRIVE PLATE (03) - POWER TRAIN
14
15
13
11
15
1
20
28
9
7
21
30
6
29
4
9
8
16
14
10
5
7
2
10
12
3
31

Артикул

Название

Примечание

Количество

1

1338629C1

PULLEY

- drive, fan

1шт.

2

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

8шт.

3

366862C1

LOCK WASHER,3/8"

3/8"

8шт.

4

1288885C1

LARGE PLATE

PLATE - drive (1822 Cotton Picker)

1шт.

4

131366C1

LARGE PLATE

PLATE - drive (1844 Cotton Picker)

1шт.

5

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

6

1982274C1

HOUSING

ASSEMBLY - pulley

1шт.

7

19904R1

DOWEL,1/2" x 1"

PIN - dowel, hardened

2шт.

8

113-432

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

2шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

11

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

12

16099R1

BOLT,Hex, 1/2" - 13 x 11", Gr 5

- hex, 1/2 NC x 11 inch

1шт.

13

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

1шт.

14

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

15

129-108

NUT,3/4"-10, G5

2шт.

16

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

20

1338122C1

STUD

- pump retaining, 1/2 inch NC

4шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

28

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

29

26273R1

WASHER

- flat, hardened

4шт.

30

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic (See Page 6-19 and 6-25)

1шт.

31

492-11038

LOCK WASHER,3/8"

6шт.
