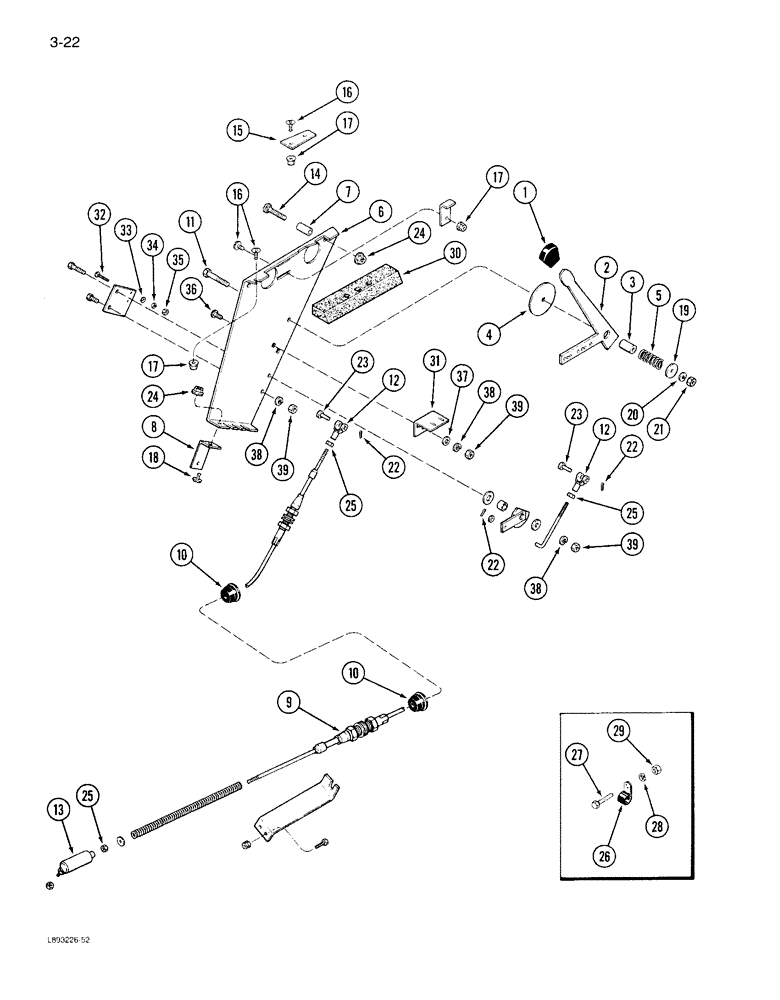

Запчасти Case IH 1822 (3-22) - THROTTLE CONTROLS, 1822 COTTON PICKER (02) - FUEL SYSTEM

1

120197C2

KNOB

- throttle lever

1шт.

2

1301183C94

LEVER ASSY.

LEVER - control, throttle

1шт.

3

154397C1

SPACER,5/8" Tube x 1 1/4"

- 5/8 x 1-1/4 inch tube

1шт.

4

941133C1

WASHER

- throttle lever

1шт.

5

P022

CARTON BOX

SPRING - throttle control lever

1шт.

6

1977092C4

SUPPORT

- throttle control

1шт.

7

K11064

SPACER,3/8" Pipe x 1 1/4"

- pipe, 3/8 x 1-1/4 inch

2шт.

8

1301242C1

BRACKET

ANGLE - throttle support

1шт.

9

1329385C1

CABLE

ASSEMBLY - throttle

1шт.

10

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- throttle cable grain tank

2шт.

11

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

12

110322

CLEVIS - No. 10-32 x 1-9/16 inch

1шт.

13

1977009C3

BALL JOINT

JOINT ASSEMBLY - ball

1шт.

14

12-632

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G2

2шт.

15

1329861C2

PLATE

- throttle control

1шт.

16

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss, 1/4 NC x 1/2 inch

5шт.

17

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch

5шт.

18

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss, 3/8 NC x 3/4 inch

2шт.

19

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

1шт.

20

492-11038

LOCK WASHER,3/8"

1шт.

21

425-106

NUT,3/8"-16, Cl 5

1шт.

22

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

23

20155R1

CLEVIS PIN,3/16" x .719"

PIN - clevis, 3/16 x 23/32 inch

2шт.

24

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

3шт.

25

225-14210

NUT,#10-32

3шт.

26

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- retaining, coated

2шт.

27

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

28

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

29

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

30

1288795C2

SEAL

- throttle

1шт.

31

1982255C1

ANGLE

- compactor switch

1шт.

32

440-10620

SCREW,Phillips Drive, Pan HD, #6 - 32 x 1-1/4"

- machine, pan head, No. 6 x 1-1/4 inch

4шт.

33

495-31016

WASHER,#6

8шт.

34

492-11006

LOCK WASHER,#6

Washer, Lock, #6

4шт.

35

225-14106

NUT,#6-32

4шт.

36

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

37

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

38

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

39

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.
