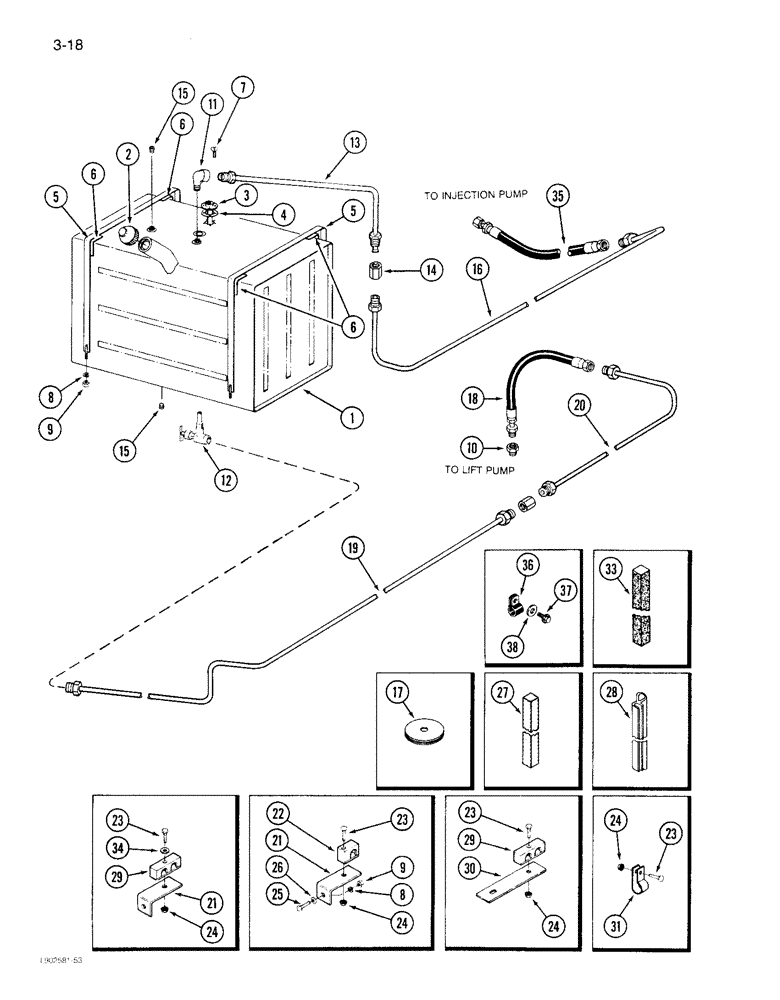

Запчасти Case IH 1822 (3-18) - FUEL TANK AND LINES, 1822 COTTON PICKER (02) - FUEL SYSTEM

1

1339069C3

FUEL TANK

TANK ASSEMBLY - fuel, 89 gallon

1шт.

2

23995DC

FILLER CAP

CAP - fuel tank filler, vented

1шт.

3

121810C1

ELECTRICAL GAUGE

GAUGE - sending unit

1шт.

4

168515C1

GASKET,3.05mm Thk

- sending unit

1шт.

5

1278531C1

STRAP

- fuel tank

2шт.

6

NSS

NOT SOLD SEPARAT

STRIP - tank support lining, 9 inch (Order 990541R1, Serial Range: cut-length)

8шт.

990541R1

FIXING STRIP

STRIP - lining, 50 foot roll

1шт.

7

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

8

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

9

120376

NUT,5/16"-18, G5

6шт.

10

442323

CONNECTOR, ELEC

CONNECTOR - inverted flared tube, 3/8 inch (If equipped)

1шт.

11

193004

ELBOW

- inverted flared tube, 90 deree, 3/8 inch

2шт.

12

390069R91

SHUT-OFF VALVE

VALVE ASSEMBLY - fuel shut-off

1шт.

13

87746C3

FUEL TUBE,0.375" OD

TUBE ASSEMBLY - fuel tank return

1шт.

14

442338

UNION

- inverted flared tube, 3/8 inch

2шт.

15

444693

PLUG,Hex Soc, 1/4"-18, Brass

- hex socket pipe, 1/4-18 inch

2шт.

16

1982257C2

FUEL TUBE,0.375" OD

TUBE ASSEMBLY - fuel return

1шт.

17

1329460C1

GROMMET

- tube

1шт.

18

1329284C1

HOSE

ASSEMBLY - fuel

1шт.

19

1338814C2

FUEL TUBE

TUBE ASSEMBLY - supply, fuel tank

1шт.

20

1338813C3

TUBE

ASSEMBLY - supply, fuel

1шт.

21

1329408C1

SUPPORT

- fuel line angle (If equipped)

2шт.

22

183821C1

CLAMP

- tube (Single)

1шт.

23

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

6шт.

24

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange lock, 1/4 inch NC

6шт.

25

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

26

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

27

NSS

NOT SOLD SEPARAT

STRIP - fuel tank foam, 18 inch (Order 73215C1, Serial Range: cut-length)

2шт.

27

NSS

NOT SOLD SEPARAT

STRIP - fuel tank foam, 22 inch (Order 73215C1, Serial Range: cut-length)

2шт.

73215C1

GASKET

STRIP - foam, 4 foot length

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL - fuel tank, 135 mm (Order 1263038C1, Serial Range: cut-length)

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL - fuel tank, 457 mm (Order 1263038C1, Serial Range: cut-length)

1шт.

1263038C1

SEAL,7620mm L

- bulk, 25 foot roll

1шт.

29

183825C1

CLAMP

- tube (Double)

4шт.

30

1329409C1

SUPPORT

- fuel line strap (If equipped)

1шт.

31

299403C1

CLAMP

- coated closed, 3/8 inch diameter (If equipped)

1шт.

33

204023C1

SEALING STRIP

- strip, 46-1/2 inch

2шт.

34

195-2012

WASHER

- flat, 5/16 x 1-3/4 x 51/64 inch (If equipped)

2шт.

35

1982258C1

HOSE

ASSEMBLY - return, fuel

1шт.

36

299413C1

CLAMP

- hose, closed coated

1шт.

37

J900631

FLANGE BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 25 mm

1шт.

38

20893R1

WASHER

- flat, 11/32 x 1 x 7/64 inch

1шт.
