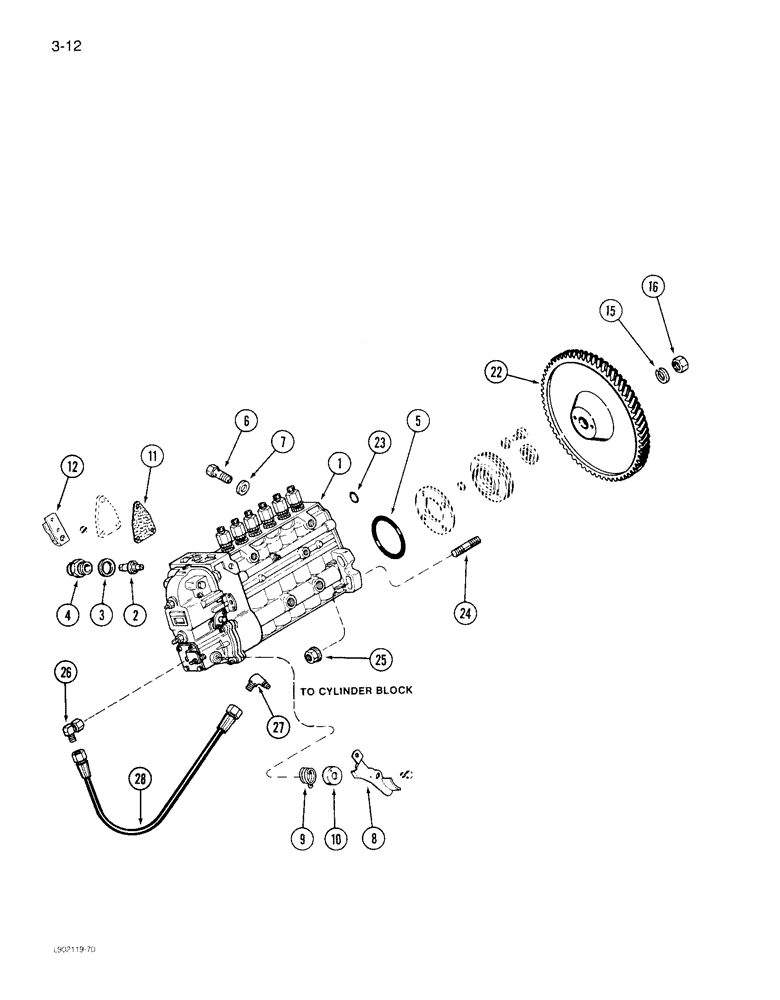

Запчасти Case IH 1822 (3-12) - FUEL INJECTION PUMP AND DRIVE 6TA-830 ENGINE (02) - FUEL SYSTEM

JR915691

REMAN-INJECTION PUMP

PUMP ASSEMBLY - injection, remanufactured (North America Only)

1шт.

JC915691

PUMP

RETURN NUMBER - use this part number to return pump core for credit

1шт.

1

J915691

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new

1шт.

2

A77720

PIN

- timing

1шт.

3

933222R1

SEALING WASHER,M18 x 22 x 1.5

Plug M18 x 22 x 1.5

1шт.

4

J912888

PLUG

- timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

- seal

1шт.

6

J912886

VALVE

- overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

1шт.

8

J914094

LEVER

- pump shutoff

1шт.

9

J912890

SPRING

- lever shutoff

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

A46322

GASKET

- pump mounting

1шт.

12

1808728C1

LEVER

- control

1шт.

REF#12 THE SCREW USED IN LEVER IS 1808728C1

1шт.

15

J912895

LOCK WASHER

- lock

1шт.

16

A41852

LOCK NUT

- hex lock

1шт.

22

J912614

GEAR

- fuel pump, I.D. of gear is .78

1шт.

23

J910501

O-RING

- oil port

1шт.

24

J915036

STUD

- pump mounting, 55 mm (2-5/32 in)

4шт.

25

J902662

FLANGE NUT

- hex flange, 10 mm

4шт.

26

J915172

FITTING

ELBOW - pump lubrication

1шт.

27

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

1шт.

28

J906747

HOSE,6.35mm ID x 508mm L

Lubrication 508.00 mm, SAE 45

1шт.
