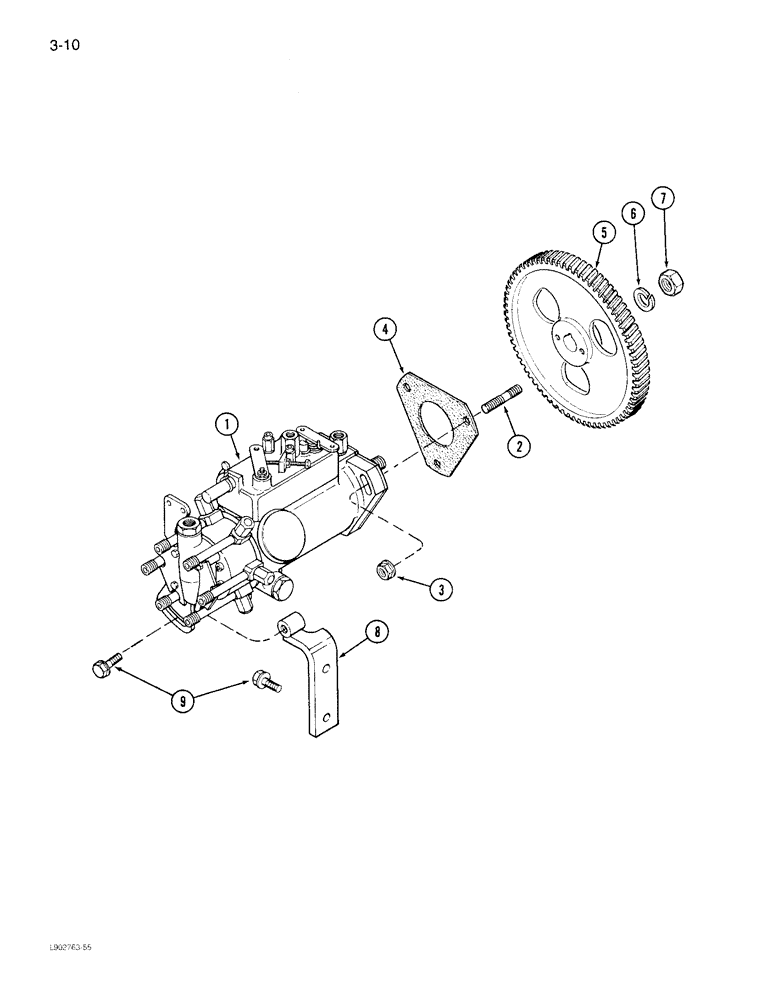

Запчасти Case IH 1822 (3-10) - FUEL INJECTION PUMP AND DRIVE 6TA-590 ENGINE (02) - FUEL SYSTEM

1

J915155

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new

1шт.

1

JR915155

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured

1шт.

1

JC915155

CORE-INJECTION PUMP

Return Number - injection pump (Use this part number to return pump core for credit)

1шт.

2

J902501

STUD

STUD - pump mounting, 8 x 48 mm

3шт.

3

J900589

NUT

NUT - hex flange, 8 mm

8шт.

4

J914389

GASKET

GASKET - pump mounting

1шт.

5

J912885

PINION

GEAR - pump drive (Replaces J914912)

1шт.

6

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

7

J903738

NUT

NUT - hex, 14 mm

1шт.

8

J905387

BRACE

BRACE - fuel pump

1шт.

9

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 20 mm

3шт.
