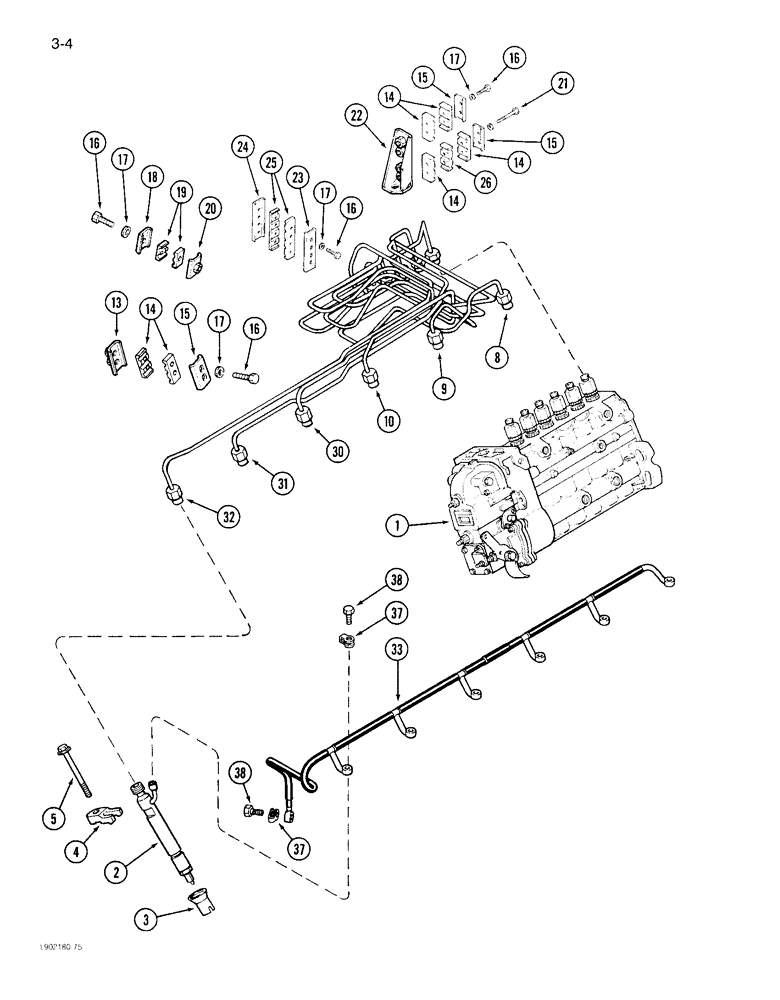

Запчасти Case IH 1822 (3-04) - FUEL INJECTION SYSTEM 6TA-830 ENGINE (02) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
PUMP ASSEMBLY - injection, fuel (See Page 3-13)
1шт.
2
REF
INSTRUCTION
INJECTOR ASSEMBLY - fuel (See Page 3-17)
6шт.
3
J909886
SEAL,16.9mm ID x 22mm OD x 38mm L
- sleeve, injector
6шт.
4
J910279
CLAMP
- injector
6шт.
5
845-8080
BOLT,Hvy Hex, M8 x 80mm, Cl 8.8
- heavy hex flange, 8 mm - 1.25 x 80 mm
6шт.
8
J910693
FUEL TUBE,2 mm ID x 6.4 mm OD x 915.6 mm L
TUBE ASSEMBLY - fuel, No. 1 cylinder
1шт.
9
J910695
FUEL TUBE,2 mm ID x 6.4 mm OD x 915.6 mm L
TUBE ASSEMBLY - fuel, No. 2 cylinder
1шт.
10
J910697
INJECTION PIPE,2 mm ID x 6.4 mm OD x 915.6 mm L
TUBE ASSEMBLY - fuel, No. 3 cylinder
1шт.
13
J917716
BRACE
- sypply tube (Replaces J907505)
1шт.
14
J917747
CLAMP
ISOLATOR - tube (Replaces J914339)
6шт.
16
CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8
SCREW, (Replaces J903609) Hex Hd, M5 x .8 x 20, w/LW
9шт.
17
J903723
WASHER
- flat, 6 x 10 x 1 mm
11шт.
20
J917717
BRACE
- tube (Replaces J907546)
1шт.
21
J917713
SCREW,Pan, #6 - 32 x 3/8", Gr 2
BOLT - hex retaining (Replaces J910037)
2шт.
22
J917776
BRACE
BRACKET - tube (Replaces J910685)
1шт.
23
J910686
BRACE
- tube retaining
1шт.
24
J917740
BRACE
- tube retaining (Replaces J910687)
1шт.
25
J917749
CLAMP
ISOLATOR - tube (Replaces J914341)
2шт.
30
J911226
FUEL TUBE,2 mm ID x 6.4 mm OD x 915.6 mm L
TUBE ASSEMBLY - fuel, No. 4 cylinder
1шт.
31
J911228
FUEL TUBE,2 mm ID x 6.4 mm OD x 915.6 mm L
TUBE ASSEMBLY - fuel, No. 5 cylinder
1шт.
32
J911230
FUEL TUBE
TUBE ASSEMBLY - fuel, No. 6 cylinder
1шт.
33
J915695
MANIFOLD
ASSEMBLY - drain, fuel
1шт.
38
J905307
BANJO BOLT,M6 x 1 x 14.30mm
BOLT, BANJO, , Connector M6 x 1 x 14.3
7шт.
Выбрано товаров: 28
