(2-90) - ENGINE SUPPORTS 1822 COTTON PICKER

Запчасти Case IH 1822 (2-90) - ENGINE SUPPORTS 1822 COTTON PICKER (01) - ENGINE

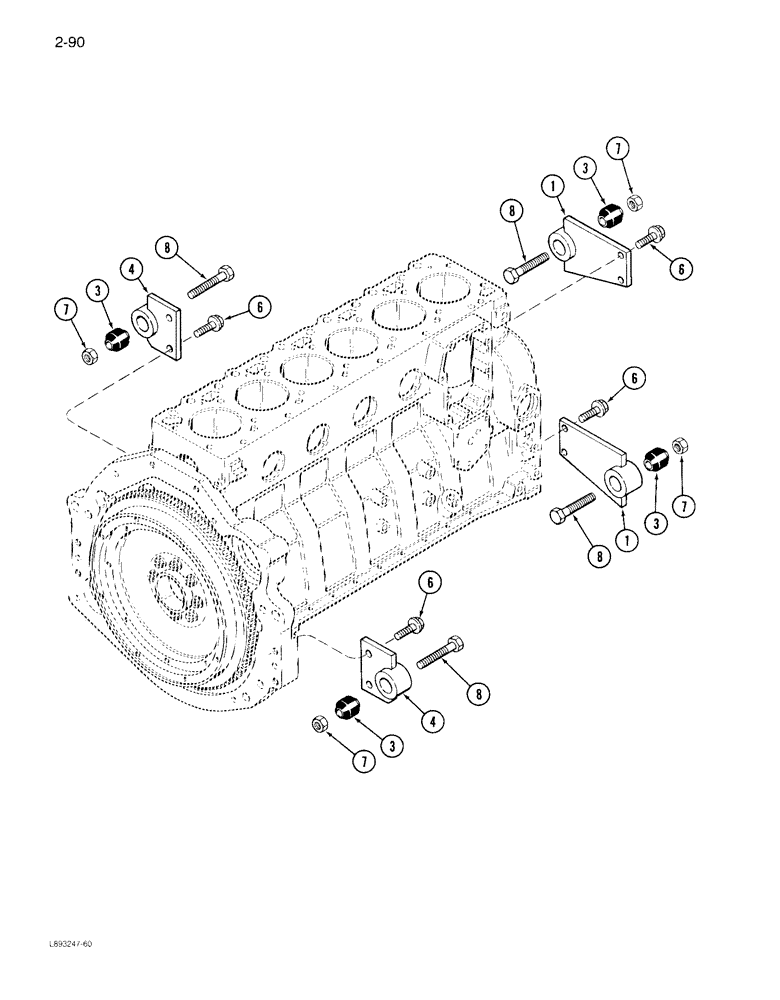

Схема запчастей Case IH 1822 - (2-90) - ENGINE SUPPORTS 1822 COTTON PICKER (01) - ENGINE
1
6
7
6
4
3
3
7
3
8
3
4
1
8
6
8
6
8
7
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1315693C2

SUPPORT

- engine, fan end

2шт.

3

672870R1

BUSHING

- engine support rubber

4шт.

4

1260140C3

SUPPORT

- engine, flywheel end

2шт.

6

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 mm - 1.75 x 40 mm, Cl 10.9

8шт.

7

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

8

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

4шт.
