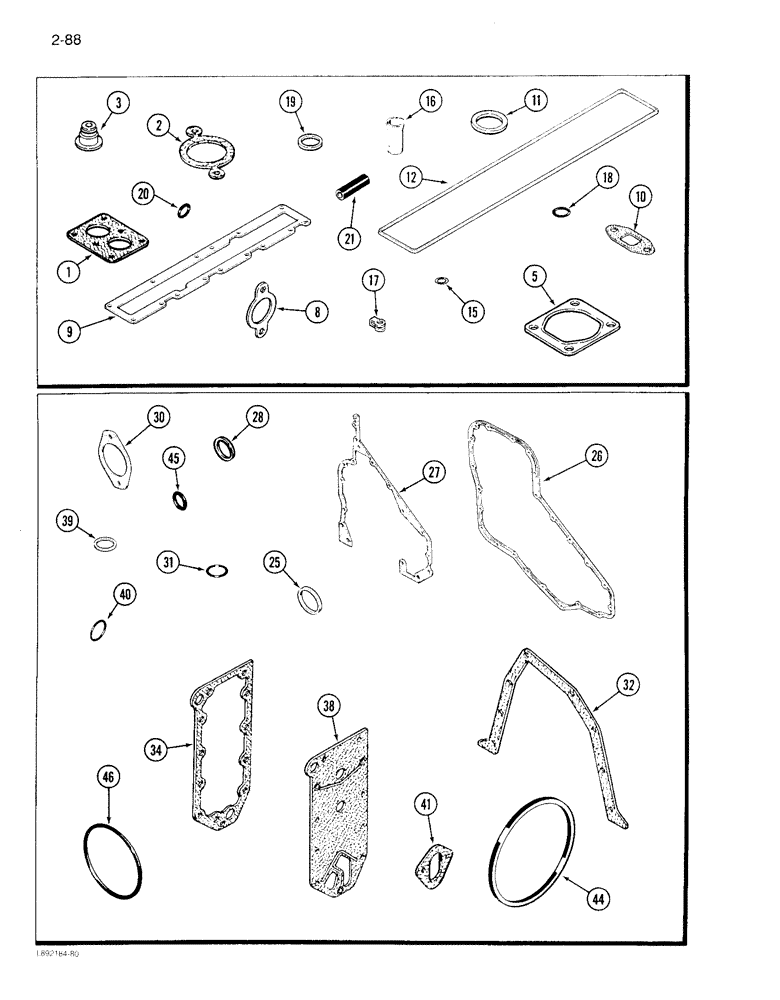

Запчасти Case IH 1822 (2-88) - ENGINE GASKET KITS 6TA-830 ENGINE VALVE GRIND, CYLINDER BLOCK (01) - ENGINE

A77678

GASKET KIT

- valve grind (See Note A) (Replaces A77630)

1шт.

1

J914310

GASKET,0.8mm Thk

- thermostat housing

1шт.

2

A77705

GASKET

- outlet tube, water (Replaces J914309)

1шт.

3

J915707

SEAL

- intake and exhaust valve stem and guide (Replaces J912549 and J912550)

12шт.

5

J911941

GASKET

- mounting, turbocharger

1шт.

8

J911942

GASKET

- manifold, exhaust

6шт.

9

J914311

MANIFOLD GASKET

- cover, intake manifold

1шт.

10

J914388

GASKET

- drain tube, turbocharger

1шт.

11

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - seal, oil fill cap

1шт.

12

J905449

SEAL,7.179mm W x 2090mm L

SEAL - cover, rocker

1шт.

15

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

16

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

- injector

6шт.

17

J903380

SEAL

- connector, banjo

6шт.

18

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- breather tube

1шт.

19

J906659

SEAL

- injection nozzle

6шт.

20

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Thermostat housing filter shutoff (Replaces A29197) -111, 70 Duro, .424" ID x .103" Thk

1шт.

21

J915040

HOSE

- breather, 3/4 ID x 2 inch

1шт.

A77718

GASKET KIT

- cylinder block (See Note B) (Replaces A77581)

1шт.

25

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover, front, cylinder block

1шт.

26

J917779

GASKET,0.98mm Thk

- cover, gear (Replaces J913429), cylinder block

1шт.

27

J914303

SEAL

GASKET - housing, gear, cylinder block

1шт.

28

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING, rectangular (Replaces J914092), cylinder block

1шт.

30

J913288

SEAL

GASKET - cover, accessory drain, cylinder block

1шт.

31

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - mounting, water pump, cylinder block

1шт.

32

J914301

GASKET

- rear retainer, cylinder block

1шт.

34

J918174

GASKET,0.71mm Thk

- cooler core (Replaces J914307), cylinder block

1шт.

38

J914308

GASKET

- cover, oil cooler, cylinder block

1шт.

39

J901798

SEALING WASHER

WASHER - sealing, regualtor plug, cylinder block

1шт.

40

J913994

O-RING

- sealng, timing pin, cylinder block

1шт.

41

J914304

GASKET

- mounting, lift pump, cylinder block

1шт.

44

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - rear seal cover, cylinder block

1шт.

45

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Cylinder block -212, 70 Duro, .859" ID x .139" Thk

1шт.

46

J917737

O-RING,118.1 mm ID x 4 mm

- sleeve (Replaces J907177), cylinder block

6шт.
