Запчасти Case IH 1822 (2-86) - ENGINE GASKET KITS 6TA-590 ENGINE VALVE GRIND KIT (01) - ENGINE

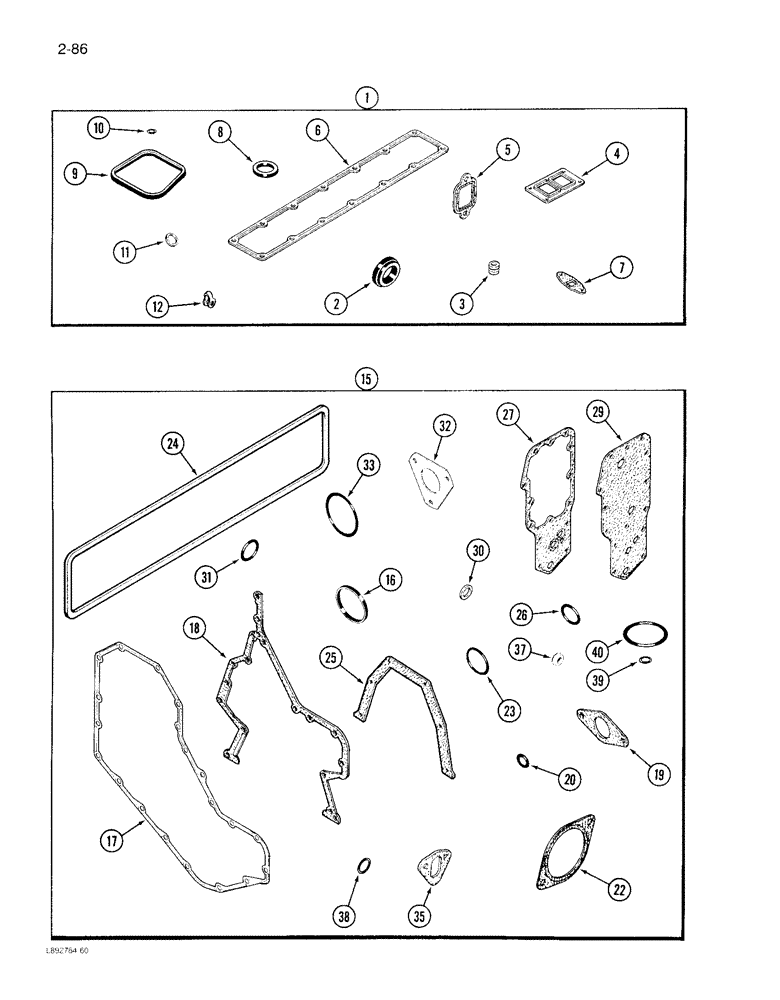

Схема запчастей Case IH 1822 - (2-86) - ENGINE GASKET KITS 6TA-590 ENGINE VALVE GRIND KIT (01) - ENGINE
9
16
18
22
12
24
29
10
1
27
20
8
38
17
15
33
19
6
35
7
23
39
37
32
2
5
25
3
40
26
4
11
31
30

Артикул

Название

Примечание

Количество

1

A77675

GASKET KIT

- valve grind (See Note A) (Replaces A77493)

1шт.

2

J903301

GASKET

- thermostat

1шт.

3

J901097

SEAL

- valve stem

12шт.

4

J901356

GASKET,0.5mm Thk

- turbocharger mounting

1шт.

5

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

6

J914029

GASKET

- intake manifold

1шт.

7

J914388

GASKET

- drain tube, turbocharger

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap

1шт.

9

J902666

GASKET

- cover, rocker arm

6шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

11

J900808

SEAL

- injector

4шт.

12

J903380

SEAL

- connector, banjo

4шт.

15

A77674

GASKET KIT

- engine block (See Note B) (Replaces A77641), cylinder

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover, turbocharger, cylinder, block kit

1шт.

17

J914385

GASKET,1.02mm Thk

- front cover, cylinder, block kit

1шт.

18

J916131

GASKET

- gear housing (Replaces J914384), cylinder, block kit

1шт.

19

J905595

GASKET

- pin housing, timingcylinder, block kit

1шт.

20

J913994

O-RING

- timing pin, cylinder, block kit

1шт.

22

J913192

GASKET

- cover plate, accessory, cylinder, block kit

1шт.

23

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

(Replaces 22290R1), Cylinder block kit -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

24

J904776

GASKET

- tappet cover, cylinder, block kit

1шт.

25

J914386

GASKET

- seal retainer, cylinder, block kit

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - water inlet, cylinder, block kit

1шт.

27

J918256

GASKET

- cooler core (Replaces J914387), cylinder, block kit

1шт.

29

J918257

GASKET

- filter head (Replaces J912532), cylinder, block kit

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, filter head, cylinder, block kit

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing, oil filter, cylinder, block kit

1шт.

32

J914389

GASKET

- pump mounting, fuel, cylinder, block kit

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - housing to block (Replaces A157927), cylinder, block kit

1шт.

35

J914304

GASKET

- mounting, fuel pump, cylinder, block kit

1шт.

37

J900267

SEAL

ASSEMBLY - cover bolt, tappet, cylinder, block kit

6шт.

38

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

(Replaces 253070R1), cylinder, block kit -212, 70 Duro, .859" ID x .139" Thk

1шт.

39

J9066955

O-RING - fuel filter stud, cylinder, block kit

1шт.

40

J903546

O-RING

- fuel filter head, 17 mm ID, cylinder, block kit

1шт.

Выбрано товаров: 34
