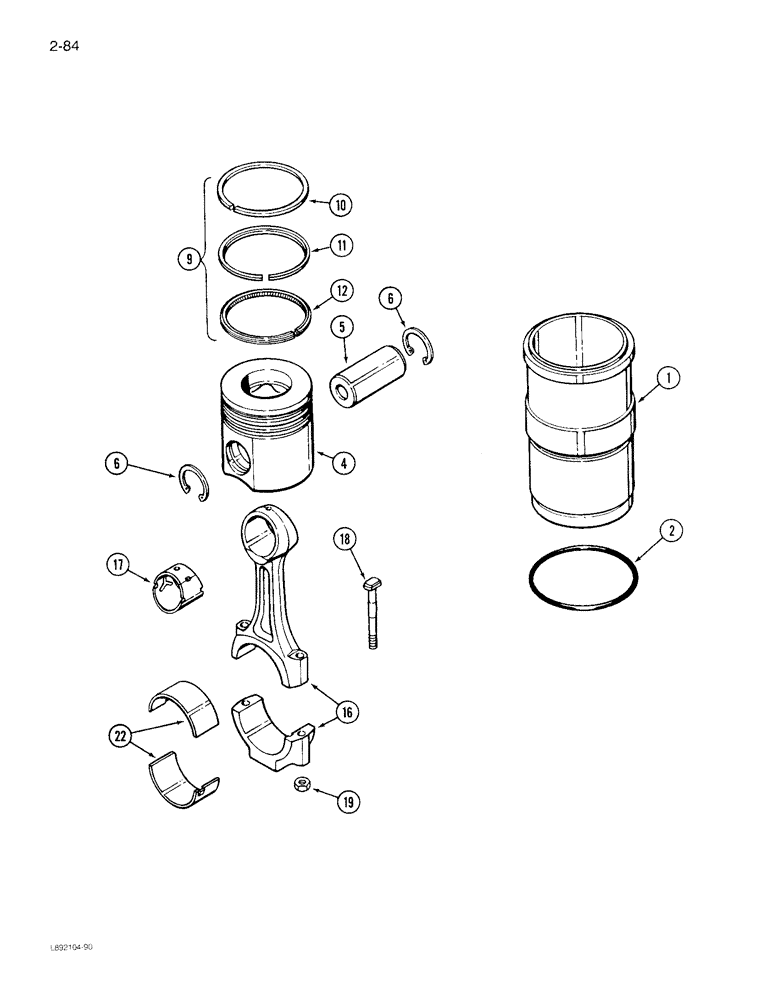

Запчасти Case IH 1822 (2-84) - PISTON AND SLEEVE 6TA-830 ENGINE (01) - ENGINE

A77626

CYLINDER

PISTON AND SLEEVE KIT - engine

1шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston

1шт.

2

J917737

O-RING,118.1 mm ID x 4 mm

- sleeve

1шт.

A77585

PISTON ASSY.

PISTON KIT - engne (Standard)

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder (Stamped 8750)

1шт.

5

J901597

PIN

- piston

1шт.

6

J901996

RING

- retaining

2шт.

9

A77562

PISTON RING SET

RING KIT - piston

1шт.

10

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

12

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

16

JR901383

REMAN-CONNECTING ROD

ROD ASSEMBLY - connecting, remanufactured (North America Only)

6шт.

16

JC901383

CORE-ROD CONNECTING

RETURN NUMBER - use this part number when returning connecting rod for credit

6шт.

16

J901383

CONNECTING ROD

ROD ASSEMBLY - connecting

6шт.

84487529R

REMAN-CONNECTING ROD

1844 S/N JJC0002462 & AFTER, 1822 S/N JJC0012691 & AFTER, Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

17

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

- connecting rod

1шт.

18

J901380

BOLT

- rod, bearing cap, connecting

2шт.

18

J901380

BOLT

- rod, bearing cap, connecting

2шт.

19

J901381

SPECIAL NUT

- hex, rod bolt, connecting

2шт.

22

A77563

BEARING SET

BEARING KIT - rod (Upper and lower standard) connecting

6шт.

22

A77564

BEARING SET

BEARING KIT - rod (Upper and lower 0.25 mm undersize), connecting

6шт.

22

A77565

BEARING SET

BEARING KIT - rod (Upper and lower 0.50 mm undersize), connecting

6шт.

22

A77566

BEARING SET

BEARING KIT - rod (Upper and lower 0.75 mm undersize), connecting

6шт.

22

A77567

BEARING SET

BEARING KIT - rod (Upper and lower 1.0 mm undersize), connecting

6шт.
