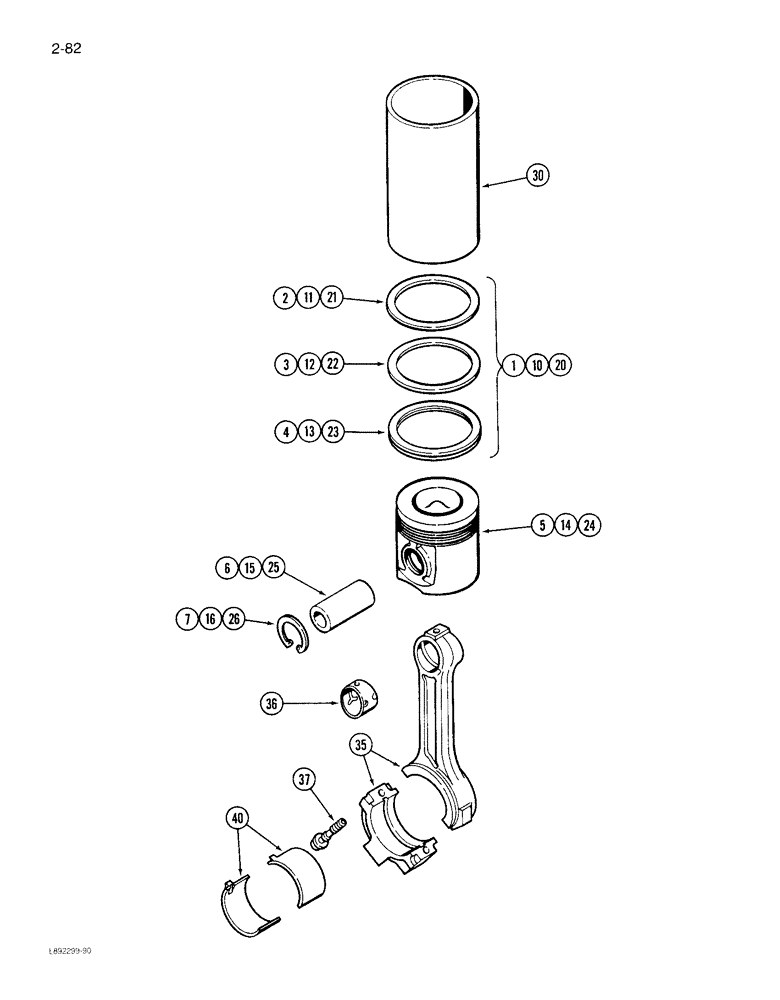

Запчасти Case IH 1822 (2-82) - PISTONS 6TA-590 ENGINE (01) - ENGINE

A77733

PISTON

KIT - engine, standard (Replaces A77518)

6шт.

1

A77727

PISTON RING SET

RING KIT - piston standard (Replaces A77500)

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON - cylinder, standard (Stamped 7156)

1шт.

6

J901793

PISTON PIN

PIN - piston

1шт.

7

J901706

RING

- retainer, pin

2шт.

A77734

PISTON

KIT - engine, 0.5 mm oversize (Replaces A77519)

6шт.

10

A77728

PISTON RING SET

RING KIT - engine, 0.5 mm oversize (Replaces A77501)

1шт.

11

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

12

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

13

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 0.5 mm oversize (Stamped 7157)

1шт.

15

J901793

PISTON PIN

PIN - piston

1шт.

16

J901706

RING

- retainer, pin

2шт.

A77735

PISTON

KIT - engine, 1.00 mm oversize (Replaces A77520)

6шт.

20

A77729

PISTON RING SET

RING KIT - engine, 1.0 mm oversize (Replaces A77502)

1шт.

21

NSS

NOT SOLD SEPARAT

RING - compression (Top)

1шт.

22

NSS

NOT SOLD SEPARAT

RING - compression (Middle)

1шт.

23

NSS

NOT SOLD SEPARAT

RING - oil (Bottom)

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 1.00 mm oversize (Stamped 7158)

1шт.

25

J901793

PISTON PIN

PIN - piston

1шт.

26

J901706

RING

- retainer, pin

2шт.

30

J904166

SLEEVE

LINER - piston (Used only in engne block repair) (When linner is installed, use only A77518 piston kit)

1шт.

35

J901569

ROD, CONNECTING

ROD ASSEMBLY - connecting, new

6шт.

35

JR901569

ROD

Assembly - connecting, remanufactured

6шт.

35

JC901569

CORE-ROD CONNECTING

Return Number - rod (Use this part number to return rod core for credit)

6шт.

35

84145405R

REMAN-CONNECTING ROD

1822 S/N JJC0012691 & AFTER, 1844 S/N JJC0002462 & AFTER, Reman For New PN J901569

6шт.

35

84145405C

CORE-ROD CONNECTING

Return Number

6шт.

35

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

35

JC942581

CORE-ROD CONNECTING

Return Number

6шт.

36

NSS

NOT SOLD SEPARAT

BUSHING - rod, piston pin, connecting

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT - hex special, MJ11 x 1 x 26 mm, connecting rod

2шт.

40

A77465

BEARING SET

BEARING KIT - rod, upper and lower, standard, connecting

6шт.

40

A77466

BEARING SET

BEARING KIT - rod, upper and lower, 0.25 mm undersize, connecting

6шт.

40

A77467

BEARING LINER

BEARING KIT - rod, upper and lower, 0.50 mm undersize, connecting

6шт.

40

A77468

BEARING SET

BEARING KIT - rod, upper and lower, 0.76 mm undersize, connecting

6шт.

40

A77469

BEARING SET

BEARING KIT - rod, upper and lower, 1.00 mm undersize, connecting

6шт.
