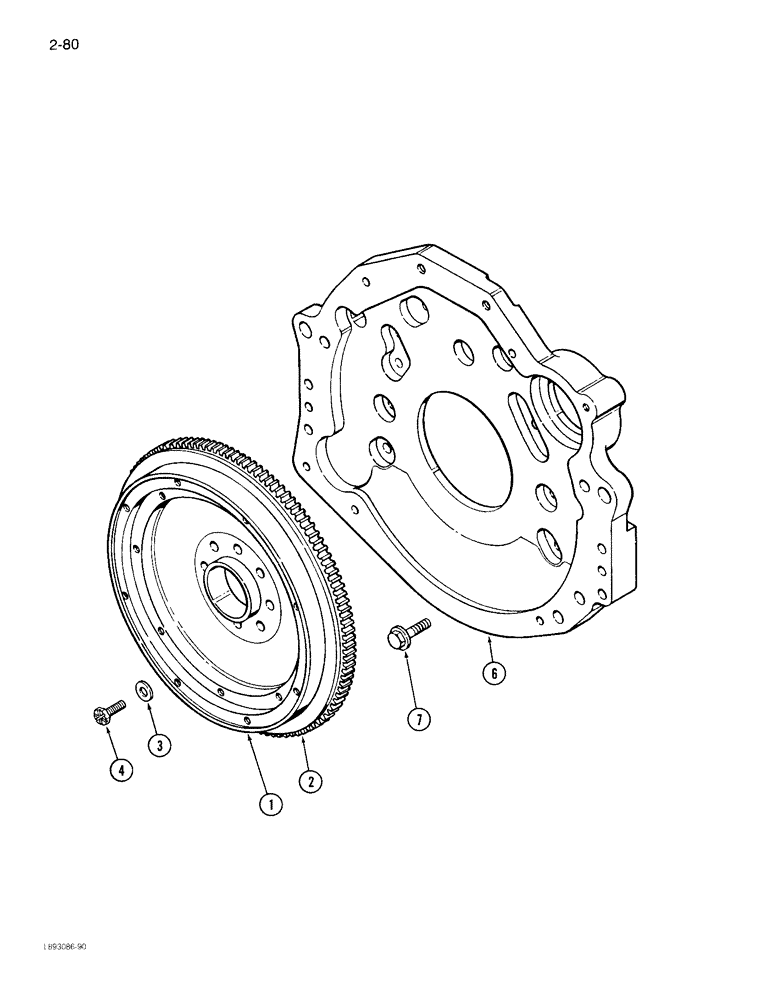

Запчасти Case IH 1822 (2-80) - FLYWHEEL 6TA-830 ENGINE (01) - ENGINE

1

J914433

FLYWHEEL

ASSEMBLY - crankshaft

1шт.

2

J905427

GEAR

- ring, flywheel

1шт.

3

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, flywheel bolt

8шт.

4

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, 12 mm - 1.25 x 32 mm

8шт.

6

J913593

PLATE

- backing

1шт.

7

854-12045

BOLT,Hvy Hex, M12 x 45mm, Cl 10.9

- hex, 12 mm - 1.75 x 45 mm

10шт.
