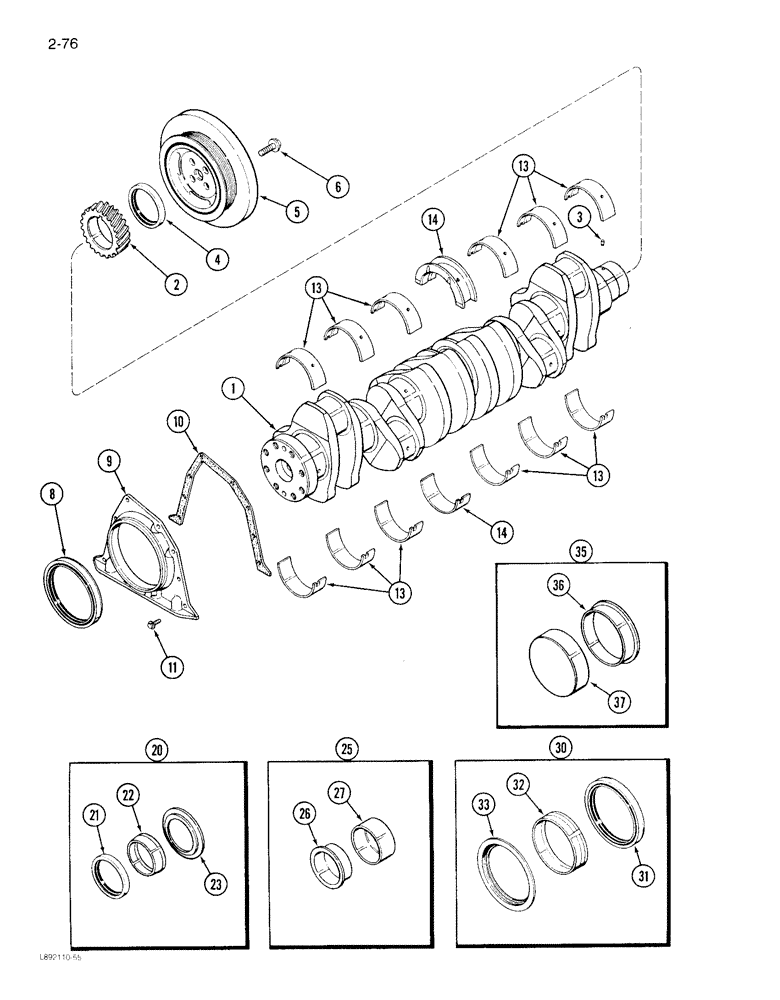

Запчасти Case IH 1822 (2-76) - CRANKSHAFT 6TA-830 ENGINE (01) - ENGINE

1

JR917443

REMAN-CRANKSHAFT

CRANKSHAFT ASSEMBLY - engne, remanufactured (North America Only) (Replaces JR904363)

1шт.

1

JC917443

CORE-CRANKSHAFT

RETURN NUMBER - crankshaft assembly (Use this part number when returning crankshaft for credit) (Replaces JC904363)

1шт.

1

J917443

CRANKSHAFT

ASSEMBLY - engine, new (Replaces J904363)

1шт.

2

J907645

GEAR

- crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, front (Order Ref. 20)

1шт.

58

J914455

DAMPER

PULLEY - damper, vibration

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

- hex flange, 14 x 35 mm

4шт.

8

NSS

NOT SOLD SEPARAT

SEAL - oil, rear (Order Ref. 30)

1шт.

9

J907535

COVER ASSY

RETAINER - seal, rear

1шт.

10

J914301

GASKET

- retainer, rear

1шт.

11

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

13

A77711

BEARING LINER

BEARING KIT - main, upper and lower, standard (Replaces A77569)

6шт.

13

A77712

BEARING LINER

BEARING KIT - main, upper and lower, 0.25 mm undersize (Replaces A77570)

6шт.

13

A77713

BEARING LINER

BEARING KIT - main, upper and lower, 0.50 mm undersize (Replaces A77571)

6шт.

13

A77714

BEARING LINER

BEARING KIT - main, upper and lower, 0.75 mm undersize (Replaces A77572)

6шт.

13

A77715

BEARING LINER

BEARING KIT - main, upper and lower, 1.0 mm undersize (Replaces A77573)

6шт.

13

A77706

BEARING LINER

BEARING KIT - main thrust, upper and lower, standard (Replaces A77574)

1шт.

14

A77707

SET

BEARING KIT - main thrust, upper and lower, 0.25 mm undersize (Replaces A77575)

1шт.

14

A77708

BEARING LINER

BEARING KIT - main thrust, upper and lower, 0.50 mm undersize (Replaces A77576)

1шт.

14

A77709

BEARING LINER

BEARING KIT - main thrust, upper and lower, 0.75 mm undersize (Replaces A77577)

1шт.

14

A77710

BEARING LINER

BEARING KIT - main thrust, upper and lower, 1.0 mm undersize (Replaces A77578)

1шт.

20

J908139

SEAL

KIT - oil, crankshaft front

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

25

J908277

SLEEVE

WEAR SLEEVE KIT - crankshaft front

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

30

J909410

GASKET KIT

SEAL KIT - oil, rear

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

35

J906081

SLEEVE

WEAR SLEEVE KIT - crankshaft rear

1шт.

36

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

37

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
