Запчасти Case IH 1822 (2-66) - CYLINDER BLOCK 6TA-830 ENGINE WITH SIX PISTON COOLING NOZZLES (01) - ENGINE

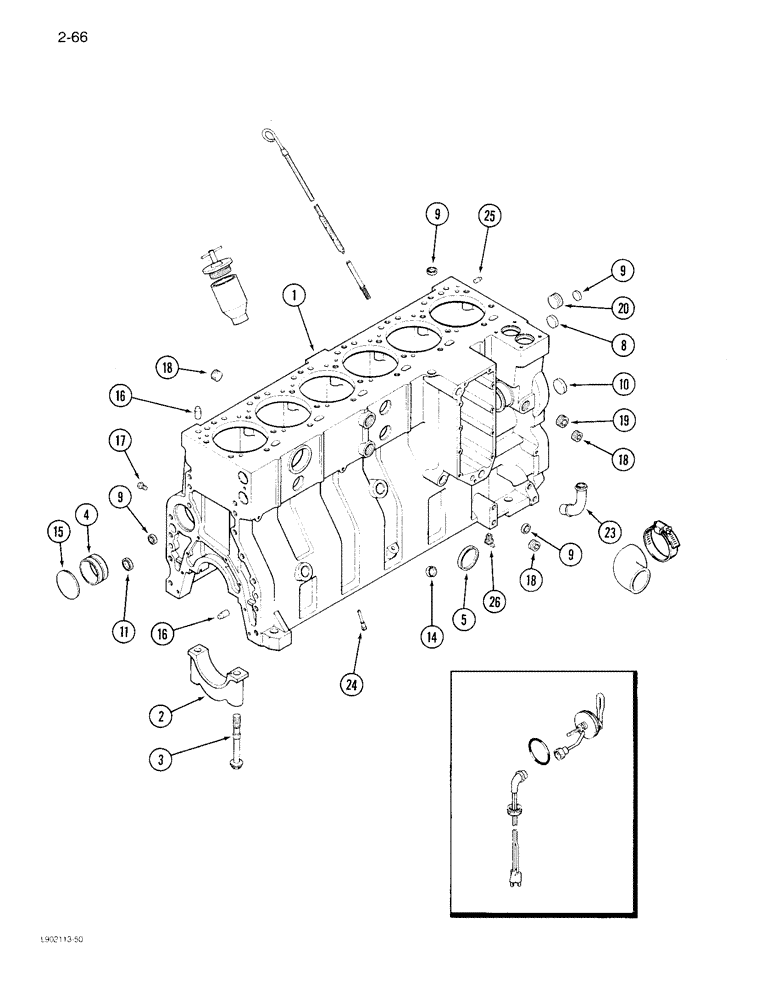

Схема запчастей Case IH 1822 - (2-66) - CYLINDER BLOCK 6TA-830 ENGINE WITH SIX PISTON COOLING NOZZLES (01) - ENGINE
25
3
16
18
15
5
23
18
18
9
19
4
2
10
24
8
9
26
14
20
11
16
1
9
17
9

Артикул

Название

Примечание

Количество

A174188

ENGINE ASSEMBLY

- complete (Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe) (For service order 1989017C1, See Page 2-71)

1шт.

REF

INSTRUCTION

ENGINE ASSEMBLY - basic, new (See Note)

1шт.

JR913779

ENGINE, EXCHANGE

BLOCK ASSEMBLY - short, remanufactured (North America Only)

1шт.

JC913779

SKELETON ENGINE

RETURN NUMBER - engine, short block (Use this number when returning short block for credit)

1шт.

J913779

SKELETON ENGINE

BLOCK ASSEMBLY - short, new (Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings) (Also order J909415 kit)

1шт.

1

JR911898

ENGINE, EXCHANGE

BLOCK ASSEMBLY - stripped, remanufactured (North America Only)

1шт.

1

JC911898

SKELETON ENGINE

RETURN NUMBER - stripped block (Use this number when returning block core for credit)

1шт.

1

J911898

BASIC BLOCK

BLOCK ASSEMBLY - cylinder, stripped (Also order J909415 kit)

1шт.

2

J905397

CAP

- bearing, main

7шт.

3

J906655

BOLT,Flng, M14 x 2 x 128.5mm, Cl 12.9

- hex flange, 14 x 128 mm

14шт.

4

REF

INSTRUCTION

BUSHING - camshaft, See page 2-61

7шт.

5

J900965

PLUG

- expansion, 58 mm OD

1шт.

8

A77586

PLUG

- expansion, 28.9 mm OD

1шт.

9

A77506

PLUG

- expansion, 21 mm O.D.

4шт.

10

J905401

PLUG

- expansion, 35 mm OD

4шт.

J909415

KIT

HARDWARE KIT - block

1шт.

11

A77530

PLUG

- expansion, 1-3/16 inch OD

2шт.

14

A77439

PLUG

- expansion, 22 mm OD

1шт.

15

J901969

PLUG

- expansion, 69 mm OD

1шт.

16

J901846

PIN,12.01mm OD x 24mm L

- dowel

4шт.

17

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 inch PT

6шт.

18

A77429

PLUG

- hex socket pipe, 1/2-18 inch PT

4шт.

19

A77505

PLUG

- hex socket pipe, 3/4-14 inch PT

2шт.

20

A77533

PLUG

- hex pipe, 1 inch PT

1шт.

23

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - drain, oil

1шт.

24

J905928

NOZZLE INJECTION

NOZZLE - piston cooling

6шт.

25

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long

2шт.

26

A77425

DRAIN VALVE

VALVE - drain, coolant

1шт.

Выбрано товаров: 28
