Запчасти Case IH 1822 (2-62) - CYLINDER BLOCK 6TA-590 ENGINE (01) - ENGINE

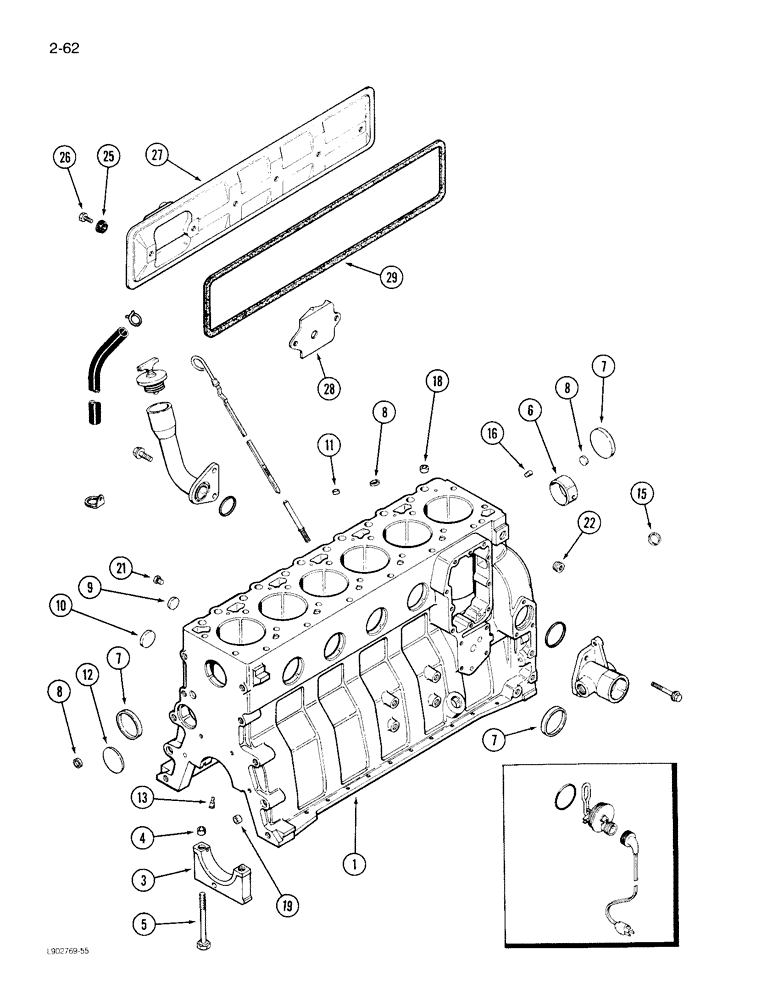

Схема запчастей Case IH 1822 - (2-62) - CYLINDER BLOCK 6TA-590 ENGINE (01) - ENGINE
9
7
26
18
5
29
21
8
7
7
27
10
16
12
11
15
6
3
1
25
4
8
28
22
13
19
8

Артикул

Название

Примечание

Количество

A174299

ENGINE ASSEMBLY

- complete, new (Includes all parts except; starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe)

1шт.

AR174357

ENGINE, EXCHANGE

ENGINE ASSEMBLY - basic, remanufactured

1шт.

AC174357

CORE-ENGINE

Return Part Number use this part number to return engine assembly core for credit

1шт.

A174357

BASIC ENGINE

1шт.

ENGINE ASSEMBLY - basic, new (Includes all aprts except; starter alternator, fan fan belt, fan bracket, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, belt tensioner, turbocharger and aftercooler)

1шт.

1

J908151

SKELETON ENGINE

BLOCK ASSEMBLY - short, new (Includes stripped block pistons, connecting rods and bearings, crankshaft and bearings) (Also order J905813 kit)

1шт.

1

JR933184

REMAN-SHORT ENGINE

Remanufactured

1шт.

1

JC933184

CORE-SHORT ENGINE

Return Part Number

1шт.

1

JR908151

ENGINE, EXCHANGE

BLOCK ASSEMBLY - short, remanufactured

1шт.

1

JC908151

CORE-ENGINE

Return Part Number short block (Use this number when returning cylinder block core for credit)

1шт.

1

106834A2R

REMAN-BASIC ENGINE

Remanufactured

1шт.

1

J905810

CRANKCASE

BLOCK ASSEMBLY - stripped engine (Also order J905813 kit)

1шт.

3

J900967

BEARING CAP

CAP - main bearing

7шт.

4

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

5

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

- bearing cap, special

14шт.

6

REF

INSTRUCTION

BUSHING - camshaft, front (See page 2-59)

1шт.

7

J900965

PLUG

- expansion, 58 mm OD

6шт.

8

J900956

PLUG

- expansion, 18 mm OD

3шт.

9

A77539

PLUG

- expansion, 26 mm

4шт.

J905813

PACKAGE, REPAIR

HARDWARE KIT - block, engine

1шт.

10

J900958

PLUG

- expansion, 32 mm OD

1шт.

11

J900955

PLUG

- expansion, 10 mm OD

2шт.

12

J900687

PLUG

- expansion, (Welch), 60 mm OD

1шт.

13

J901020

NOZZLE CAP

NOZZLE - piston cooling

6шт.

15

A77439

PLUG

- expansin, 22 mm OD

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long

2шт.

18

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

19

J900068

BEARING WASHER

RING - dowel, 18 mm OD

1шт.

21

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 inch PT

2шт.

22

A77429

PLUG

- hex socket pipe, 1/2-14 inch PT

1шт.

25

J900267

SEAL

ASSEMBLY - cover bolt

4шт.

26

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT, Hex Flg, M8 x 16, 8.8, Full Thd

4шт.

27

J911822

COVER

- tappet

1шт.

28

J907586

BAFFLE

- tappet cover

1шт.

29

J904776

GASKET

- tappet cover

1шт.

Выбрано товаров: 35
