Запчасти Case IH 1822 (2-58) - CAMSHAFT 6TA-590 ENGINE (01) - ENGINE

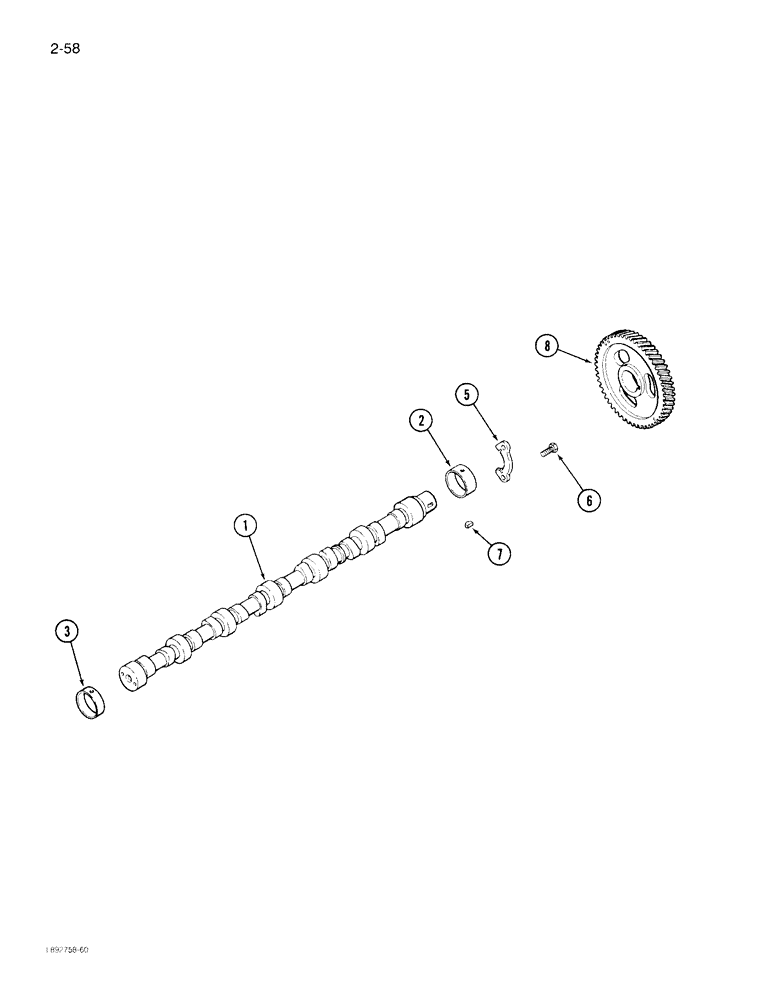

Схема запчастей Case IH 1822 - (2-58) - CAMSHAFT 6TA-590 ENGINE (01) - ENGINE
7
1
5
8
6
3
2

Артикул

Название

Примечание

Количество

1

J914639

CAMSHAFT

- engine (Replaces J907824)

1шт.

J929042R

REMAN-CAMSHAFT

1822 S/N JJC0012691 & AFTER, 1844 S/N JJC0002462 & AFTER, Reman for New P/N J914639

1шт.

J929042C

CORE-CAMSHAFT

Return Number

1шт.

1

J907824

CAMSHAFT

- engine (Order J914639 and J914641)

1шт.

J929042R

REMAN-CAMSHAFT

1822 S/N JJC0012691 & AFTER, 1844 S/N JJC0002462 & AFTER, Reman for New P/N J907824

1шт.

J929042C

CORE-CAMSHAFT

Return Number

1шт.

2

J901306

BUSHING

- camshaft, front, standard

1шт.

2

J904369

BUSHING

- camshaft front, oversize, 58 mm OD

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

- camshaft, intermediate and rear (See note)

6шт.

5

J914641

SUPPORT

- thrust, camshaft (Replaces J901761)

1шт.

6

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

7

J902332

KEY

- retainer, gear

1шт.

8

J907431

CAMSHAFT BEARING

GEAR - camshaft

1шт.

Выбрано товаров: 13
