Запчасти Case IH 1822 (2-54) - CYLINDER HEAD AND VALVE MECHANISM 6TA-590 ENGINE (01) - ENGINE

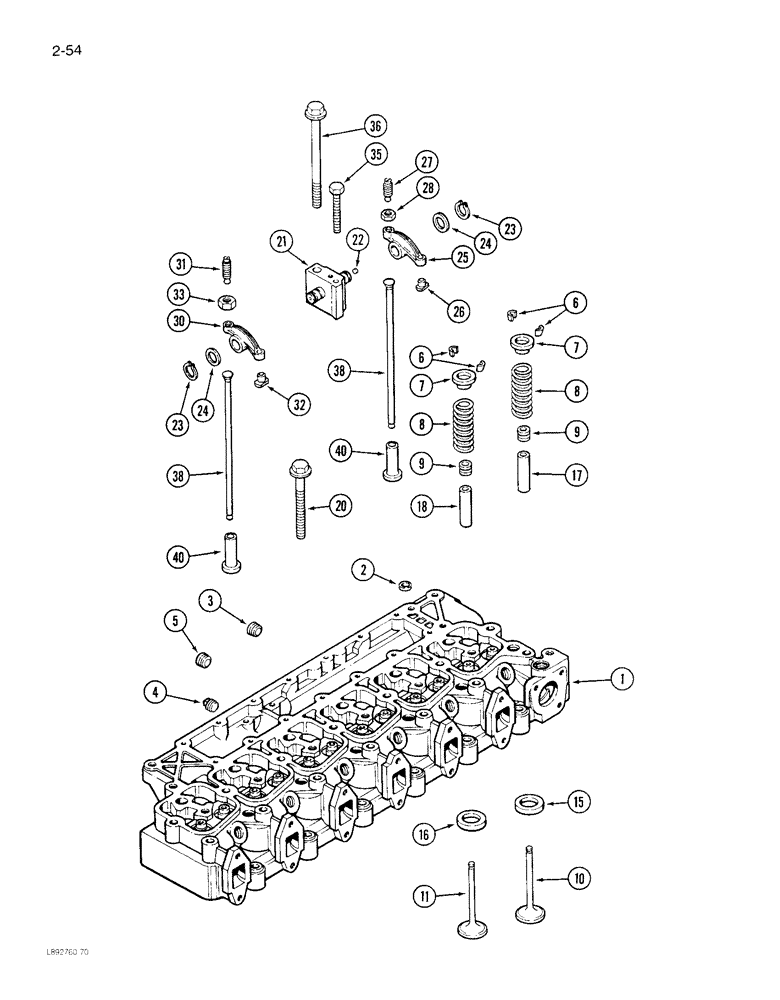

Схема запчастей Case IH 1822 - (2-54) - CYLINDER HEAD AND VALVE MECHANISM 6TA-590 ENGINE (01) - ENGINE
31
9
9
40
8
38
20
18
22
2
6
11
24
35
15
4
38
27
7
32
1
8
23
26
33
10
3
36
40
24
7
25
30
21
23
5
28
16
6
17

Артикул

Название

Примечание

Количество

JR910276

HEAD

ASSEMBLY - cylinder, remanufactured (North America Only)

1шт.

JC910276

CORE-CYLINDER HEAD

RETURN NUMBER - Use this part number when returning cylinder head core for crdit)

1шт.

1

J910276

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new

1шт.

1

J913391

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder

1шт.

2

J902606

PLUG

- expansion, 21 mm OD

4шт.

3

A77429

PLUG

- hex socket pipe, 1/2-18 inch PT

5шт.

4

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 inch PT

2шт.

5

A77505

PLUG

- hex socket pipe, 3/4-14 inch PT

1шт.

6

CASJ900250

RETAINER

KEEPER - valve

24шт.

7

J900299

RETAINER

- valve spring

12шт.

8

J900276

VALVE SPRING

SPRING - valve

12шт.

9

J901097

SEAL

- valve stem

12шт.

10

J901117

VALVE

- intake

6шт.

11

J901607

VALVE

- exhaust

6шт.

15

J906854

SEAT, VALVE

SEAT - insert, intake valve (Service repair only)

6шт.

16

J904105

SEAT, VALVE

SEAT - insert, exhaust valve (Service repair only)

6шт.

17

J904408

GUIDE

- valve, intake 14 mm (Service repair only)

6шт.

17

J906206

GUIDE

- valve, intake 11 mm (Service repair only)

6шт.

18

J904409

GUIDE

- valve, exhaust 14 mm (Service repair only)

6шт.

18

J906206

GUIDE

- valve, exhaust 11 mm (Service repair only)

6шт.

20

J903938

BOLT

- hex flange, 12 mm - 1.75 x 70 mm

6шт.

20

J903939

BOLT

- hex flange, 12 mm - 1.75 x 120 mm

14шт.

21

J910814

SUPPORT

AND SHAFT ASSEMBLY - rocker arm

6шт.

22

J907555

PLUG

- rocker arm shaft, 1/4-18 PT

1шт.

23

J900242

SNAP RING

RING - retaining, rocker arm

12шт.

24

J900245

WASHER

- thrust, rocker arm

12шт.

25

J910811

ROCKER

ARM ASSEMBLY - rocker, intake

6шт.

26

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set adjusting, 3/8 inch NF x 40 mm

1шт.

28

129-123

NUT,3/8"-24, G5

1шт.

30

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust

6шт.

31

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set adjusting, 3/8 inch NF x 40 mm

1шт.

32

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

33

129-123

NUT,3/8"-24, G5

1шт.

35

813-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

- hex flange, 8 x 75 mm

6шт.

36

J903940

BOLT

- hex flange, 12 mm - 1.75 x 180 mm

6шт.

38

J904679

PUSH ROD

ROD - push, rocker arm

12шт.

40

J907240

TAPPET

- valve, push rod

12шт.

Выбрано товаров: 38
