Запчасти Case IH 1822 (2-50) - CYLINDER HEAD COVER AND GASKET 6TA-830 ENGINE (01) - ENGINE

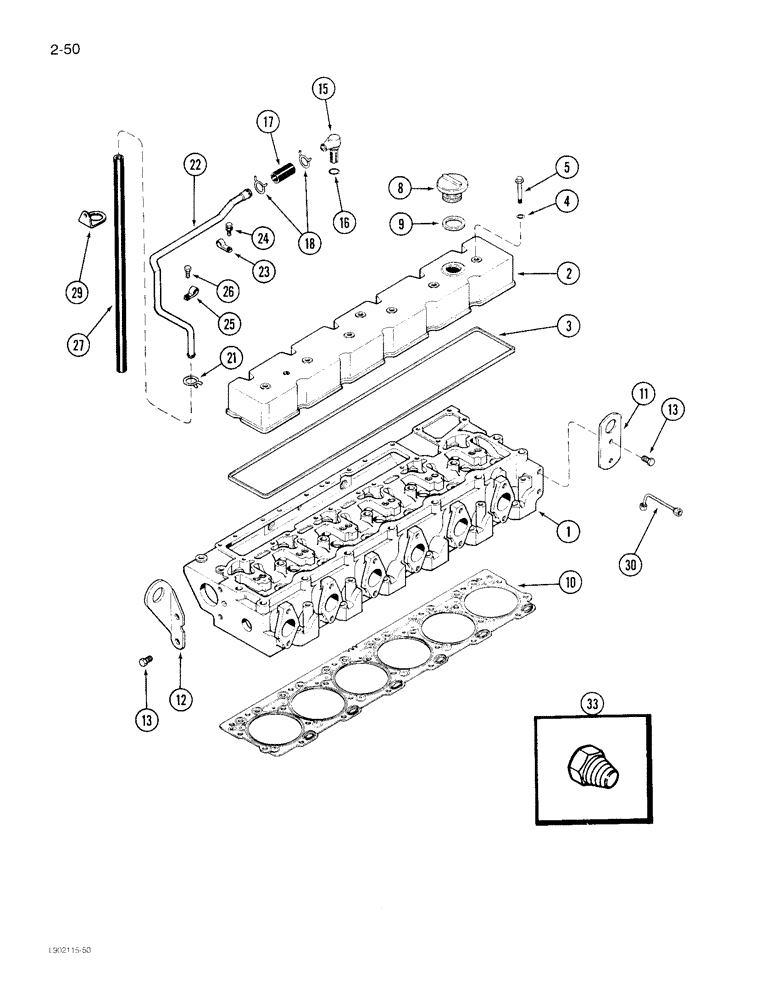

Схема запчастей Case IH 1822 - (2-50) - CYLINDER HEAD COVER AND GASKET 6TA-830 ENGINE (01) - ENGINE
22
29
1
25
33
9
3
5
10
26
2
17
13
30
16
8
12
4
24
13
23
11
27
21
18
15

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HEAD - cylinder, (See page 2-55)

1шт.

2

J907734

COVER ASSY

COVER - valve

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

GASKET - cover

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover

6шт.

5

J916585

BOLT,Hex Flg, M8 x 1.25

BOLT - hex flange shoulder, 8 x 56 mm (Replaces J901838)

6шт.

8

J902468

FILLER CAP,Male

CAP - oil filler

1шт.

9

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - cap sealing

1шт.

10

J911342

GASKET

- cylinder head, standard (Replaces J907682)

1шт.

10

J914305

CYLINDER HEAD GASKET

- cylinder head, 0.27 mm thicker (Replaces J908119)

1шт.

10

J914306

GASKET

- cylinder head, 0.48 mm thicker (Replaces J908120)

1шт.

11

J907861

LIFTING EYE

BRACKET - lifting, front

1шт.

12

J906440

LIFTING EYE

BRACKET - lifting, rear

1шт.

13

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 mm - 1.75 x 25 mm, Grade 10.9

4шт.

15

J906794

CONNECTION

CONNECTOR - vent, 90 degree breather

1шт.

16

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing, breather tube

1шт.

17

J915040

HOSE

- connector

1шт.

18

214-109

HOSE CLAMP,#14, 7/8", Spring

CLAMP - spring type, 7/8 inch

2шт.

21

214-113

HOSE CLAMP,#18, 1 1/8", Spring

CLAMP - spring type, 1-1/8 inch

1шт.

22

J909669

TUBE,15.9-19 mm OD x 642.7 mm L

- breather

1шт.

23

J907741

CLAMP,15.88mm ID, 9.52mm Bolt Hole, P Type

Retaining M15.88, M9.52 Bolt Hole

1шт.

24

J912072

SELF-TAP SCREW

SCREW, SELF TAPPING - hex washer head, 8 mm - 1.25 x 15 mm tap

1шт.

25

A77538

CLIP

- retaining, P style

1шт.

26

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 mm - 1.75 x 25 mm, Grade 10.9

1шт.

27

A77717

HOSE

- breather, tube end

1шт.

29

J909670

CLIP

- retaining, P style

1шт.

30

J918167

TUBE,6.35 mm OD x 117.5 mm L

ASSEMBLY - vent (Replaces J912802)

1шт.

33

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 inch PT

1шт.

Выбрано товаров: 27
