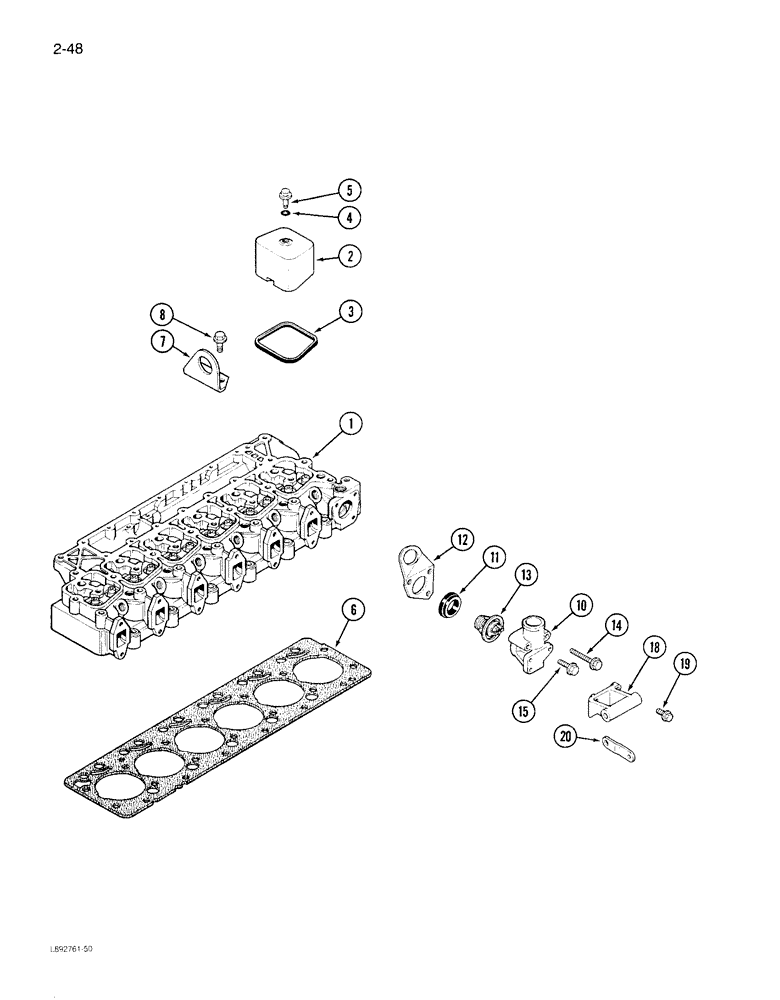

Запчасти Case IH 1822 (2-48) - CYLINDER HEAD COVERS AND GASKET 6TA-590 ENGINE (01) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, (See page 2-55)

1шт.

2

J902604

COVER

- rolcker, valve

6шт.

3

J902666

GASKET

- cover, rocker arm

6шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

5

J907049

BOLT,Hex

- hex flange, 8 mm - 21.25 x 12 mm

6шт.

6

J917358

GASKET

- head, standard (1-Notch)

1шт.

6

J917359

GASKET

- head, 0.23 mm thicker (2-Notches)

1шт.

6

J917360

GASKET

- head, 0.51 mm thicker (3-Notches)

1шт.

7

J908118

BRACKET

- lifting, rear

1шт.

8

813-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 mm - 1.75 x 25 mm

2шт.

10

J914409

HOUSING

- thermostat

1шт.

11

J903301

GASKET

- thermostat and housing

1шт.

12

J903757

BRACKET

- lifting, front, thermostat and housing

1шт.

13

J917324

THERMOSTAT

- water (Repalces J912587), housing

1шт.

14

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 70 mm, Thermostat and housing

2шт.

15

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 35 mm, Thermostat and housing

1шт.

18

J917484

BRACE

SUPPORT - alternator mounting (Replaces J910923), thermostat and housing

1шт.

19

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- hex flange, 8 - 1.25 x 25 mm, Thermostat and housing

4шт.

20

J903104

PLATE

BRACE - alternator mounting, thermostat and housing

1шт.
