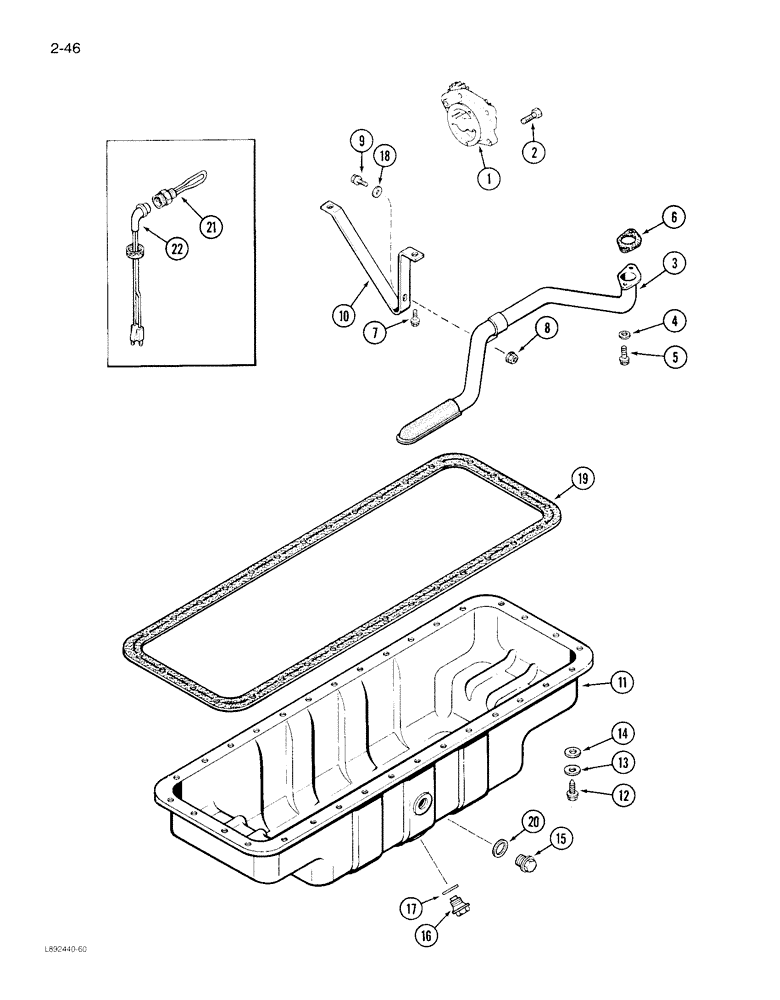

Запчасти Case IH 1822 (2-46) - OIL PUMP AND OIL PAN 6TA-830 ENGINE (01) - ENGINE

1

J918213

PUMP, ENGINE OIL

PUMP ASSEMBLY - engine oil, new (With 24 tooth drive gear) (For use on engines having 6 or 12 piston cooling nozzles)

1шт.

1

JR918213

PUMP

ASSEMBLY - oil, remanufactured (North America Only) (For use on engines having 6 or 12 piston cooling nozzles)

1шт.

1

JC918213

PUMP

RETURN NUMBER - Use this part number when returning pump core for credit

1шт.

1

JR910066

REMAN-ENG OIL PUMP

PUMP ASSEMBLY - oil, (With 28 tooth drive gear) remanufacutred (North Americal) (For Use on engines having 6 piston cooling nozzles only)

1шт.

1

JC910066

PUMP

RETURN NUMBER - Use this part number when returning pump core for credit

1шт.

2

813-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

3

J912228

TUBE

- oil suction (with screen)

1шт.

4

J908738

SPACER

- mounting

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

- heavy hex flange, 6 mm - 1.0 x 30 mm

2шт.

6

J914302

GASKET

- mounting, oil tube

1шт.

Part of oil pan gasket kit P/N A77679

1шт.

7

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

8

J906216

FLANGE NUT

- hex flange, 6 mm

1шт.

9

J901865

FLANGE BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

BOLT - hex fange, 6 mm - 1.00 x 20 mm

1шт.

10

J913427

BRACE

- suction tube (Replaces J910785)

1шт.

11

J914015

ENGINE OIL PAN

PAN - oil, engine

1шт.

12

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT, Hex, Flg Hd, M8 x 25, Spcl

32шт.

13

J910266

LOCK WASHER

- spring, Belleville

32шт.

14

J908316

WASHER

- flat, M9 x 16 x 1

32шт.

15

J904386

PLUG

- heater hole, oil

1шт.

16

J911638

PLUG,M18 x 1.5

- drain, magnetic oil

1шт.

17

J900216

PACKING RING

WASHER - sealing

1шт.

Part of oil pan gasket kit P/N A77679

1шт.

18

J910960

WASHER

- falt retaining

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET - pan, oil (Order A77679)

1шт.

Part of oil pan gasket kit P/N A77679

1шт.

20

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing

1шт.

Part of oil pan gasket kit P/N A77679

1шт.

A77679

GASKET KIT

- oil pan, Includes: Ref. 6, 17, 19 and 20

1шт.

A77580

SERVICE KIT

HEATER KIT - oil pan

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 12 volt, oil pan

1шт.

22

J905113

CABLE

- heater, oil pan

1шт.
