Запчасти Case IH 1822 (2-44) - OIL PUMP AND OIL PAN 6TA-590 ENGINE (01) - ENGINE

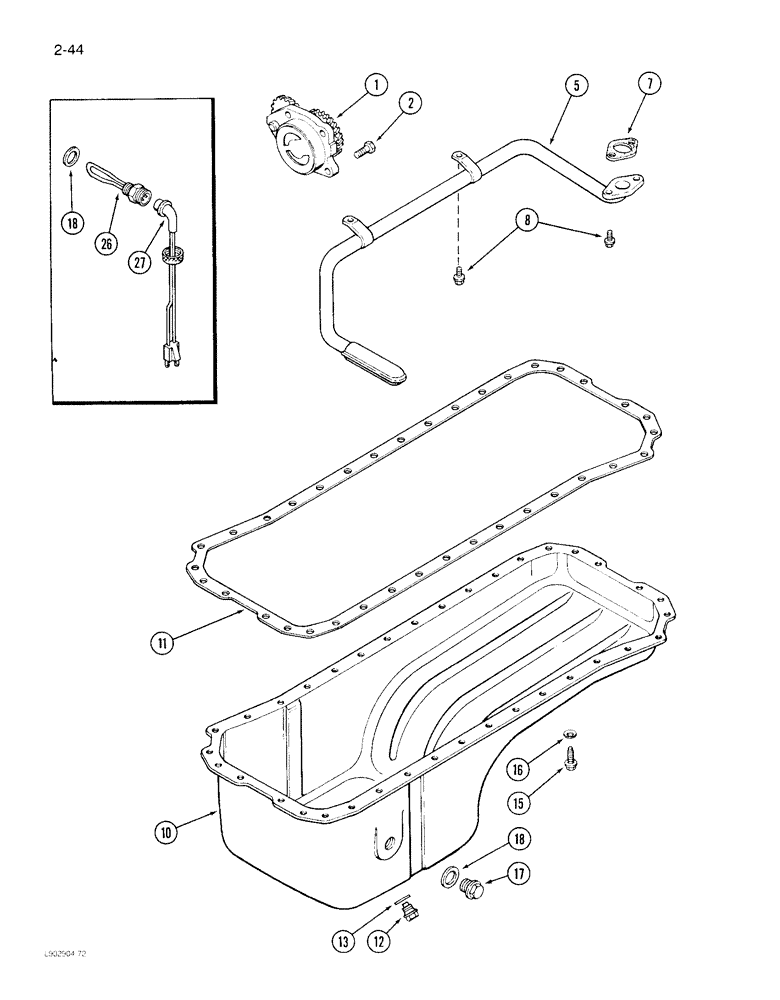

Схема запчастей Case IH 1822 - (2-44) - OIL PUMP AND OIL PAN 6TA-590 ENGINE (01) - ENGINE
5
12
11
27
13
18
7
10
8
16
1
17
26
15
2
18

Артикул

Название

Примечание

Количество

JR914006

PUMP

ASSEMBLY - oil, remanufactured (North America Only)

1шт.

JC914006

CORE-HYDRAULIC PUMP

RETURN NUMBER - oil pump (Used this part number to return pump core for credit)

1шт.

1

J914006

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, engine (new)

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

4шт.

5

J918268

TUBE

AND SCREEN - oil, pump (Replaces J909374)

1шт.

7

J914383

GASKET

- mounting, tube

1шт.

Part of oil pan gasket kit P/N A77676

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 16 mm

3шт.

10

J915703

PAN, ENGINE OIL

PAN - oil, engine

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A77492)

1шт.

Part of oil pan gasket kit P/N A77676

1шт.

12

J9116388

PLUG - drain, oil mangetic

1шт.

13

J900216

PACKING RING

WASHER - seal, drain plug

1шт.

Part of oil pan gasket kit P/N A77676

1шт.

15

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange, 18 x 16 mm

36шт.

16

J907537

SPRING WASHER

- spring

36шт.

17

J904386

PLUG

- pipe, heater hole, 18 mm

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal

1шт.

A77676

GASKET KIT

- oil pan, Includes Ref. 7, 11 and 13 (Replaces A77492)

1шт.

A77490

KIT

HEATER KIT - engine, oil pan

1шт.

When kit is ordered, J902425 washer (Ref. 18) must also be ordered.

1шт.

26

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 12 volt, oil pan

1шт.

27

J905113

CABLE

- heater, oil pan

1шт.

Выбрано товаров: 23
