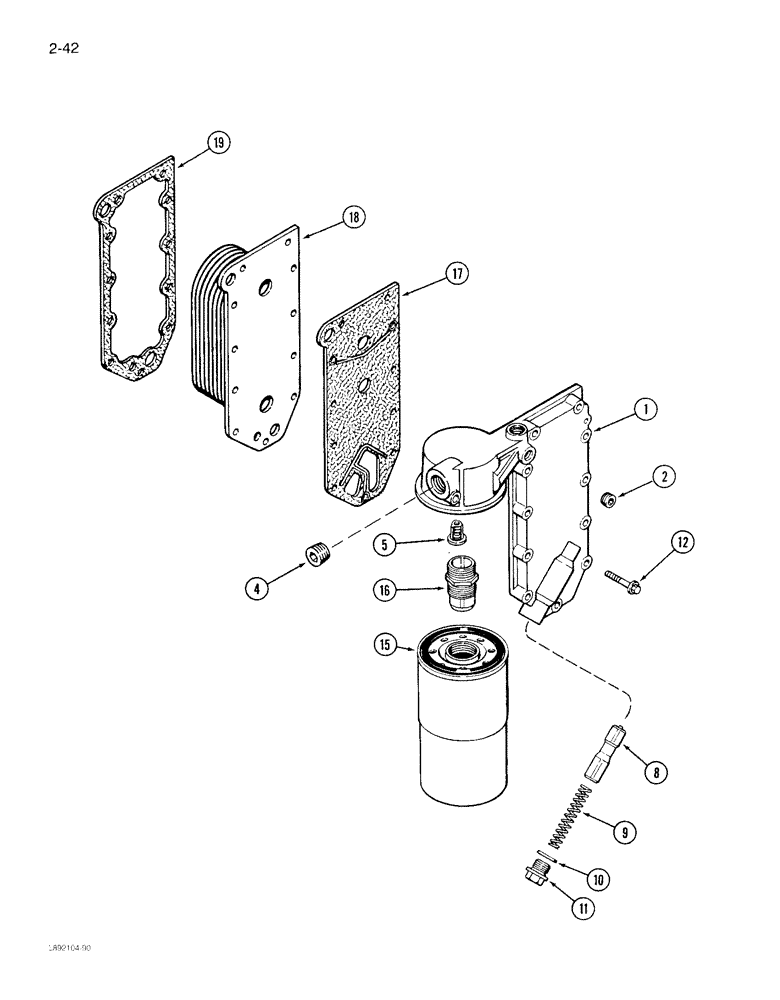

Запчасти Case IH 1822 (2-42) - OIL FILTER AND COOLER 6TA-830 ENGINE (01) - ENGINE

1

J907861

LIFTING EYE

HEAD - filter and cooler

1шт.

REF#1 THE HEAD HAS STANDARD THREAD 8/29/96

1шт.

REF#1A NEW METRIC HEAD IS J918334 8/29/96

1шт.

2

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 inch PT

1шт.

4

A77505

PLUG

- hex socket pipe, 3/4-14 inch PT

1шт.

5

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

8

A77540

PLUNGER

- regualtor

1шт.

9

A77541

SPRING

- compression

1шт.

10

J901798

SEALING WASHER

WASHER - sealing

1шт.

11

J906299

PLUG

- regulator

1шт.

12

845-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 45 mm, 8.8

11шт.

15

A77537

ENGINE OIL FILTER

FILTER - oil (Cartridge)

1шт.

REF#15 UP TO SN#44500128 USE A77537.AFTER USE J919562 8/29/96

1шт.

16

A77542

ADAPTER

- filter

1шт.

17

J914308

GASKET

- head, filter

1шт.

18

J918175

CORE, RADIATOR

CORE - cooler, oil (Replaces J906296)

1шт.

19

J918174

GASKET,0.71mm Thk

- cooler core (Replaces J914307)

1шт.
