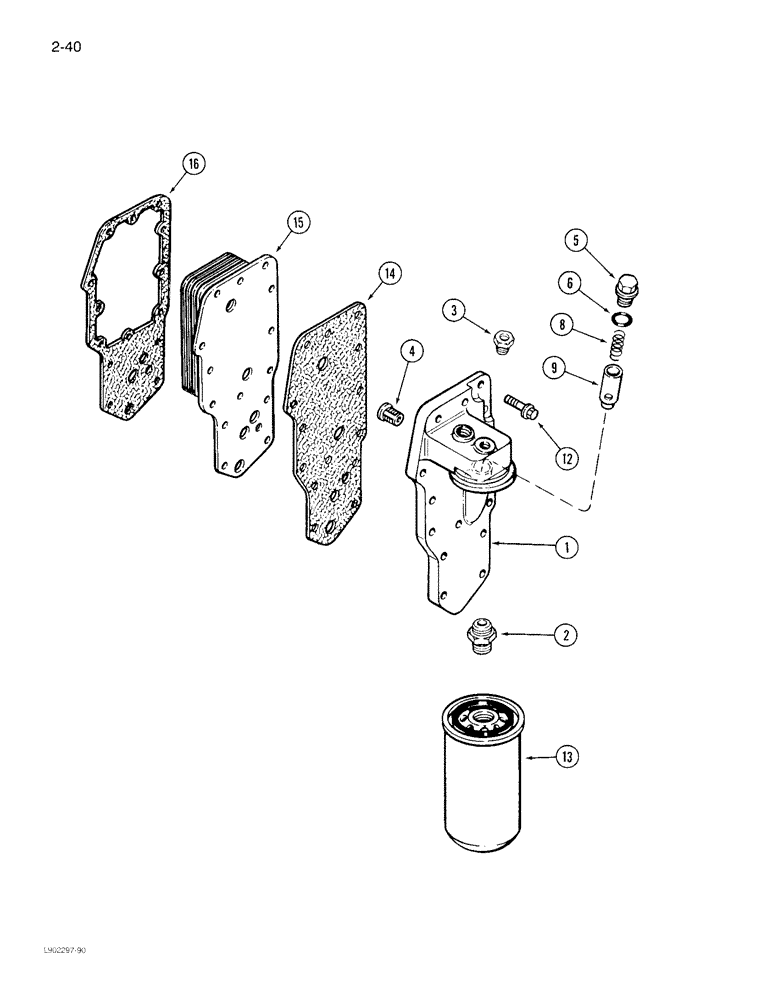

Запчасти Case IH 1822 (2-40) - OIL FILTER AND COOLER 6TA-590 ENGINE (01) - ENGINE

1

J915243

FILTER COVER

HEAD ASSEMBLY - with adapter

1шт.

2

J909355

ADAPTER

- filter head

1шт.

3

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 inch PT

1шт.

4

J902338

VALVE, PRESSURE RELI

VALVE - relief, pressure

1шт.

5

J915787

PLUG

- pipe (Replaces J912618)

1шт.

6

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing (Replaces J912818)

1шт.

8

J903261

SPRING

- compression

1шт.

9

J914084

VALVE

PLUNGER - regulator, pressure

1шт.

12

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 mm

14шт.

13

J908615

FILTER

- engine oil (Cartridge)

1шт.

14

J918257

GASKET

- filter head (Replaces J912532)

1шт.

15

J911940

HEAT-EXCHANGER

CORE - cooler, oil

1шт.

16

J918256

GASKET

- cooler core (Replaces J914387)

1шт.
