Запчасти Case IH 1822 (2-38) - TURBOCHARGER ASSEMBLY 6TA-830 ENGINE (01) - ENGINE

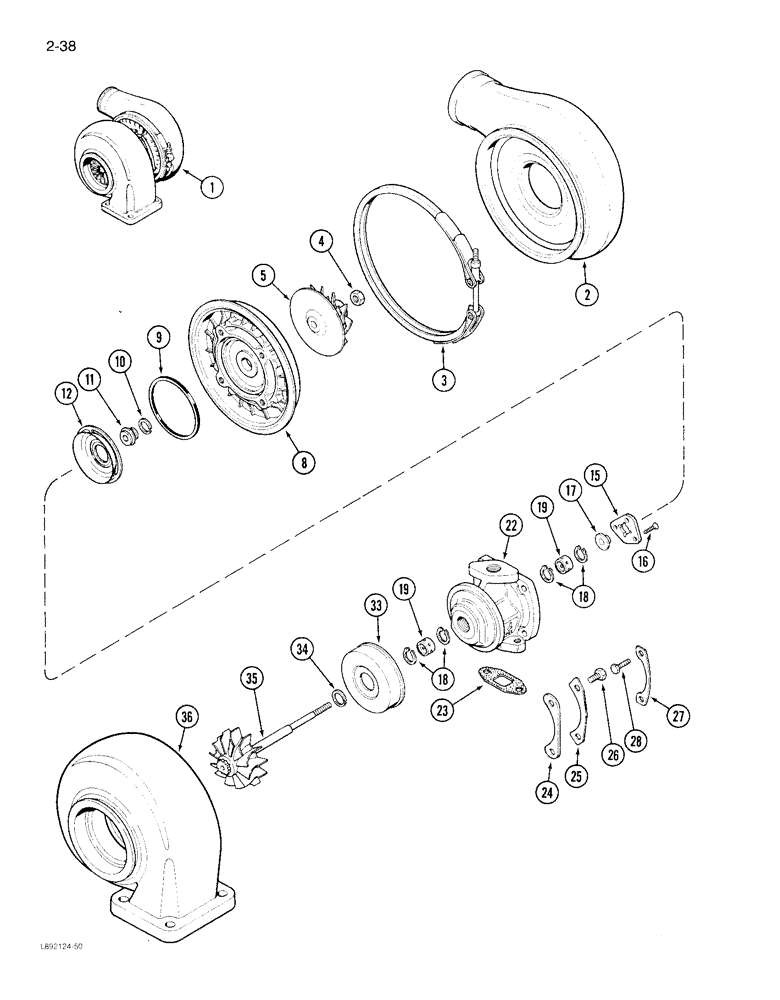

Схема запчастей Case IH 1822 - (2-38) - TURBOCHARGER ASSEMBLY 6TA-830 ENGINE (01) - ENGINE
18
26
25
36
23
5
10
9
12
22
33
3
34
27
8
35
15
16
11
4
2
17
1
24
28
18
19
19

Артикул

Название

Примечание

Количество

1

J909308

TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, new

1шт.

1

JR802303

REMAN-TURBOCHARGER

Remanufactured Turbocharge

1шт.

1

JC528777

CORE-TURBOCHARGER

Return Part Number

1шт.

1

JR909308

TURBOCHARGER

Turbocharger Assembly\r\n - Engine, Remanufactured

1шт.

1

JC909308

TURBOCHARGER

Return Part Number, Use this part number when returning turbocharger core for credit

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor

1шт.

3

NSS

NOT SOLD SEPARAT

CLAMP - housing

1шт.

4

NSS

NOT SOLD SEPARAT

NUT - hex lock

1шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

5

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY - turbocharger

1шт.

8

NSS

NOT SOLD SEPARAT

DIFFUSER - compressor

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - diffuser

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - split ring

1шт.

11

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

12

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

16

NSS

NOT SOLD SEPARAT

SCREW - flat head slotted

3шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

17

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

18

NSS

NOT SOLD SEPARAT

RING - snap retaining

4шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

19

NSS

NOT SOLD SEPARAT

BEARING - impeller shaft

2шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - bearing, turbine

1шт.

23

NSS

NOT SOLD SEPARAT

GASKET - oil drain

1шт.

24

NSS

NOT SOLD SEPARAT

PLATE - clamp, turbine housing

2шт.

25

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine housing

2шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

26

NSS

NOT SOLD SEPARAT

BOLT - hex, retaining

4шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE - lock, turbine

4шт.

28

NSS

NOT SOLD SEPARAT

BOLT ASSEMBLY - hex lock

4шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

33

NSS

NOT SOLD SEPARAT

SHIELD - heat, turbine

1шт.

34

NSS

NOT SOLD SEPARAT

SEAL - ring, turbine

1шт.

Part of turbocharger overhaul kit P/N J904772

1шт.

35

NSS

NOT SOLD SEPARAT

ROTOR - turbocharger

1шт.

36

NSS

NOT SOLD SEPARAT

HOUSING - turbocharger

1шт.

J904772

PACKAGE, REPAIR

OVERHAUL KIT - turbocharger, Includes: Ref. 4, 15, 16, 18, 19, 25, 26, 28 and 34

1шт.
