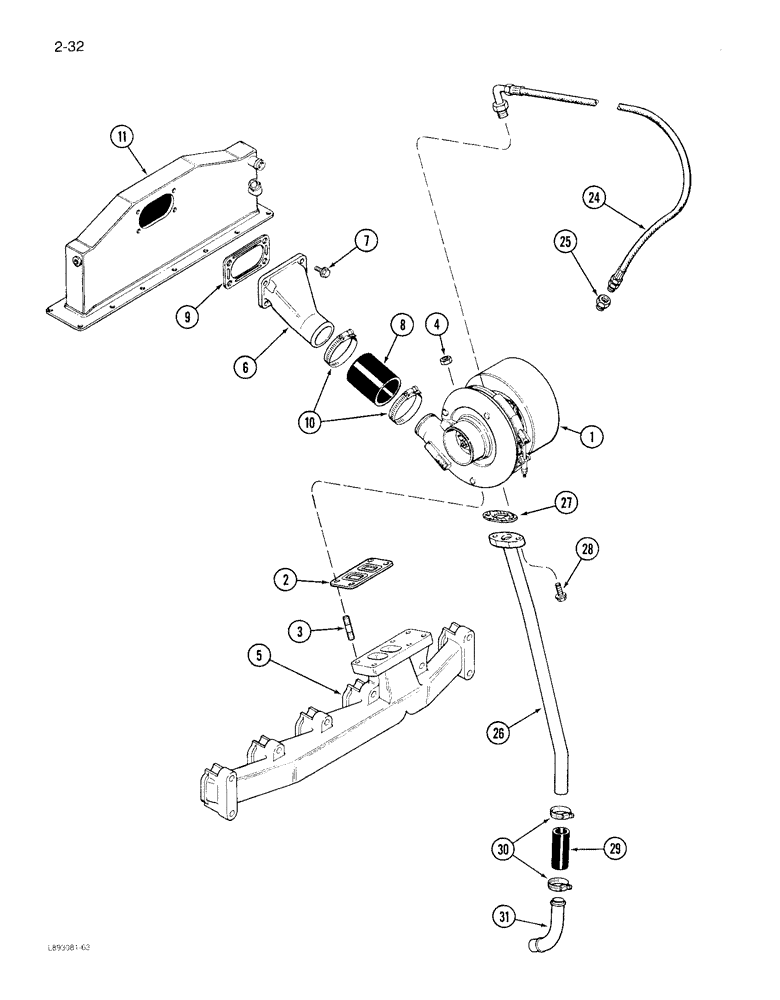

Запчасти Case IH 1822 (2-32) - TURBOCHARGER SYSTEM 6TA-590 ENGINE (01) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, (See page 2-37)

1шт.

2

J901356

GASKET,0.5mm Thk

- mounting, turbocharger

1шт.

3

J9054177

STUD - turbocharger mounting

4шт.

4

J901961

NUT

- hex, 10 mm - 1.25

4шт.

5

REF

INSTRUCTION

MANIFOLD - exhaust (See page 2-23)

1шт.

6

J906918

CONNECTION

- air crossover

1шт.

7

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- hex flange, 8 - 1.25 x 25 mm

4шт.

8

J916166

INTAKE AIR HOSE

HOSE - air intake (Replaces J901804)

1шт.

9

J914856

GASKET,1.02mm Thk

- connection, crossover

1шт.

10

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

11

REF

INSTRUCTION

AFTERCOOLER - intake (See page 2-23)

1шт.

24

J909548

HOSE

ASSEMBLY - oil supply, turbocharger

1шт.

25

A77457

FITTING

CONNECTOR - supply hose

1шт.

26

J905354

TUBE

- oil drain

1шт.

27

J914388

GASKET

- drain tube

1шт.

28

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 20 mm

2шт.

29

J903745

LARGE HOSE

HOSE - turbocharger oil drain

1шт.

30

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

- adj. #16, 0.81/1.50 Type F Worm

2шт.

31

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - elbow, drain

1шт.
