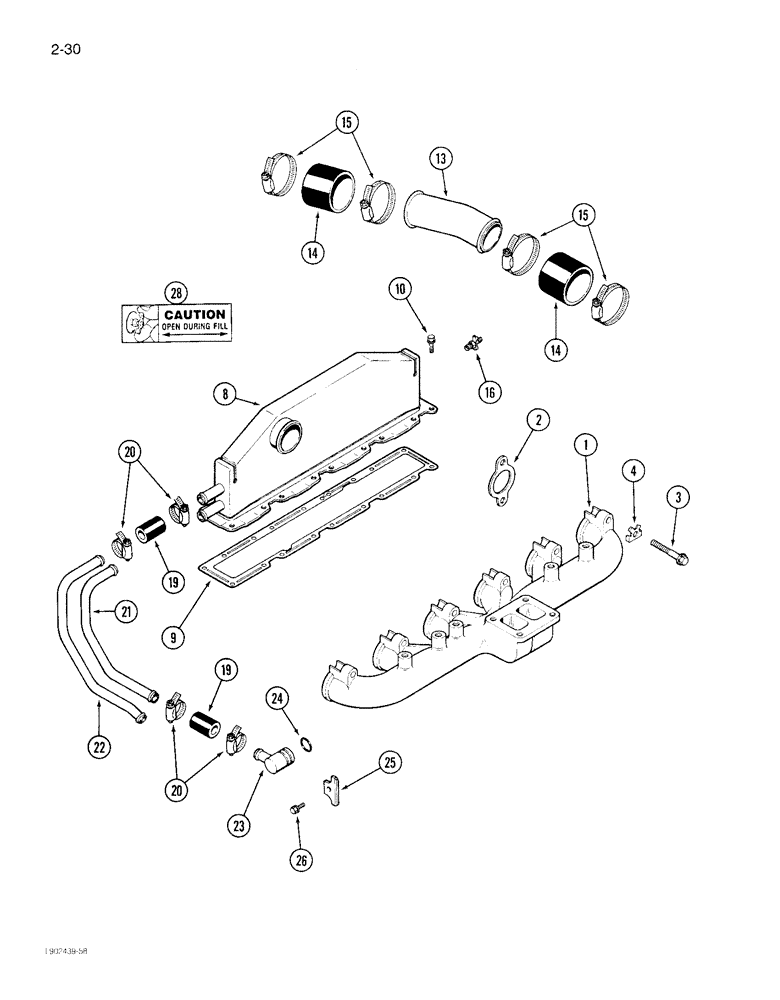

Запчасти Case IH 1822 (2-30) - MANIFOLDS 6TA-830 ENGINE (01) - ENGINE

1

J906741

MANIFOLD

- exhaust

1шт.

2

J911942

GASKET

- manifold, exhaust

6шт.

3

813-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex flange, 10 x 70 mm

12шт.

4

J914708

LOCKING PLATE

PLATE - locking, bolt

12шт.

8

J914502

HEAT-EXCHANGER

AFTERCOOLER - intake manifold

1шт.

9

J914311

MANIFOLD GASKET

- cover, manifold, intake aftercooler

1шт.

10

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, (Replaces J904341), Intake, Aftercooler manifold Hex Flg Hd, M8 x 1.25 x 25

18шт.

13

J914942

TUBE,63.5 mm OD x 189.5, 23 mm L

- crossover, intake, aftercooler manifold

1шт.

14

J916529

TRANSMISSION SLEEVE

HOSE - crossover tube (Replaces J904422), intake, aftercooler manifold

2шт.

15

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adjustable, 2-1/16 to 3 inch diameter, intake, aftercooler manifold

4шт.

16

J909394

COCK, DRAIN

VALVE - drain, intake, aftercooler manifold

1шт.

19

J917791

HOSE

- supply tube to aftercooler (Replaces H353854), intake, manifold

4шт.

20

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - adjustable, 11/16 to 1-1/4 inch diameter, intake, aftercooler manifold

8шт.

21

J906436

TUBE,19.05 mm OD x 385.3 mm L

- water inlet, intake, aftercooler manifold

1шт.

22

J908402

TUBE,19.05 mm OD

- water outlet, intake, aftercooler manifold

1шт.

23

J917394

ELBOW

CONNECTOR - water inlet (Replaces J906438), intake, aftercooler manifold

2шт.

24

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

Intake aftercooler manifold -120, 70 Duro, .987" ID x .103" Thk

2шт.

25

J906439

PLATE

- mounting, intake, aftercooler manifold

1шт.

26

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 16 mm, Intake, aftercooler manifold

1шт.

28

J910778

DECAL

- open during fill, intake, aftercooler manifold

1шт.
