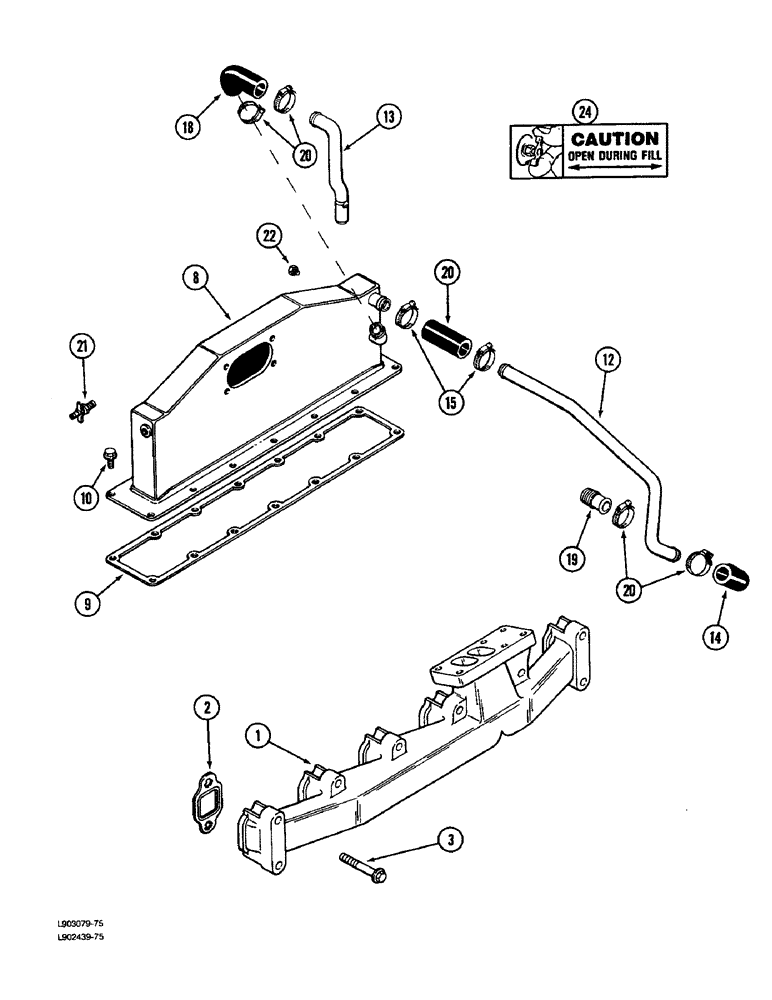

Запчасти Case IH 1822 (2-28) - MANIFOLDS 6TA-590 ENGINE (01) - ENGINE

1

J901683

MANIFOLD

- exhaust

1шт.

2

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

3

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- heavy hex flange, 10 mm - 1.50 x 65 mm, Grade 10.9

12шт.

8

J910282

COOLER ASSY.

AFTERCOOLER ASSEMBLY - intake, manifold

1шт.

9

J914029

GASKET

- mounting, manifold, intake, aftercooler

1шт.

10

J918108

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

BOLT - hex flange, 8 x 16 mm, intake, aftercooler manifold

14шт.

12

J907168

TUBE

- supply, aftercooler, intake, manifold

1шт.

13

J905639

TUBE,12.7 mm ID x 22.22 mm OD x 154.7 mm L

- drain, aftercooler, intake, manifold

1шт.

14

J917793

HOSE

Block to Supply Tube (Replaces J903391), Intake Aftercooler, Manifold

1шт.

15

J917791

HOSE

- supply tube to aftercooler (Replaces H353854), intake, manifold

1шт.

18

J917792

HOSE,19.05 mm ID x 114.60 mm

Aftercooler to Drain Tube (Replaces J903234), Intake, Manifold 19.05 mm ID x 114.60 mm

1шт.

19

J907167

SPLINED COUPLING

COUPLING - supply hose, intake, aftercooler manifold

1шт.

20

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - adjustable, 11/16 - 1-1/4 inch diameter, intake, aftercooler manifold

6шт.

21

J909394

COCK, DRAIN

VALVE - air bleed, intake, aftercooler manifold

1шт.

22

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 inch PT, intake, aftercooler manifold

1шт.

24

J910778

DECAL

- open during fill, intake, aftercooler manifold

1шт.
