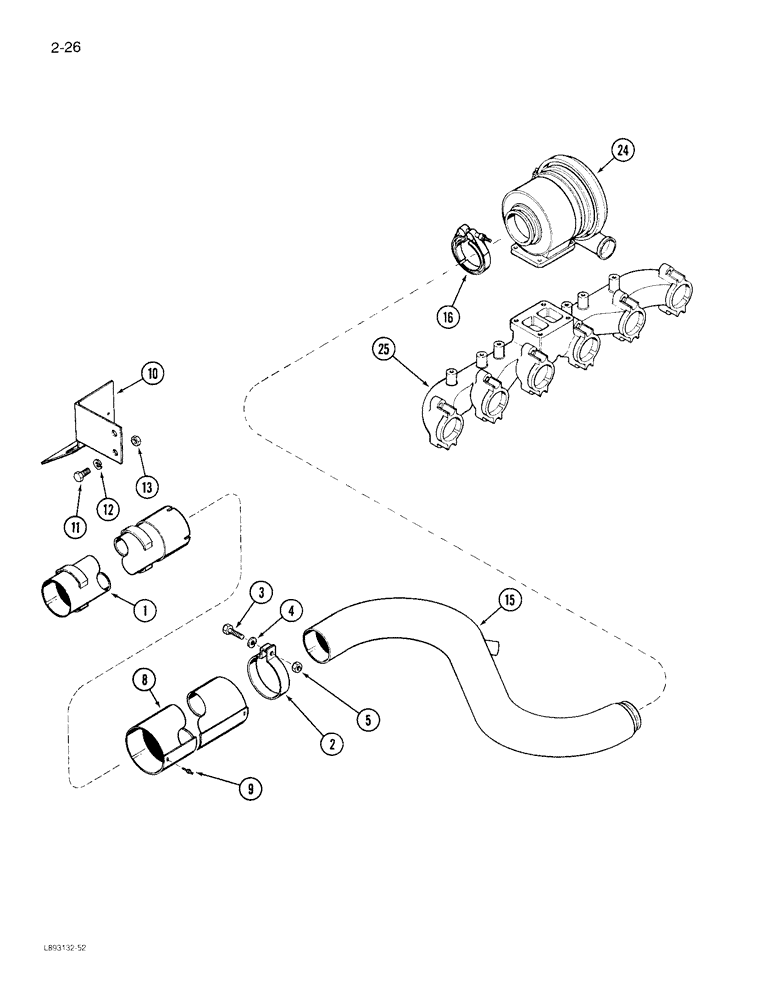

Запчасти Case IH 1822 (2-26) - EXHAUST SYSTEM 6TA-830 ENGINE (01) - ENGINE

1

1260035C3

TUBE,1895, 50 mm Length

PIPE - exhaust

1шт.

2

1321280C1

CLAMP

- exhaust pipe

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

8

1260034C2

TUBE,119 mm OD, 2030 mm Length

SHIELD - tube, exhaust

1шт.

9

201946C1

RIVET,Pop, 3/16" x .325"

- mandrel, 5 x 8 mm

7шт.

10

86978C1

GUARD

SHIELD - pipe, exhaust

1шт.

11

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

15

84617C1

TUBE,85 mm ID x 88.9 mm OD x 578, 320 mm L

- exhaust

1шт.

16

A170807

CLAMP,102mm ID

tube retaining, T bolt

1шт.

24

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine (See page 2-39)

1шт.

25

REF

INSTRUCTION

MANIFOLD - exhaust (See page 2-31)

1шт.
