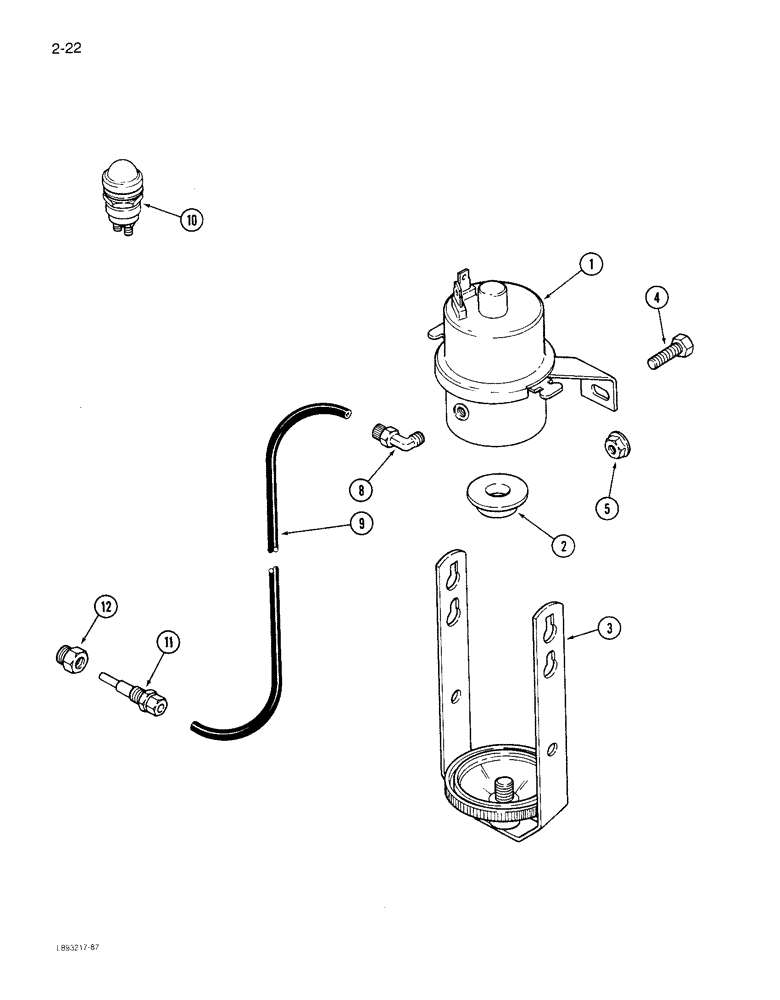

Запчасти Case IH 1822 (2-22) - ETHER STARTING (01) - ENGINE

1

121842C91

SOLENOID SWITCH

SOLENOID ASSEMBLY - ether injection

1шт.

2

1963571C1

GASKET

GASKET - injector solenoid

1шт.

3

121851C1

RETAINER

BAIL ASSEMBLY - retainer

1шт.

4

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

5

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

8

289970C91

FITTING

ELBOW - 90 degree, 1/8-27 PT x 1/8 tube

2шт.

9

NSS

NOT SOLD SEPARAT

TUBE - solenoid to manifold, 14 inch (Order 1954063C1 and cut)

1шт.

1954063C1

PLASTIC-RUBBER TUBE,0.125" OD

TUBE - bulk, 100 foot roll nylon

1шт.

10

453453C1

SWITCH

ASSEMBLY - ether start, push button

1шт.

11

A172900

NOZZLE CAP

NOZZLE - atomizer

1шт.

12

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - reducer, 1/4 x 1/8 inch PT (1844 Cotton Picker only)

1шт.
