Запчасти Case IH 1822 (9C-56) - REAR BASKET LOCK (16) - BASKET

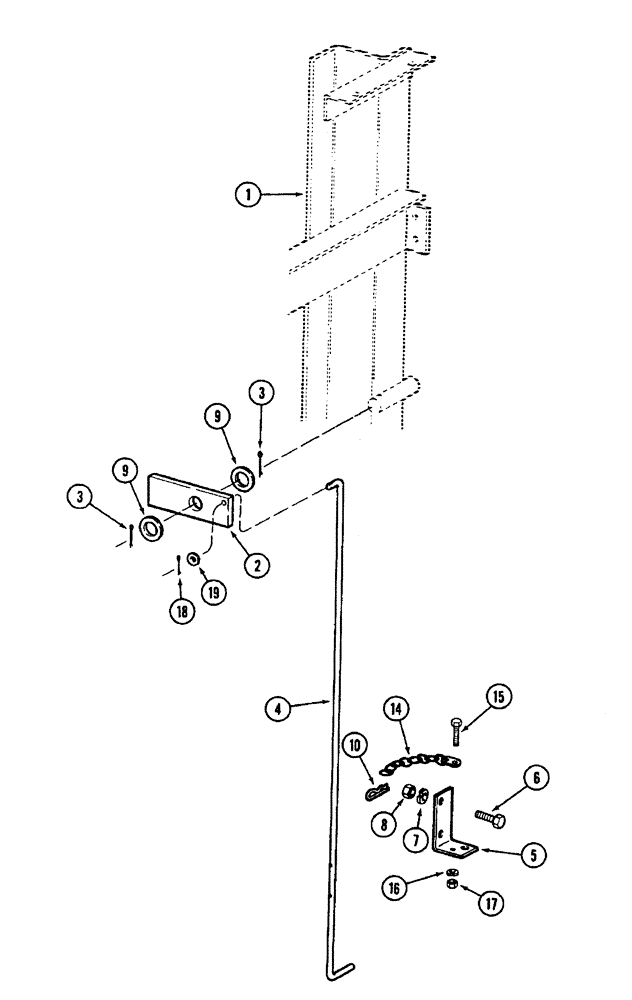

Схема запчастей Case IH 1822 - (9C-56) - REAR BASKET LOCK (16) - BASKET
10
3
7
19
9
3
9
15
16
8
17
1
5
6
14
4
2
18

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

MAST ASSEMBLY - basket (See Page 9C-51)

1шт.

2

1270025C2

LARGE PLATE

BAR - basket lock

1шт.

3

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), 3/16" x 2"

2шт.

4

87262C2

STEM

ROD ASSEMBLY - basket lock rear

1шт.

5

87263C2

SUPPORT

BRACKET - basket lock rear

1шт.

6

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

9

195-112

WASHER,1 1/4" x 2 3/4" x .164"

- flat, 1-5/32 x 1-3/4 x 7/64 inch

2шт.

10

586591R1

COTTER PIN

PIN - quick attachable

1шт.

14

87509C2

CHAIN (AG)

CHAIN ASSEMBLY - basket lock pin

1шт.

15

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

17

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

18

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

19

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

Выбрано товаров: 16
