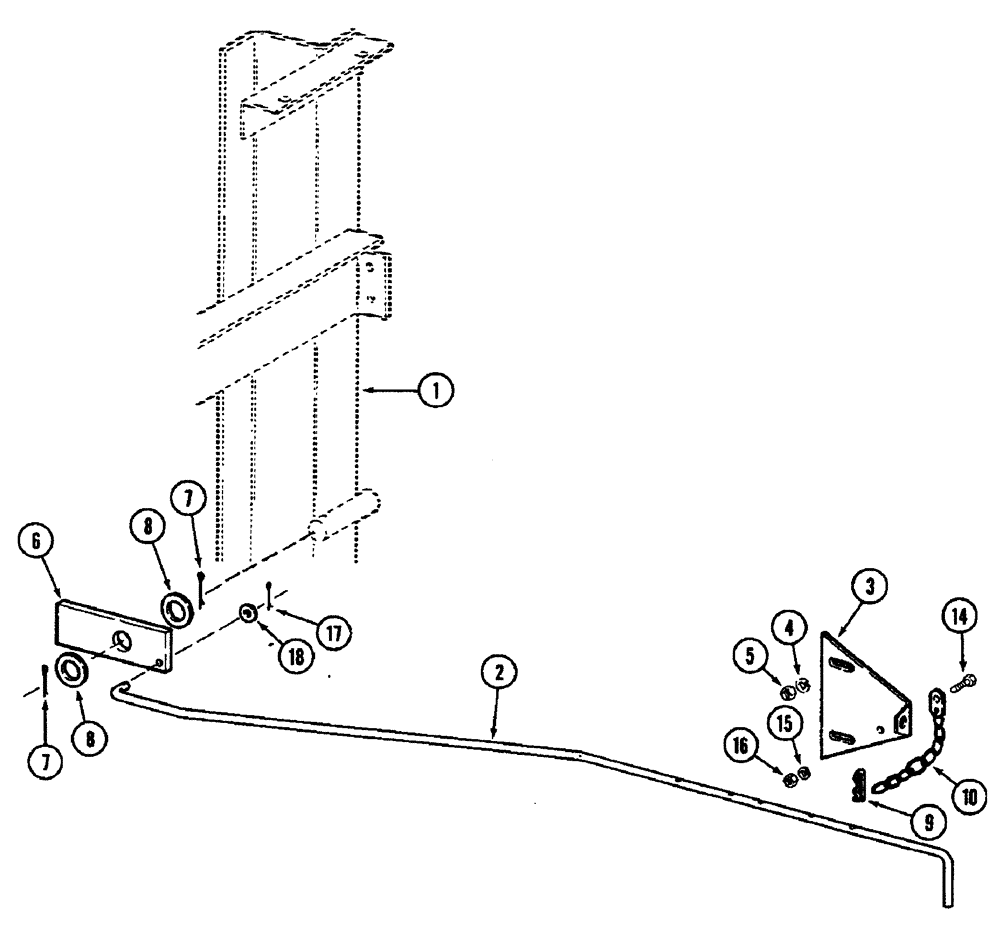

Запчасти Case IH 1822 (9C-54) - FRONT BASKET LOCK (16) - BASKET

1

REF

INSTRUCTION

MAST ASSEMBLY (See Page 9C-51)

1шт.

2

87265C4

ROD

ASSEMBLY - basket lock front

1шт.

3

87264C3

SUPPORT

BRACKET - basket lock front

1шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

1270025C2

LARGE PLATE

BAR - basket lock

1шт.

7

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), 3/16" x 2"

2шт.

8

195-112

WASHER,1 1/4" x 2 3/4" x .164"

- flat, 1-5/32 x 1-3/4 x 7/64 inch

2шт.

9

586591R1

COTTER PIN

PIN - quick attachable

1шт.

10

87509C2

CHAIN (AG)

CHAIN ASSEMBLY - basket lock pin

1шт.

14

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

16

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

17

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

18

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.
