Запчасти Case IH 1822 (9C-50) - BASKET LIFT FRONT AND REAR (16) - BASKET

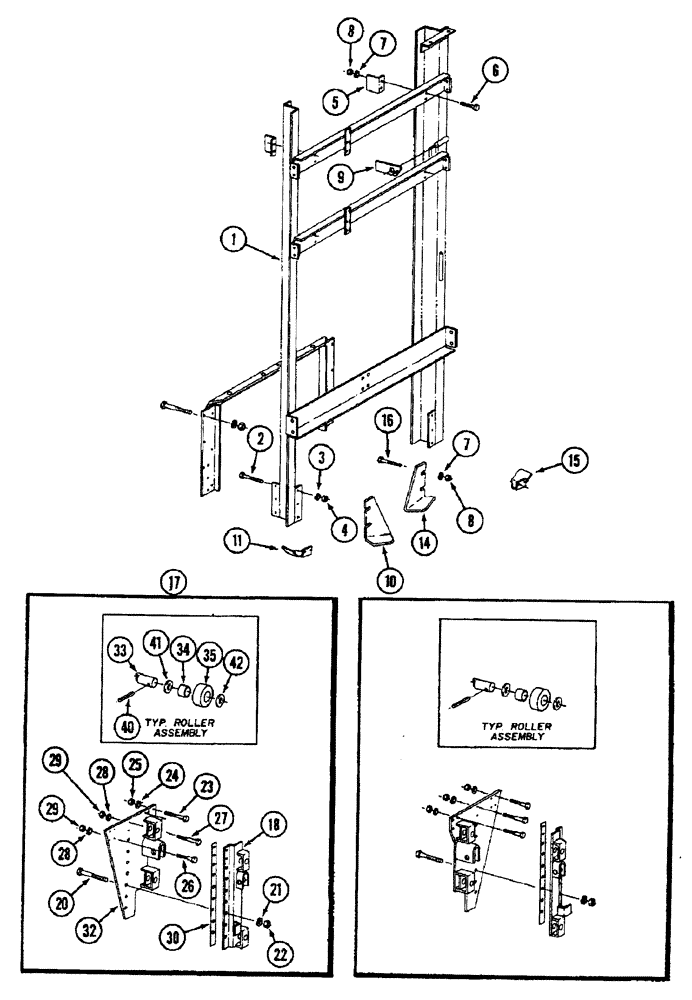

Схема запчастей Case IH 1822 - (9C-50) - BASKET LIFT FRONT AND REAR (16) - BASKET
24
26
29
15
2
9
3
32
4
16
1
41
14
35
20
33
23
18
17
34
42
8
27
40
28
5
7
8
10
28
21
30
29
7
25
11
22
6

Артикул

Название

Примечание

Количество

1

1260175C6

FUNNEL

MAST ASSEMBLY - basket, front and rear

2шт.

2

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

18шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

18шт.

4

25526R1

NUT,1/2"-13, G8

- hex, 1/2 inch NC, grade 8

18шт.

5

1278638C1

SUPPORT

BRACKET - upper stop

4шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

12шт.

9

REF

INSTRUCTION

BAR - basket lock (See page 9C-55 and 57)

2шт.

10

1345223C1

DEFLECTOR

- front corner, left

1шт.

11

1288804C1

DEFLECTOR

- rear, corner left

1шт.

14

1288805C1

DEFLECTOR

- rear corner, right

1шт.

15

1345224C1

DEFLECTOR

- front corner, right

1шт.

16

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

17

86853C91

SUPPORT

ASSEMBLY - right rear and left front

2шт.

18

1288890C1

SUPPORT

BRACKET - roller carriage

1шт.

20

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

7шт.

21

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

7шт.

22

25528R1

NUT,5/8"-11, G8

- hex, 5/8 inch NC, grade 8

7шт.

23

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

24

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

25

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

26

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

27

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

30

1266357C1

SHIM

- basket carriage, 1/32 inch

1шт.

30

1266358C1

SHIM

- basket carriage, 1/16 inch

1шт.

32

1278653C2

SUPPORT

- basket

1шт.

33

1260150C2

SHAFT

- roller

6шт.

34

1270038C1

BUSHING,25.44mm ID x 28.64mm OD x 25.15mm L

- fiber glide

6шт.

35

1260135C1

ROLL

ER

6шт.

40

19355R1

LOCK PIN,3/16" x 2", Slotted

PIN, 3/16" x 2", Slotted

6шт.

41

20885R1

WASHER

- flat, 1-5/32 x 2 x 3/64 inch

1шт.

42

25847R1

WASHER

- flat, 1-1/16 x 2 x 7/64 inch

6шт.

Выбрано товаров: 35
