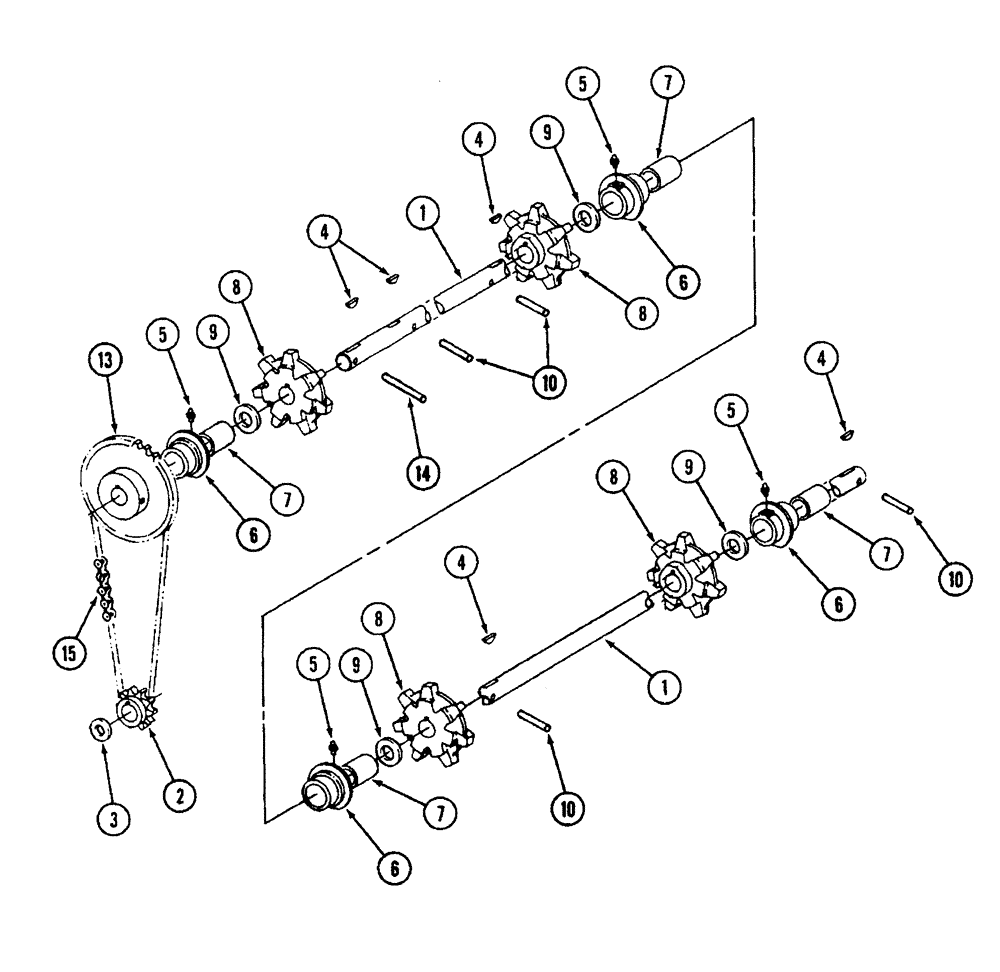

Запчасти Case IH 1822 (9C-44) - BASKET DOOR CONVEYOR DRIVE (16) - BASKET

1

1260366C1

SHAFT

- drive

1шт.

2

1260364C1

SPROCKET ASSY.

SPROCKET - drive, 10 teeth

1шт.

3

20704R1

WASHER

- flat, 1-1/32 x 1-1/2 x 7/64 inch

1шт.

4

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

5шт.

5

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, 1/4 inch

4шт.

6

1278954C91

BEARING ASSY

ASSEMBLY - drive shaft

4шт.

7

1278956C1

BUSHING,34.95mm ID x 39.7mm OD x 63.75mm L

- bearing

1шт.

8

1269910C1

DRIVE SPROCKET

SPROCKET - drive, 7 teeth

4шт.

9

608085R1

WASHER

- flat, 1-13/32 x 2 x 3/64 inch

4шт.

10

441015R1

LOCK PIN,5/16" x 2 1/4", Slotted

4шт.

13

1260365C1

SPROCKET ASSY.

SPROCKET - drive, 12 teeth

1шт.

14

455184R1

LOCK PIN,5/16" x 3", Slotted

Pin, 5/16" x 3", Slotted

1шт.

15

NSS

NOT SOLD SEPARAT

CHAIN - conveyor drive (Use 69 links of No. 60H chain, 1 offset link 1318D and 1 connecting link 1786D)

1шт.
