Запчасти Case IH 1822 (9C-40) - BASKET DOOR (16) - BASKET

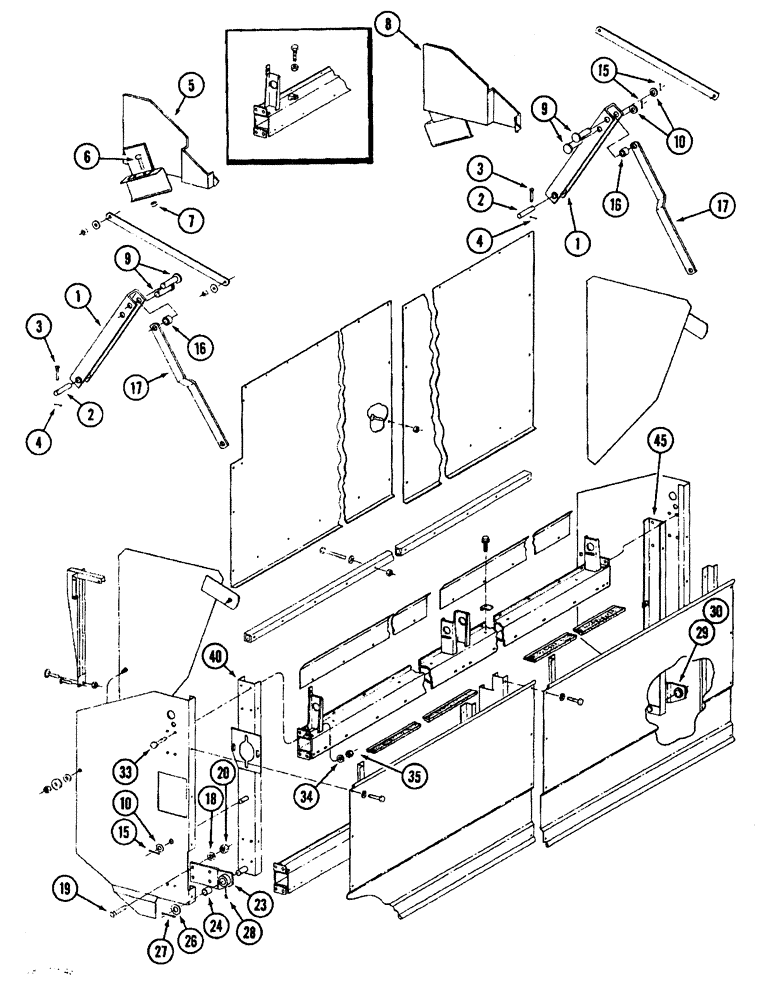

Схема запчастей Case IH 1822 - (9C-40) - BASKET DOOR (16) - BASKET
8
17
28
20
1
17
5
4
10
18
45
19
10
35
33
15
2
16
2
9
26
9
4
23
34
3
16
7
6
27
24
3
1
30
29
15
40

Артикул

Название

Примечание

Количество

1

1260385C2

ARM

ASSEMBLY - amplifier

2шт.

2

1260395C1

SHAFT

- pivot

2шт.

3

21242R1

HEADED PIN

PIN - headed, 1/4 x 1-3/4 inch

2шт.

4

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

2шт.

5

87256C2

GUIDE

- basket door, front

1шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

7

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flanged lock, 3/8 inch NC

6шт.

8

87257C2

GUIDE

- rear, basket door

1шт.

9

1260383C1

SHAFT

- amplifier link

4шт.

10

25847R1

WASHER

- flat, 1-1/16 x 2 x 7/64 inch

6шт.

15

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), 3/16" x 2"

6шт.

16

607783R1

SPACER,1" Pipe x 1850"

- 1 x 1-27/32 inch

4шт.

17

1260388C1

BAR

- amplifier link

2шт.

18

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

19

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

12шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

23

1270277C1

PIVOT

ASSEMBLY - door front

1шт.

24

458900R1

SPACER

BUSHING - split steel backed

1шт.

26

608700R1

WASHER

- flat, 1-9/32 x 2 x 3/64 inch

2шт.

27

132-352

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

28

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - 65 degree, grease, 3/16 inch

2шт.

29

1270278C1

PIVOT

ASSEMBLY - door rear

1шт.

30

458900R1

SPACER

BUSHING - split steel back

1шт.

33

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

20шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

24шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

24шт.

40

1270172C2

CHANNEL

- front door

1шт.

45

1270173C1

CHANNEL

- rear door

1шт.

Выбрано товаров: 28
