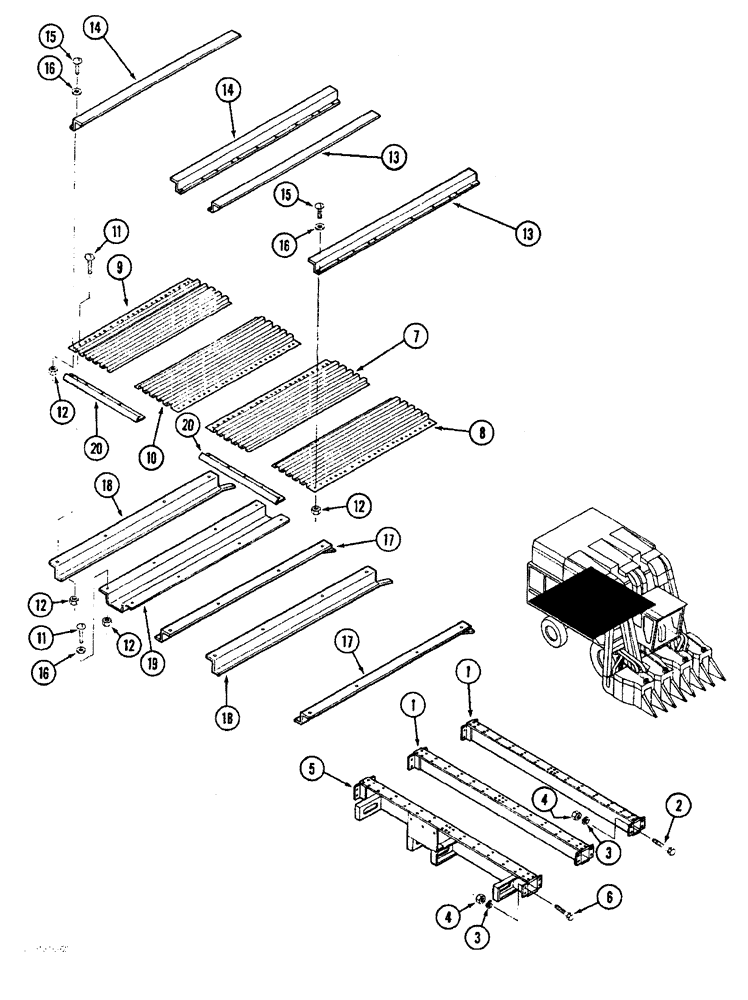

Запчасти Case IH 1822 (9C-34) - BASKET FLOOR, 1822 COTTON PICKER (16) - BASKET

REF

INSTRUCTION

BASKET ASSEMBLY - cotton picker, complete (See Note)

1шт.

1

1260275C1

SUPPORT

STRUT - floor

2шт.

2

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

3

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

5

1260290C2

SUPPORT

STRUT - floor

1шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

7

1262484C2

PANEL

- floor

1шт.

8

1260269C2

PANEL

- floor

1шт.

9

1260270C2

PANEL

- floor

1шт.

10

1262485C2

PANEL

- floor

1шт.

11

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted, 5/16 NC x 1 inch

1шт.

12

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

1шт.

13

1270076C1

GUIDE

BRACKET - guide

2шт.

14

1270077C1

GUIDE

BRACKET - guide

2шт.

15

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted, 5/16 NC x 3/4 inch

1шт.

16

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

17

1339121C1

BAR

- support, lower front

2шт.

18

1339122C1

BAR

- support, lower rear

2шт.

19

1278060C1

SUPPORT

- center

1шт.

20

1278298C1

GUIDE

- chain

2шт.
