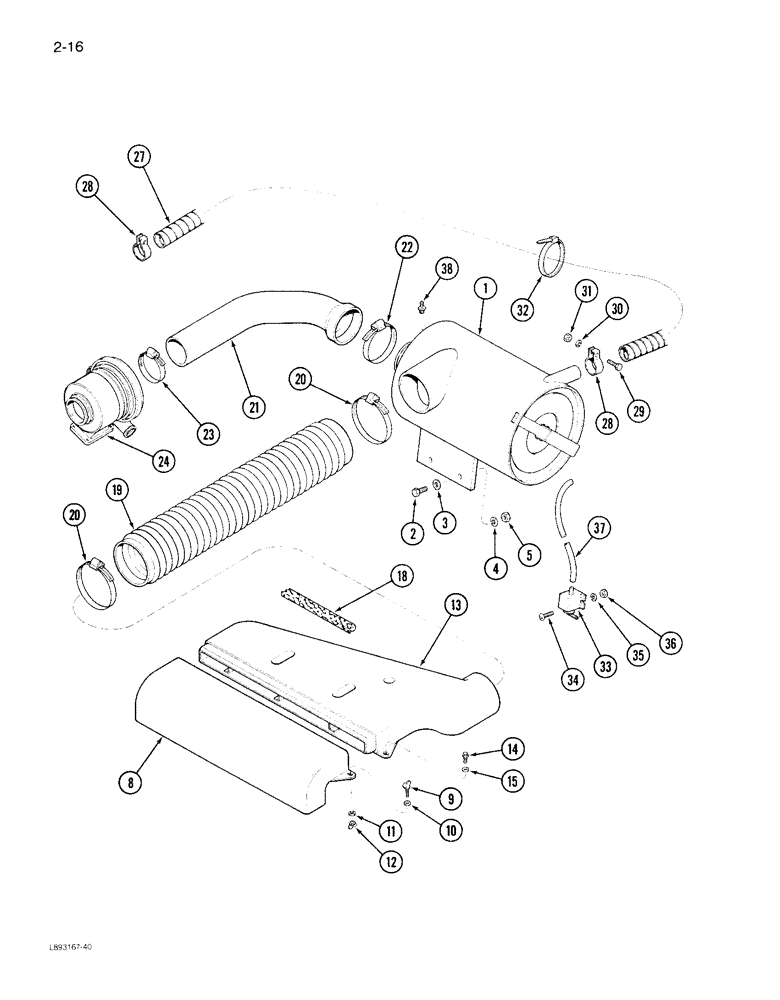

Запчасти Case IH 1822 (2-16) - AIR INDUCTION SYSTEM 6TA-590 ENGINE (01) - ENGINE

1

REF

INSTRUCTION

CLEANER ASSEMBLY - air, engine (See page 2-21)

1шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

3

25710R1

WASHER

- flat, 17/32 x 1-1/16 x 5/64 inch

2шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

8

1262792C2

SUPPORT

DUCT - extension, air intake

1шт.

9

532400R1

THUMB SCREW

- thumb, 1/4 NC x 1 inch

2шт.

10

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

4шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

12

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

2шт.

13

1262786C3

SUPPORT

DUCT - intake, air

1шт.

14

27294R1

SELF-TAP SCREW,Hex Washer, 1/4" - 14 x 3/4"

SCREW - hex washer, 1/4 NC x 3/4 inch tap

2шт.

15

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 3/64 inch

2шт.

18

NSS

NOT SOLD SEPARAT

SEAL - foam, 53 inch (Order 87084C1, Serial Range: cut-length)

1шт.

87084C1

SEAL

- foam, bulk 50 foot roll

1шт.

19

84318C2

INTAKE AIR HOSE,127.00 mm ID x 820.00 mm

HOSE - inlet, air

1шт.

20

182088H1

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

CLAMP - hose, No. 80, Type F

2шт.

21

84562C1

INTAKE AIR HOSE

HOSE - outlet, air

1шт.

22

146570C1

CLAMP

- hose, No. 72 type F

1шт.

23

146569C1

CLAMP

- hose, No. 56 type F

1шт.

24

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine (See page 2-37)

1шт.

27

1982309C4

TUBE

- aspirtor, flex metal (Replaces 1275888C2)

1шт.

28

1275854C1

CLAMP

- aspirator tube

2шт.

29

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

30

492-11038

LOCK WASHER,3/8"

2шт.

31

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

32

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch long

2шт.

33

533917C1

GAUGE

- restriction, air

1шт.

34

159688

SCREW,Cross Pan Hd, #8-32 x 1 1/4"

- round head machine, No. 8 x 1-1/4 inch

2шт.

35

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

36

120622

NUT,#8-32

2шт.

37

NSS

NOT SOLD SEPARAT

HOSE - restriction, 640 mm (Order 9900015C1, Serial Range: cut-length)

1шт.

990015C1

LARGE HOSE

HOSE - bulk, 7 620 mm roll

1шт.

38

533916C1

FITTING

CONNECTOR - restriction gauge hose

1шт.
