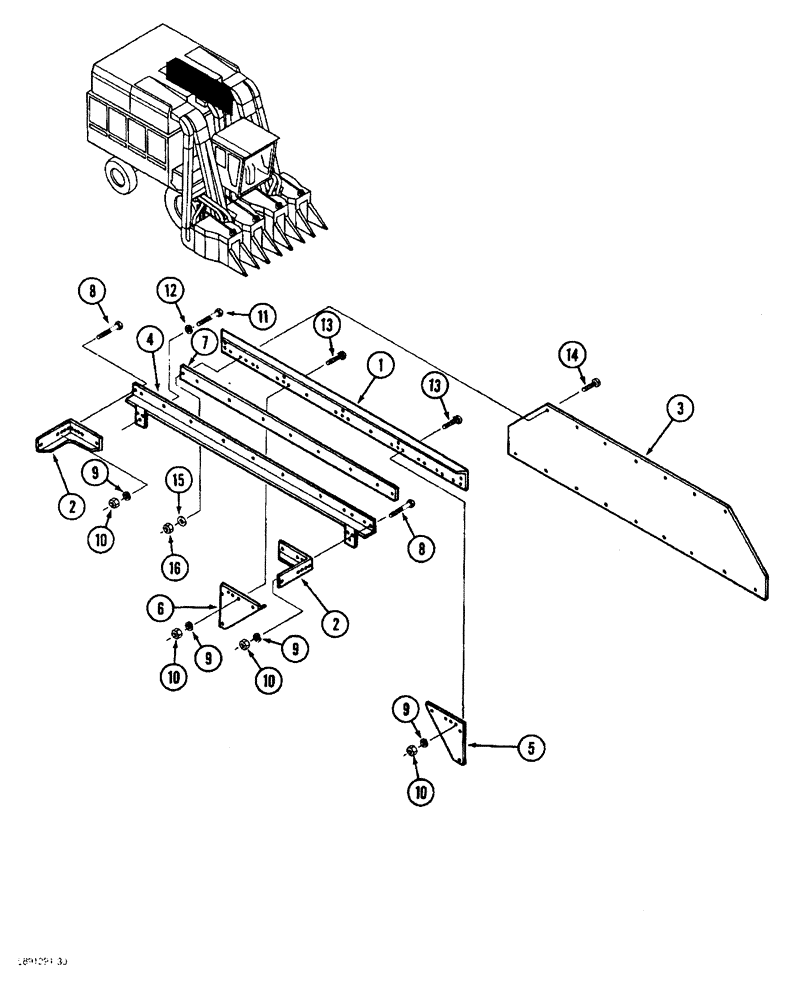

Запчасти Case IH 1822 (9C-32) - LEFT BASKET SIDE EXCLUDING DOOR ASSEMBLY (16) - BASKET

REF

INSTRUCTION

BASKET ASSEMBLY - cotton picker, complete (See Note)

1шт.

1

1260248C1

SUPPORT

BRACKET - upper

1шт.

2

1278117C1

ANGLE

BRACE - corner

4шт.

3

1288754C5

MUDFLAP

FLAP - door

1шт.

4

1288785C2

SUPPORT

BRACKET - upper

1шт.

5

1288786C1

LARGE PLATE

PLATE - corner, front

1шт.

6

1288787C1

LARGE PLATE

PLATE - corner, rear

1шт.

7

1288894C2

BAR

- door

1шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

11

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted, NC x 3/4 inch

1шт.

15

477589R1

WASHER

- flat, 13/32 x 1-1/2 x 7/64 inch

1шт.

16

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

1шт.
