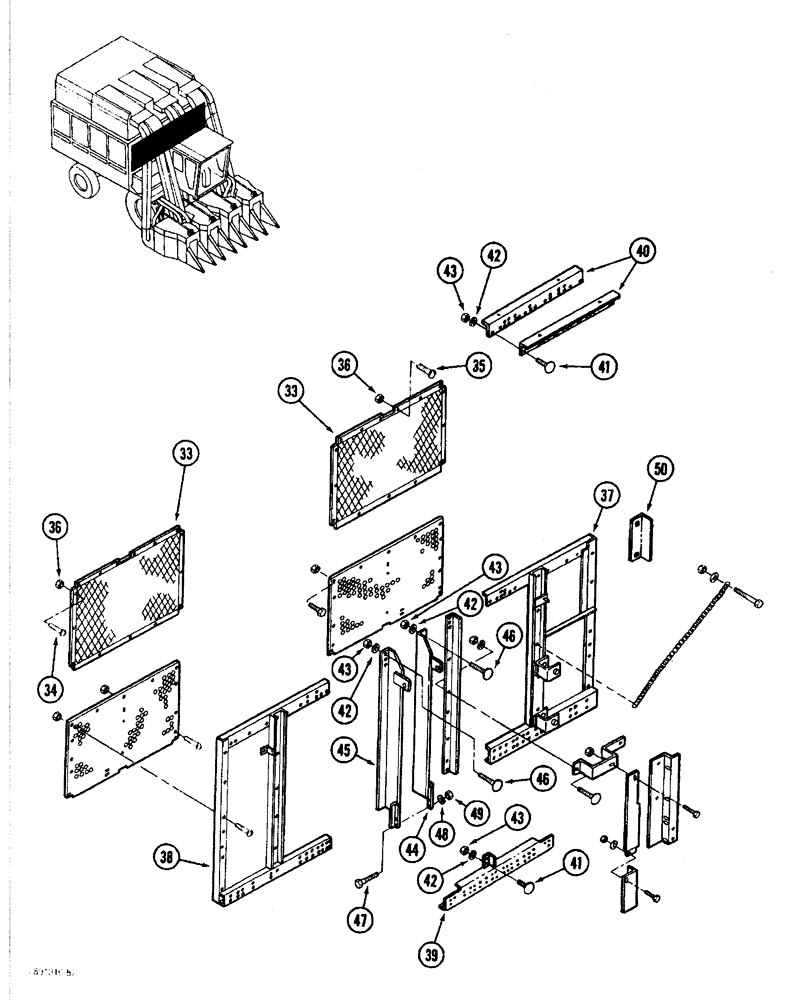

Запчасти Case IH 1822 (9C-26) - BASKET FRONT, 1822 COTTON PICKER (16) - BASKET

REF

INSTRUCTION

BASKET ASSEMBLY - cotton picker, complete (See Note)

1шт.

33

1260164C1

SIEVE

SCREEN - basket

2шт.

34

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted, 3/8 NC x 1 inch

1шт.

35

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted, 3/8 NC x 3/4 inch

1шт.

36

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

1шт.

37

1260226C8

CHASSIS

END - basket, left

1шт.

38

1260228C7

END

- basket, right

1шт.

39

1260319C2

SUPPORT

CHANNEL - tie

1шт.

40

1260244C1

SUPPORT

BRACKET - tie

2шт.

41

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

42

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

43

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

44

1338385C1

ANGLE BAR

BRACKET - lift, left

1шт.

45

1338386C1

ANGLE BAR

BRACKET - lift, right

1шт.

46

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT - round head square neck, 3/8 NC x 2 inch

1шт.

47

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

48

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

49

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

50

1329245C1

GUIDE

- door (If equipped)

1шт.
