Запчасти Case IH 1822 (9C-18) - RIGHT BASKET SIDE (16) - BASKET

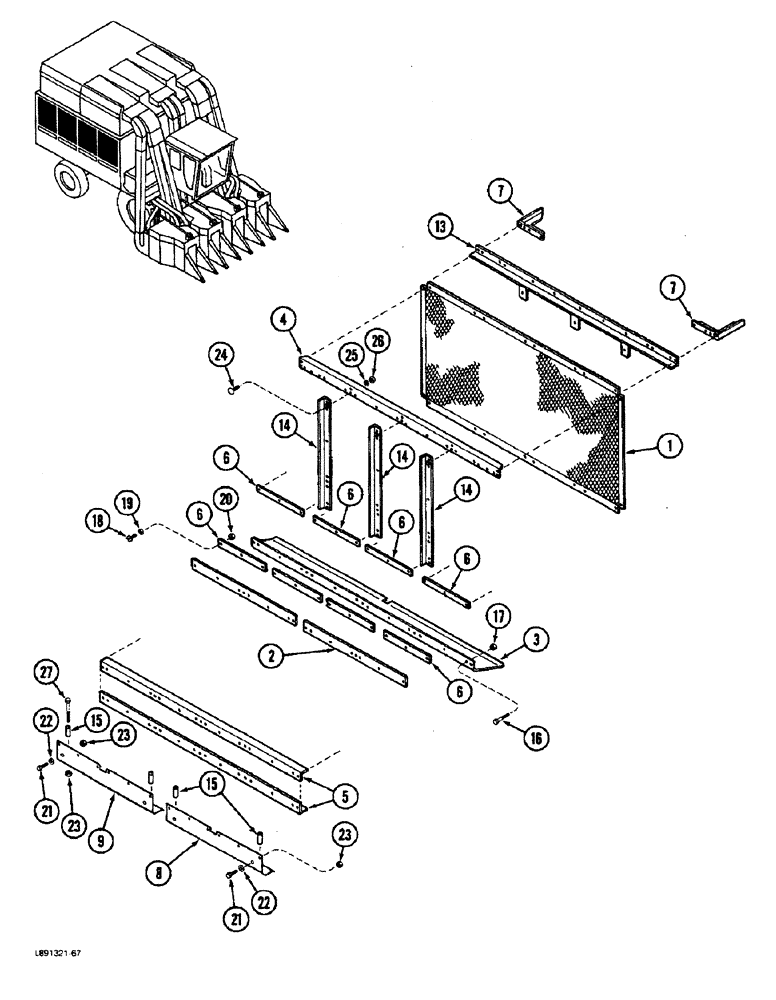

Схема запчастей Case IH 1822 - (9C-18) - RIGHT BASKET SIDE (16) - BASKET
5
2
7
13
23
18
25
23
6
6
14
6
22
4
23
6
6
22
21
15
19
15
14
17
26
1
27
21
24
6
20
3
7
8
14
16
9

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

BASKET ASSEMBLY - cotton picker, complete (See Note)

1шт.

1

1260309C1

SCREEN

- side

4шт.

2

1262487C1

BAR

RETAINER - flap

2шт.

3

1262488C2

FIXING STRIP

FLAP - rubber

1шт.

4

1266279C1

SUPPORT

BRACKET - upper, right

1шт.

5

1270023C1

ANGLE

RETAINER - screen

2шт.

6

1270044C1

LARGE PLATE

RETAINER - screen

8шт.

7

1278117C1

ANGLE

BRACE - corner

4шт.

8

1278543C2

SHIELD

- unloader front, right

1шт.

9

1278544C2

SHIELD

- unloader rear, right

1шт.

13

1288774C2

ANGLE

BRACKET - side upper

1шт.

14

1288779C1

ANGLE

BRACKET - upright

3шт.

15

21367R1

SPACER,1/4" Pipe x 2 1/2"

- pipe, 1/4 x 2-1/2 inch

4шт.

16

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, 3/8 NC x 1 inch

14шт.

17

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

14шт.

18

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted, 3/8 NC x 3/4 inch

64шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

64шт.

20

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

64шт.

21

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex, 5/16 NC x 3/4 inch

3шт.

22

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

3шт.

23

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

7шт.

24

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT - round head square neck, 3/8 NC x 1 inch

20шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

20шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

20шт.

27

113-133

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- hex, 5/16 NC x 3-1/4 inch

4шт.

Выбрано товаров: 25
