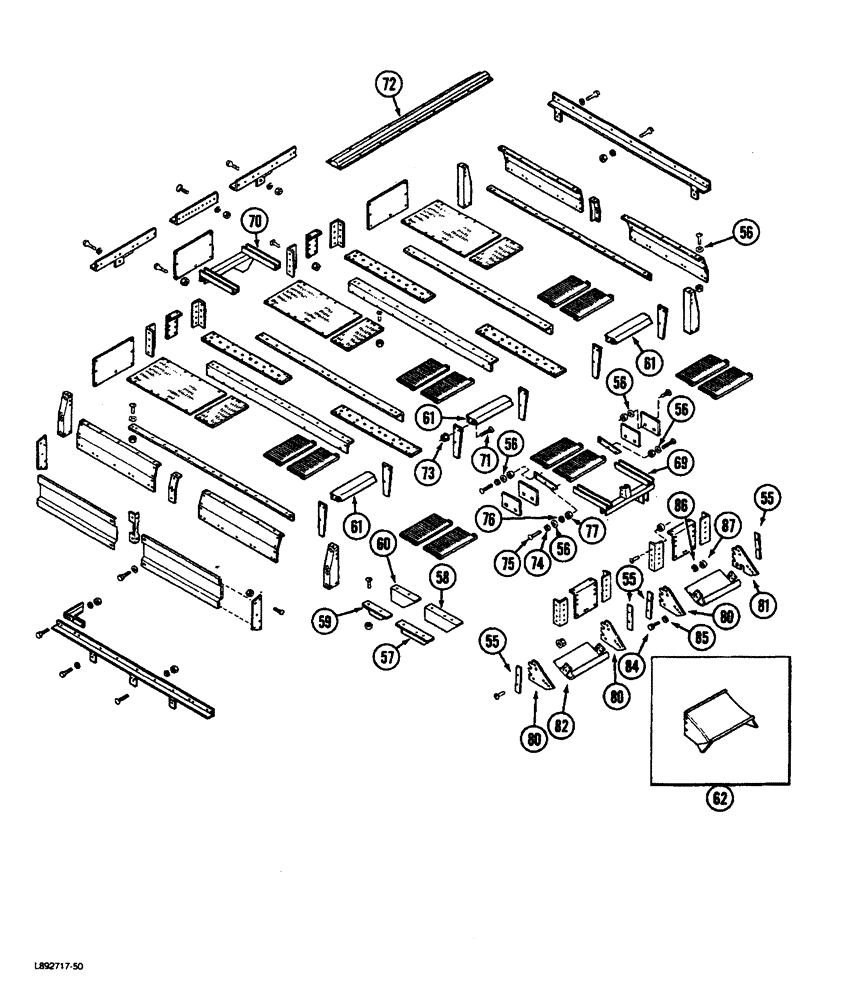

Запчасти Case IH 1822 (9C-08) - BASKET TOP, 1822 COTTON PICKER (16) - BASKET

55

1270282C1

LARGE PLATE

BAR - spacer

12шт.

56

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

1шт.

57

87055C2

SUPPORT

BRACKET - middle rear, right

1шт.

58

87054C2

SUPPORT

BRACKET - middle rear, left

1шт.

59

87057C1

SUPPORT

BRACKET - rear, right

1шт.

60

87056C1

SUPPORT

BRACKET - rear, left

1шт.

61

87497C1

COVER

SUPPORT - grate

3шт.

62

87065C1

COVER

- chute (See note)

1шт.

69

1329471C2

CHANNEL

- cylinder mounting, front

1шт.

70

1278013C4

CHANNEL

- cylinder mounting, rear

1шт.

71

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 1-1/2 inch

1шт.

72

87531C1

SUPPORT

- top

1шт.

73

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

1шт.

74

612233R1

SPACER,5/8" Tube x 1 1/8"

- tube, 5/8 x 1-3/16 inch

2шт.

75

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G5

2шт.

76

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

77

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

80

1345191C1

SUPPORT

- grate hood

5шт.

81

1345242C1

SUPPORT

- front grate hood, notch left

1шт.

82

1982265C1

SHEET

PLATE - grate filler

3шт.

84

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

6шт.

85

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

6шт.

86

392-11025

LOCK WASHER,1/4"

1/4"

6шт.

87

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

6шт.
