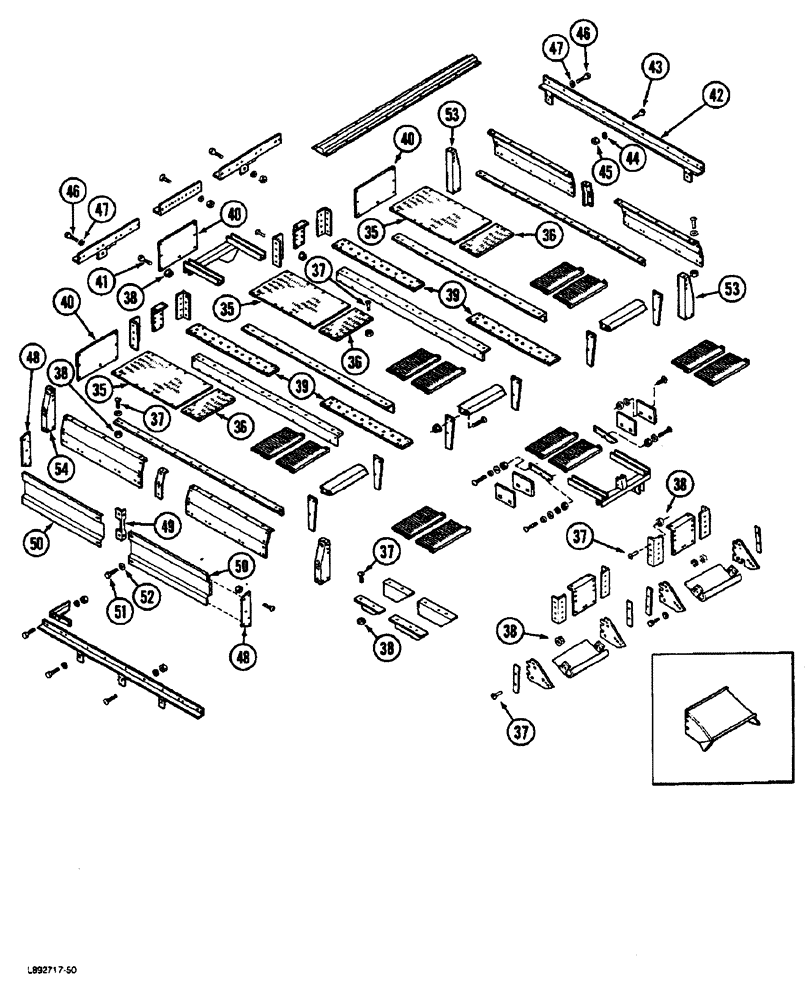

Запчасти Case IH 1822 (9C-06) - BASKET TOP, 1822 COTTON PICKER (16) - BASKET

35

87008C1

LARGE PLATE

PLATE - top, rear

3шт.

36

87793C1

LARGE PLATE

PLATE - top, front

3шт.

37

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted, 3/8 NC x 3/4 inch

1шт.

38

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

1шт.

39

1270033C3

BAR

- extension, top

4шт.

40

1270164C2

COVER

- rear

3шт.

41

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, 3/8 NC x 1 inch

1шт.

42

1288785C2

SUPPORT

BRACKET - basket side upper, left

1шт.

43

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

44

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

45

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

46

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

47

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

48

1278767C1

LARGE PLATE

SUPPORT - channel end

2шт.

49

1278768C1

SUPPORT

- center

1шт.

50

1278766C2

CONDUIT

CHANNEL - side

2шт.

51

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex, 5/16 NC x 3/4 inch

1шт.

52

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

- flat, 11/32 x 1-1/4 x 1/16 inch

1шт.

53

1260278C1

LARGE PLATE

PLATE - end, left

2шт.

54

1260279C1

LARGE PLATE

PLATE - end, right

2шт.
