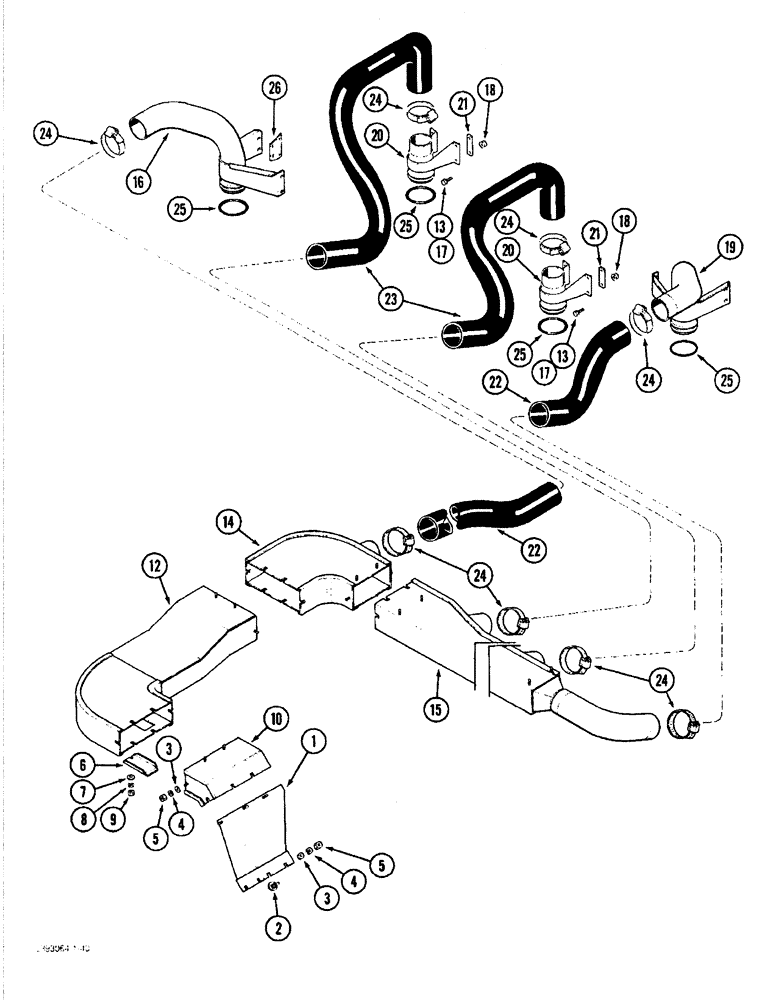

Запчасти Case IH 1822 (9B-34) - AIR DUCTS AND HOSES, 1822 COTTON PICKER (15) - HANDLING SYSTEM

1

1270084C1

DUCT

- transition

1шт.

2

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

8шт.

2

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

3

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

36шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

36шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

36шт.

6

1270220C1

COVER

- duct access

2шт.

7

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

10

1270166C1

DUCT

- elbow

1шт.

12

1288929C2

DUCT

- air supply, left

1шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

14

1288920C1

TUBE

DUCT - air supply elbow

1шт.

15

1288924C2

PIPE, EXHAUST SYSTEM

DUCT - air supply

1шт.

16

1338668C2

DUCT

- left drum front

1шт.

17

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

12шт.

17

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- special lock

4шт.

18

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

12шт.

19

1338669C2

DUCT

- right drum front

1шт.

20

1339277C2

DUCT

- drum rear

2шт.

21

1288504C1

SPACER

PLATE - spacer

2шт.

22

NSS

NOT SOLD SEPARAT

HOSE - 5 inch diameter air, 31 inch long (Order 1349877C1, Serial Range: cut-length)

2шт.

23

NSS

NOT SOLD SEPARAT

HOSE - 5 inch diameter air, 35 inch long (Order 1349877C1, Serial Range: cut-length)

2шт.

1349877C1

HOSE,25.00"

- air, bulk length

1шт.

24

182088H1

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

CLAMP - hose, no. 80 type F

8шт.

25

238-6428

O-RING,0.275" Thk x 4.85" ID, -428, Cl 6, 90 Duro

- 4-7/8 ID x 1/4 inch wide

4шт.

26

1338691C1

ANGLE

SUPPORT - duct

2шт.
