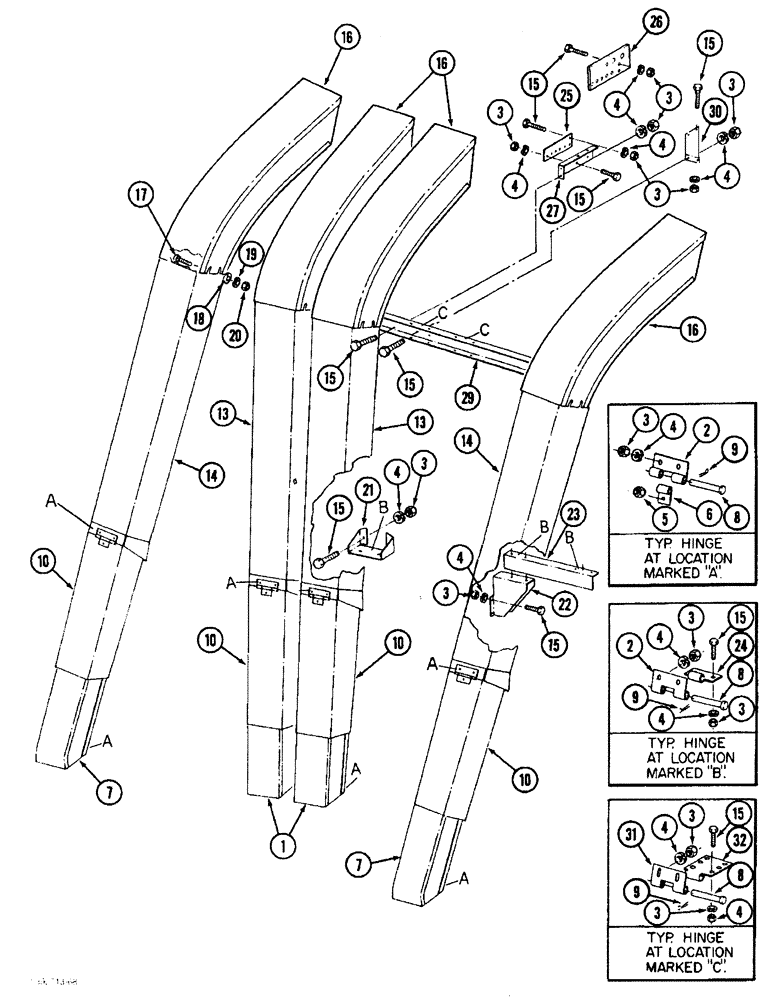

Запчасти Case IH 1822 (9B-24) - CONVEYOR CHUTES, 1822 COTTON PICKER (15) - HANDLING SYSTEM

1

1278534C1

TUBE

CHUTE - lower slide, rear

2шт.

2

220402C1

HINGE

- chute

12шт.

3

425-106

NUT,3/8"-16, Cl 5

72шт.

4

492-11038

LOCK WASHER,3/8"

72шт.

5

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

8шт.

6

1270014C1

HINGE

- short

8шт.

7

1278539C1

TUBE

CHUTE - lower slide, front

2шт.

8

1262749C1

HEADED PIN

PIN - headed, hinge

16шт.

9

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

16шт.

10

1278546C2

CHUTE ASSY.

CHUTE - upper slide

4шт.

13

1982237C3

CHUTE (DOWNWARD)

CHUTE - main, inner

2шт.

14

1338913C2

CHUTE (DOWNWARD)

CHUTE - main, outer

2шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

48шт.

16

1338916C1

PIPE, EXHAUST SYSTEM

HOOD - single chute

4шт.

17

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

16шт.

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

16шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

16шт.

20

120376

NUT,5/16"-18, G5

16шт.

21

1278617C1

SUPPORT

- rear, chute hinge

2шт.

22

1278620C1

SUPPORT

BRACKET - front, chute support

2шт.

23

1329312C2

ANGLE BAR

BRACKET - front, chute support

2шт.

24

1278616C1

HINGE

- short

4шт.

25

1278640C1

LARGE PLATE

PLATE - chute, support

1шт.

26

1338925C1

SUPPORT

BRACKET - basket supply hose

1шт.

27

1278641C1

ANGLE BAR

BRACKET - upper chute support, left

1шт.

27

1278642C1

ANGLE BAR

BRACKET - upper chute support, right

1шт.

29

1278644C1

CHANNEL

- chute support

1шт.

30

1278645C1

SUPPORT

BRACE - upper channel support, left

1шт.

30

1278646C1

SUPPORT

BRACE - upper channel support, right

1шт.

31

1278647C1

HINGE

- slotted

4шт.

32

1278648C1

HINGE

- adjustable

4шт.

35

1338910C1

ANGLE BAR

BRACKET - outer hinge support

2шт.

36

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

37

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, hardened

4шт.

38

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.
