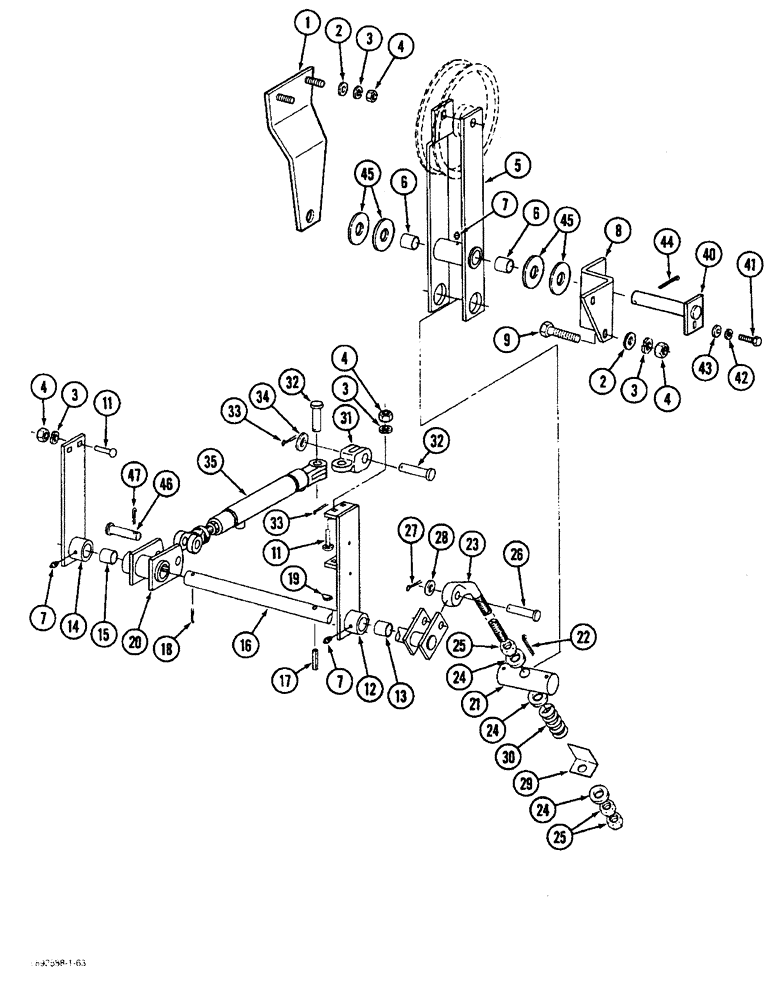

Запчасти Case IH 1822 (9B-22) - REAR FAN PULLEY LINKAGE (15) - HANDLING SYSTEM

1

1329451C1

SUPPORT

PLATE - pivot support

1шт.

2

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

3

492-11038

LOCK WASHER,3/8"

8шт.

4

131-1216

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

8шт.

5

87795C1

ARM

ASSEMBLY - idler

1шт.

6

87800C1

BUSHING,25.53mm ID x 31.81mm OD x 38.1mm L

- arm

2шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

3шт.

8

1338544C2

SUPPORT

- pulley mount

1шт.

9

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

11

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

6шт.

12

87797C1

ARM

SUPPORT ASSEMBLY - pivot shaft rear

1шт.

13

87800C1

BUSHING,25.53mm ID x 31.81mm OD x 38.1mm L

- support

1шт.

14

87798C1

ARM

SUPPORT ASSEMBLY - pivot shaft front

1шт.

15

87800C1

BUSHING,25.53mm ID x 31.81mm OD x 38.1mm L

- support

1шт.

16

1260106C1

SHAFT

- cylinder pivot

1шт.

17

577139R1

LOCK PIN,3/8" x 1 1/2", Slotted

Pin, 3/8" x 1 1/2", Slotted

1шт.

18

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

19

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

20

1260096C2

TUBE

- cylinder pivot

1шт.

21

1260189C1

PIVOT PIN

PIN - pivot rod

1шт.

22

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

23

1260092C1

STEM

ROD - fan pivot

1шт.

24

495-31081

WASHER,0.81" ID x 1.75" OD x 0.15" Thk

- flat, 13/16 x 1-3/4 x 1/8 inch

3шт.

25

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

3шт.

26

21591R1

HEADED PIN,1/2" x 1 3/4"

PIN - headed, 1/2 x 1-3/4 inch

1шт.

27

432-1216

COTTER PIN,3/16" x 1"

1шт.

28

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

29

1339330C1

ANGLE BAR

BRACKET - spring

1шт.

30

1266337C1

SPRING

- 1 inch ID

1шт.

31

1278703C1

CLEVIS

PIVOT - cylinder mounting

1шт.

32

138087

CLEVIS PIN,5/8" x 1.610"

PIN - clevis, 5/8 x 1-5/8 inch

1шт.

33

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

34

25976R1

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/64 inch

1шт.

35

REF

INSTRUCTION

CYLINDER - fan clutch (See Page 8-43)

1шт.

40

1329435C2

PIVOT

- fan idler

1шт.

41

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

42

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

43

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

44

32-828

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

45

495-21106

WASHER,1"

- flat, 1-1/16 x 2-1/2 x 9/64 inch

14шт.

46

28196R1

SPLIT PIN/SAFETY PIN

PIN - clevis, 5/8 x 2-1/4 inch

1шт.

47

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.
