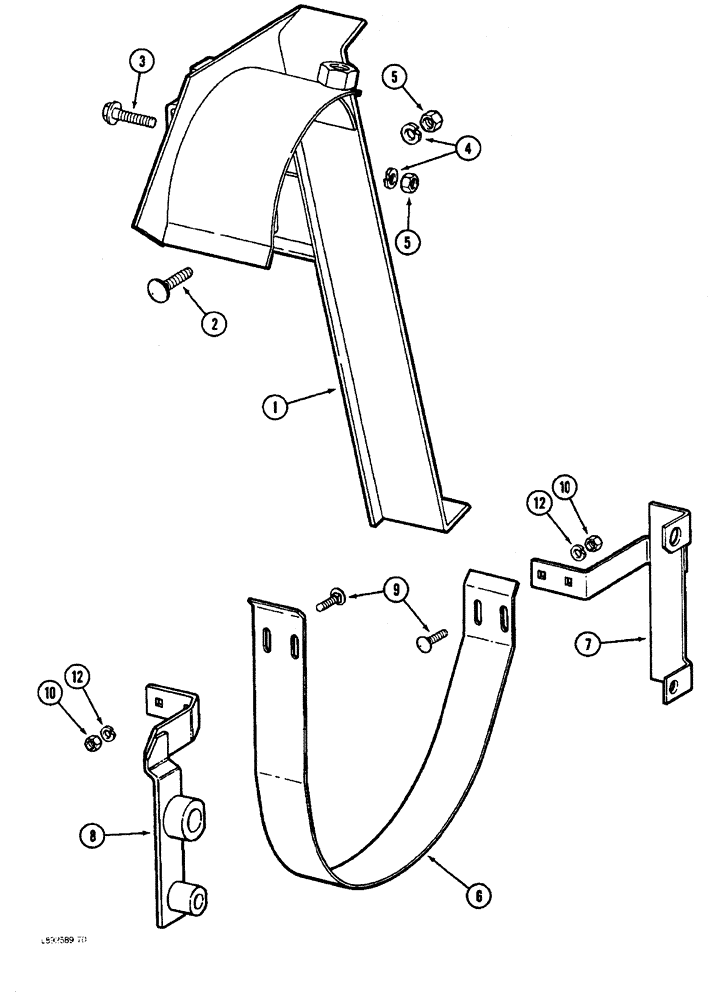

Запчасти Case IH 1822 (9B-20) - PULLEY GUARDS (15) - HANDLING SYSTEM

1

1329224C2

SHIELD

GUARD - fan pulley

1шт.

2

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

4шт.

3

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

- hex flange, 5/16 x 1-1/4 inch

1шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

5шт.

6

1338649C3

GUIDE

GUARD - fan pulley

1шт.

7

1338647C1

SUPPORT

BRACKET - guard, right

1шт.

8

1285481C5

BRACKET

- guar, left

1шт.

9

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - carriage, 1/4 NC x 3/4 inch

4шт.

10

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

12

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
