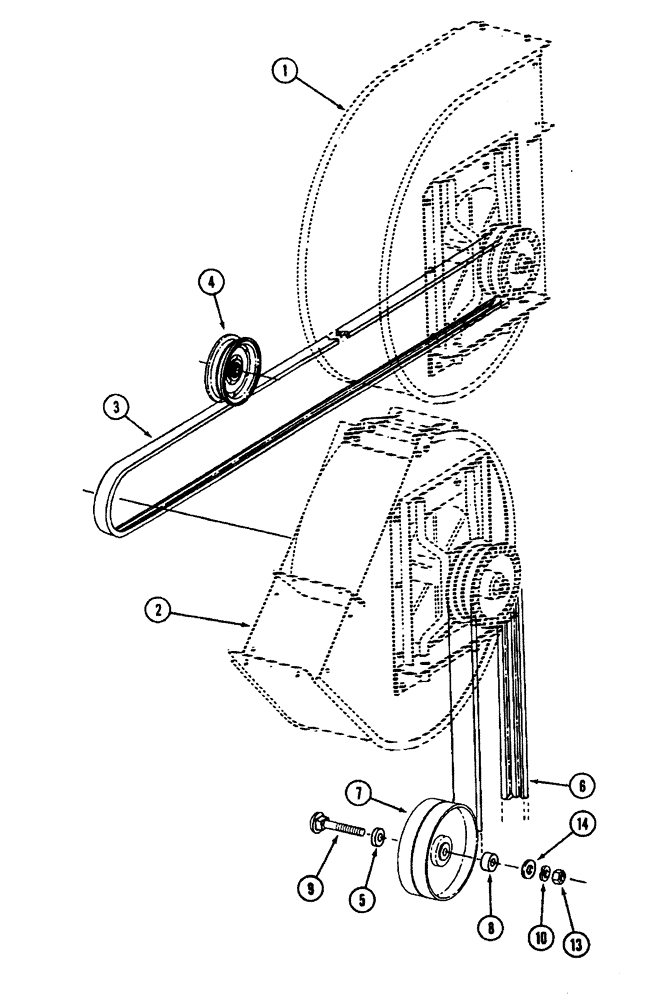

Запчасти Case IH 1822 (9B-14) - FAN DRIVE (15) - HANDLING SYSTEM

1

REF

INSTRUCTION

FAN ASSEMBLY - front (See Page 9B-9)(1844 Cotton Picker)

1шт.

2

REF

INSTRUCTION

FAN ASSEMBLY - rear (See Page 9B-13)(1844 Cotton Picker)

1шт.

2

REF

INSTRUCTION

FAN ASSEMBLY - (See Page 9B-7)(1822 Cotton Picker)

1шт.

3

1260258C2

V-BELT,1189.47 mm L, 2 Ribs

Fan Drive, Middle, 46-13/16 inch on center, 1844 Cotton Picker, If Equipped 1189.47 mm L, 2 Ribs

1шт.

3

1338328C1

V-BELT,12.45 mm W x 1223.87 mm L

Fan Drive, Front 1844 Cotton Picker, P.I.N. JJC0002560 and After 12.45 mm W x 1223.87 mm L

1шт.

4

219617C1

PULLEY

- idler, 5-3/4 inch diameter (1844 Cotton Picker) (Prior to P.I.N. JJC0002560)

1шт.

5

1278050C1

SPACER

- front idler pulley

1шт.

6

1288899C3

V-BELT,16.00 mm W x 1871.22 mm L, 3 Ribs

Fan Drive, Replaces 1288900C3 16.00 mm W x 1871.22 mm L, 3 Ribs

1шт.

7

187388C91

PULLEY

- fan engage idler, 8 inch diameter

1шт.

8

1278051C1

SPACER

- rear idler pulley

1шт.

9

598822R1

BOLT

BOLT - round head square neck, 5/8 NC x 3-3/4 inch

1шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

13

425-1010

NUT,5/8"-11, G5

1шт.

14

495-81052

WASHER,0.91" ID x 1.25" OD x 0.12" Thk

- flat, 29/32 x 1-1/4 x 7/64 inch

1шт.
