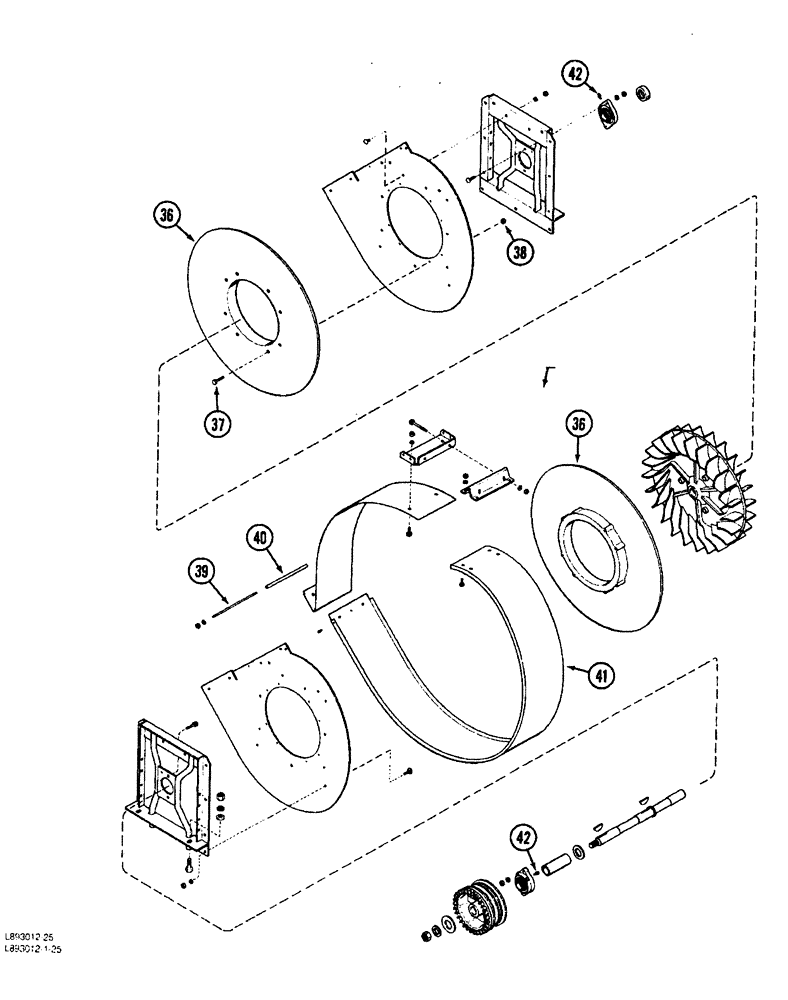

Запчасти Case IH 1822 (9B-06) - FAN, 1822 COTTON PICKER (15) - HANDLING SYSTEM

REF

INSTRUCTION

FAN ASSEMBLY

1шт.

36

207515C1

BAFFLE

- fan

2шт.

37

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

16шт.

38

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

16шт.

39

215709C1

STUD

- fan housing connector

1шт.

40

215020C1

PIPE

- fan housing

1шт.

41

221533C1

COVER

- outer

1шт.

42

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (For machines without centralized chassis grease system) 1/4"-28 NPT x .54" lg

2шт.
