Запчасти Case IH 1822 (9A-142) - DRUM CHAIN OILER (14) - WATER SYSTEM

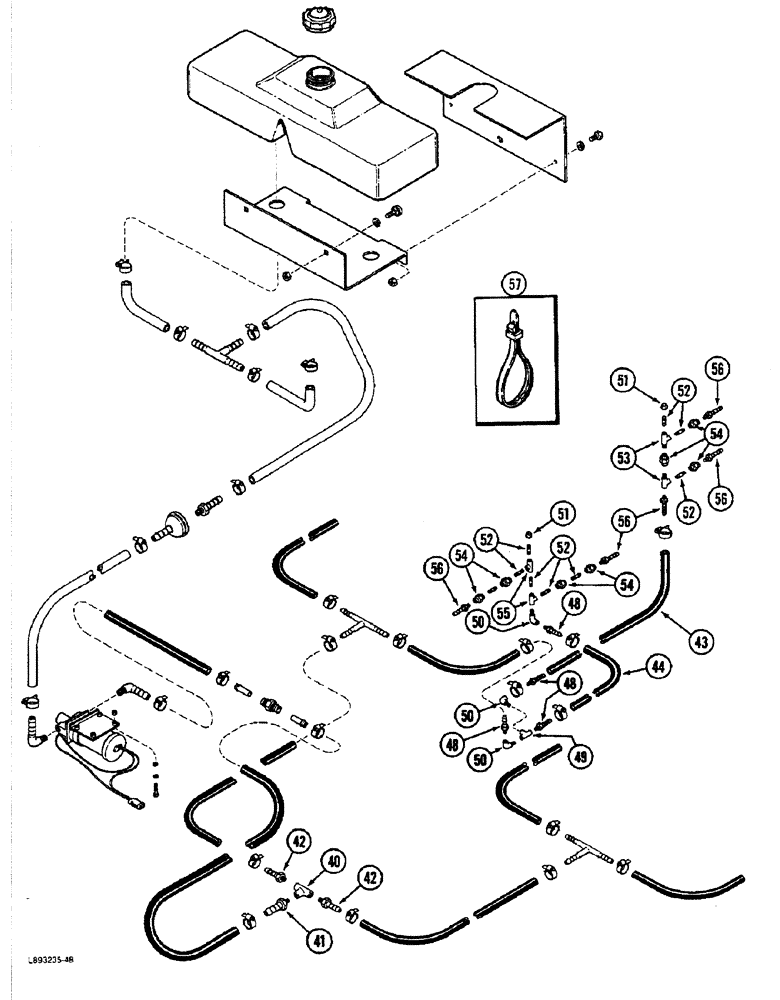

Схема запчастей Case IH 1822 - (9A-142) - DRUM CHAIN OILER (14) - WATER SYSTEM
48
52
42
48
51
55
50
44
52
57
52
54
52
51
49
43
42
50
54
56
40
54
56
53
41
48
56
50
56

Артикул

Название

Примечание

Количество

40

444122

TEE,3/8"-18 NPTF Fem

- 3/8-18 inch PT

1шт.

41

217-123

FITTING,1/2" Hose Barb x 3/8" Male NPTF

CONNECTOR - barbed, 1/2 x 3/8 inch

1шт.

42

217-113

ROD, CONNECTING

FITTING - barbed, 1/4 inch x 3/8 PT

2шт.

43

NSS

NOT SOLD SEPARAT

HOSE - front oil outlet, 44 inch long (Order 1982352C1, cut to length)(1822 Cotton Picker)

2шт.

43

NSS

NOT SOLD SEPARAT

HOSE - front oil outlet, 44 inch long (Order 1982352C1, cut to length)(1844 Cotton Picker)

4шт.

44

NSS

NOT SOLD SEPARAT

HOSE - rear oil outlet, 28 inch long (Order 1982352C1, cut to length)(1822 Cotton Picker)

2шт.

44

NSS

NOT SOLD SEPARAT

HOSE - rear oil outlet, 28 inch long (Order 1982352C1, cut to length)(1844 Cotton Picker)

4шт.

48

217-120

ELBOW,1/4" Hose Barb x 1/8" Male NPTF

FITTING - barb, straight, 1/4 inch hose ID x 1/8 PT, Brass

1шт.

49

9409935

TEE,1/8"-27 NPTF Fem

- 1/8-27 inch PT

1шт.

50

9409931

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

- 90 degree pipe, 1/8 inch PT

1шт.

51

105410

CAP,1/8" NPT

- 1/8 inch PT

1шт.

52

105404

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - 1/8 x 3/4 inch PT

1шт.

53

9409943

TEE,1/8"-27 NPTF Fem x 1/8"-27 NPTF Male Run

- 1/8-27 inch PT

1шт.

54

444094

COUPLING,1/8"-27, Brass

- 1/8 inch PT

1шт.

55

217-1160

TEE,1/8"-27 Female

- 1/8 PT

1шт.

56

1338129C1

NIPPLE, LUBE

NIPPLE - special, 1/4 inch

1шт.

57

289862C1

CABLE TIE,3/16" x 7"

STRAP - hose retaining

20шт.

Выбрано товаров: 17
