Запчасти Case IH 1822 (9A-136) - WATER VALVE SYSTEM (14) - WATER SYSTEM

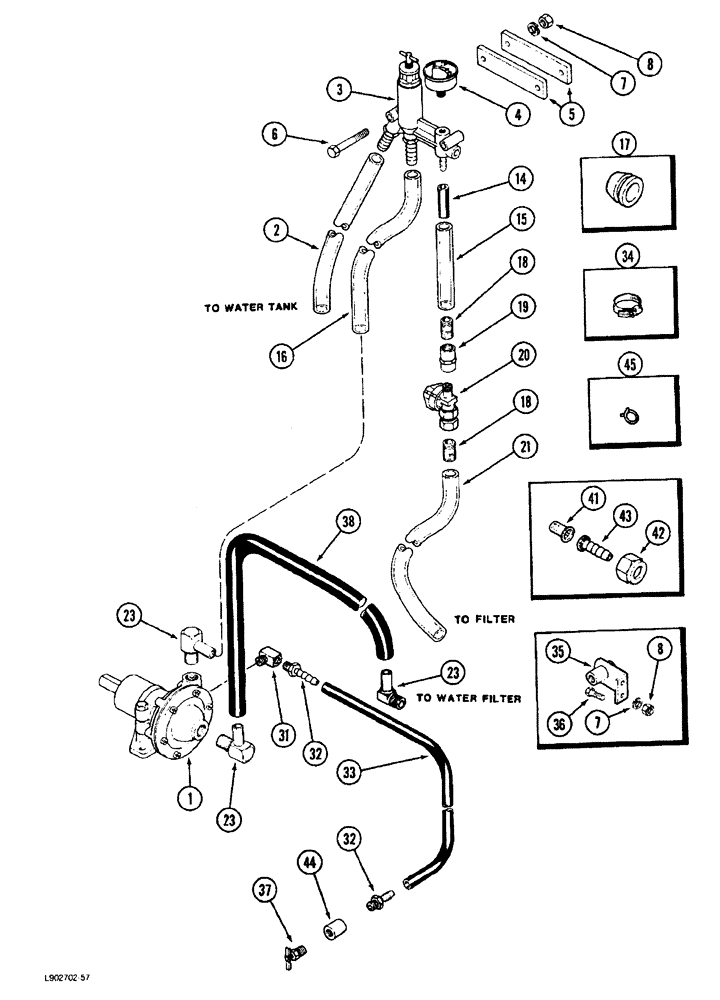

Схема запчастей Case IH 1822 - (9A-136) - WATER VALVE SYSTEM (14) - WATER SYSTEM
8
32
5
41
18
35
7
18
19
34
21
8
42
6
23
16
45
14
2
3
33
23
1
36
7
4
15
23
43
38
20
32
44
37
17
31

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSEMBLY - water (See Page 9A-139)

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - valve to tank, 80 inch (If equipped) (Order 665181R1, cut to length)(1844 Cotton Picker)

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - valve to tank, 112 inch (Order 665181R1, cut to length)(1844 Cotton Picker)

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - valve to tank, 120 inch (If equipped) (Order 665181R1, cut to length)(1822 Cotton Picker)

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - valve to tank, 100 inch (Order 665181R1, cut to length)(1822 Cotton Picker)

1шт.

3

87202C1

SHUT-OFF VALVE

VALVE ASSEMBLY - water regulator

1шт.

4

87203C1

GAUGE

- water pressure

1шт.

5

87210C1

LARGE PLATE

BAR - spacer valve

2шт.

6

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

7

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

8

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

14

NSS

NOT SOLD SEPARAT

HOSE - adapter, 2 inch (If equipped) (Order 87769C1, Serial Range: cut-length)

1шт.

15

NSS

NOT SOLD SEPARAT

HOSE - 6 inch (Order 665181R1, cut to length)(If equipped)

1шт.

15

NSS

NOT SOLD SEPARAT

HOSE - 12 inch (Order 1982352C1, Serial Range: cut-length)

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE - water pump to regulator valve, 160 inch (If equipped) (Order 665181C1, Serial Range: cut-length)

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE - water pump to regulator valve, 130 inch (Order 665181C1, Serial Range: cut-length)

1шт.

17

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- hose

3шт.

18

1338695C1

FITTING

- barbed, 1/4 inch (Replaces 142745)

1шт.

19

444096

COUPLING,1/4"-18, Brass

- pipe, 1/4-18 inch

1шт.

20

1339011C1

CHECK VALVE

VALVE ASSEMBLY - check, 10 PSI

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE - regulator valve to water line tee, 100 inch (If equipped) (Order 665181R1, Serial Range: cut-length)

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE - regulator valve to water line tee, 160 inch (Order 1338159C1, Serial Range: cut-length)

1шт.

23

57964R1

FITTING

ELBOW - 90 degree

3шт.

31

9409931

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

- 90 degree street, 1/8-27 inch PT

1шт.

32

217-114

FITTING,3/8" Hose x 1/8" NPTF, Barbed

- barbed, 1/8 PT x 3/8 inch

1шт.

33

NSS

NOT SOLD SEPARAT

HOSE - water drain, 18 inch (If equipped) (Order 87769C1, Serial Range: cut-length)

1шт.

33

NSS

NOT SOLD SEPARAT

HOSE - water drain, 33 inch (Order 1338159C1, Serial Range: cut-length)

1шт.

34

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

12шт.

35

1329299C1

ANGLE

BRACKET ASSEMBLY - drain (If equipped)

1шт.

36

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

37

114981

VALVE

- drain cock, 1/8-27 inch pipe thread

1шт.

38

NSS

NOT SOLD SEPARAT

HOSE - pump to filter, 70 inch (Order 665181R1, Serial Range: cut-length)

1шт.

41

1339108C1

VALVE POPPET

VALVE - check

1шт.

42

1339129C1

NUT

CAP - nozzle

1шт.

43

1339130C1

FITTING

SHANK - hose

1шт.

44

187394

CONNECTOR, ELEC,1/8" NPT, Fem

COUPLING - pipe, 1/8 inch

1шт.

45

214-1312

HOSE CLAMP,#12, 3/4", Spring

CLAMP - hose, No. 12 Type E spring wire

2шт.

Выбрано товаров: 37
